By this *Try setting your Cpu/nb to 2400Mhz* you mean CPU Northbright Frequency below the multiplier? Because I once set that to 2600mhz and I had to manually reset cmos with the two pins
Yup that's the one chap. You don't have to it's just Bulldozer likes the HT Link frequency and Cpu/Northbridge frequency to be the same. just make sure to increase the Cpu/Northbridge voltage to about 1.200- 1.225. It shouldn't need to be any higher.
Ok will do so now, if I am not back right away, it means something went kaplooey and I will get on Ipad as I reset my rig lol. Ok I hope to be right back.
Computer type PC/Desktop System Manufacturer/Model Number Custom Build OS Windows 7 Ultimate x64 CPU FX 8350 @ 4.8ghz, turbo clocked to 5.4ghz Motherboard Asus Sabertooth FX990 Gen 3.0 R2.0 Memory Mushkin Enhanced Blackline 16GB 1760mhz 10-10-9-24 T1 Graphics Card Gigabyte-660 Windforce OC- GPU Clock 1212MHz /3504MHz ram Sound Card Creative Sound Blaster Recon3D PCIe Sound Card Monitor(s) Displays Samsung SyncMaster S27B350H (HDMI) Screen Resolution 1920x1080 60HZ
Keyboard Logitech G19 Mouse Wireless Notebook Presenter Mouse 8000 PSU Chieftec-650-14CS (Modular) 80 Plus Gold-650 Watt Case Akasa Venom Toxic Gaming Big tower ( Custom Black ) Ver 2.0 Cooling Water 2.0 PRO / GEIL Cyclone VRM / 6x120mm 2x220mm 2x140mm Hard Drives 1 x SSD Crucial M4 256GB (Primary OS)
3 x HDD WD 1TB
4 x HDD 2TB
1 x HDD 160GB (Secondary Backup OS)
Raid SATA III 6GB/s 4-port PCI-e Controller Card, Marvel 88SE9215 chipset Internet Speed Fiber GBS Antivirus Don't Announce it to the world :) Browser Gotta have at least 1!

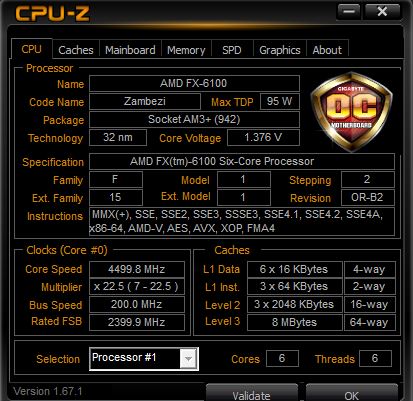

Ok I am back, nothing blew up. Here are the result pics. What should I change next I want to to attempt a 5gh oc? Also my cpu-z report a lower cpu voltage now, before it was always 1.4+. now its in the 1.3 category Here are the pics. Also I lowered the cpu voltage to [+.125] although I think I will go back and change it to [+.150] now that the experiment worked.
Computer type PC/Desktop System Manufacturer/Model Number Custom Build OS Windows 7 Ultimate x64 CPU FX 8350 @ 4.8ghz, turbo clocked to 5.4ghz Motherboard Asus Sabertooth FX990 Gen 3.0 R2.0 Memory Mushkin Enhanced Blackline 16GB 1760mhz 10-10-9-24 T1 Graphics Card Gigabyte-660 Windforce OC- GPU Clock 1212MHz /3504MHz ram Sound Card Creative Sound Blaster Recon3D PCIe Sound Card Monitor(s) Displays Samsung SyncMaster S27B350H (HDMI) Screen Resolution 1920x1080 60HZ
Keyboard Logitech G19 Mouse Wireless Notebook Presenter Mouse 8000 PSU Chieftec-650-14CS (Modular) 80 Plus Gold-650 Watt Case Akasa Venom Toxic Gaming Big tower ( Custom Black ) Ver 2.0 Cooling Water 2.0 PRO / GEIL Cyclone VRM / 6x120mm 2x220mm 2x140mm Hard Drives 1 x SSD Crucial M4 256GB (Primary OS)
3 x HDD WD 1TB
4 x HDD 2TB
1 x HDD 160GB (Secondary Backup OS)
Raid SATA III 6GB/s 4-port PCI-e Controller Card, Marvel 88SE9215 chipset Internet Speed Fiber GBS Antivirus Don't Announce it to the world :) Browser Gotta have at least 1!
I think the best bet maybe to start a new thread chap as we've gone off topic slightly and then pm me think link if you like.
I take it you haven't run any stress test? Make sure it's stable and if so just raise the cpu multiplier untill unstable and then the the vcore untill stable again.
Ok I am back, changed the cpu voltage to [+.150] and cpu-z still reports around 1.35v on idle, and I ran some quick aida64 benchmarks for cpu and ram and results were much much higher than normal. Not so cranky now.
Computer type PC/Desktop System Manufacturer/Model Number Custom Build OS Windows 7 Ultimate x64 CPU FX 8350 @ 4.8ghz, turbo clocked to 5.4ghz Motherboard Asus Sabertooth FX990 Gen 3.0 R2.0 Memory Mushkin Enhanced Blackline 16GB 1760mhz 10-10-9-24 T1 Graphics Card Gigabyte-660 Windforce OC- GPU Clock 1212MHz /3504MHz ram Sound Card Creative Sound Blaster Recon3D PCIe Sound Card Monitor(s) Displays Samsung SyncMaster S27B350H (HDMI) Screen Resolution 1920x1080 60HZ
Keyboard Logitech G19 Mouse Wireless Notebook Presenter Mouse 8000 PSU Chieftec-650-14CS (Modular) 80 Plus Gold-650 Watt Case Akasa Venom Toxic Gaming Big tower ( Custom Black ) Ver 2.0 Cooling Water 2.0 PRO / GEIL Cyclone VRM / 6x120mm 2x220mm 2x140mm Hard Drives 1 x SSD Crucial M4 256GB (Primary OS)
3 x HDD WD 1TB
4 x HDD 2TB
1 x HDD 160GB (Secondary Backup OS)
Raid SATA III 6GB/s 4-port PCI-e Controller Card, Marvel 88SE9215 chipset Internet Speed Fiber GBS Antivirus Don't Announce it to the world :) Browser Gotta have at least 1!

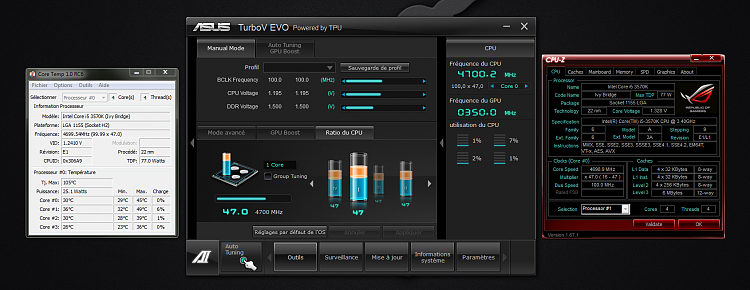

I'm posting (not for leaderboard right now) my Ivy B i5 "K" at 4,7GHz and it does looks stable at the moment...but i want to validate at 4,8GHz, so waiting further experiments.
See you soon!
Second screenshot i'm booting fine within the O.S at 4,8GHz..... This mid-range motherboard begins to impress me!
Computer type PC/Desktop System Manufacturer/Model Number Custom Build OS Windows 7 Professional SP1 - x64 [Non-UEFI Boot] CPU Ivy Bridge Core i5 3570K (Delidded) Motherboard Asus P8Z77-V LE PLUS Memory G.Skill "Ares" DDR3 PC3-12800 - 1600MHz (16Gb) Graphics Card Asus Dual-RX480-O4G Sound Card Creative Sound Blaster Z w/5.1 sound system Monitor(s) Displays Asus Led 21,5" Screen Resolution 16/9
Keyboard Cooler Master QuickFire XTi Mouse Razer Imperator 2012 (4G) PSU In Win C 900W Series 80+ Platinum Case Thermaltake Chaser A71 Cooling Custom Water Cooling Loop Hard Drives Internal:
500Go Sata 6Gb/s (x2)
500Go Sata 3Gb/s (x2)
SSD 60Go Sata 6Gb/s Antivirus MSE Browser IE 11.0.37 Rtm Other Info "Raid0" with Intel Smart Response Technology (HDD/SSD) - GPU Virtualization (iGpu + dGPU)
This is my 4th CPU-Z validation heading to 4,8GHz...
Those are bios settings, no TurboV Evo boost.
4,8GHz in Bios set to Extreme w/T.Probe:
Offset Mode: + (0.195),
Core Voltage: 1.392 to 1.384 seen in CPU-Z v1.67.1,
Temps: below 95°C in CoreTemp RC6,
Write cache disable on all Hard Drives excepting SSD Caching drive
CPU fixed Freq: 200MHz
DRAM Fixed Freq: 450MHz
Computer type PC/Desktop System Manufacturer/Model Number Custom Build OS Windows 7 Professional SP1 - x64 [Non-UEFI Boot] CPU Ivy Bridge Core i5 3570K (Delidded) Motherboard Asus P8Z77-V LE PLUS Memory G.Skill "Ares" DDR3 PC3-12800 - 1600MHz (16Gb) Graphics Card Asus Dual-RX480-O4G Sound Card Creative Sound Blaster Z w/5.1 sound system Monitor(s) Displays Asus Led 21,5" Screen Resolution 16/9
Keyboard Cooler Master QuickFire XTi Mouse Razer Imperator 2012 (4G) PSU In Win C 900W Series 80+ Platinum Case Thermaltake Chaser A71 Cooling Custom Water Cooling Loop Hard Drives Internal:
500Go Sata 6Gb/s (x2)
500Go Sata 3Gb/s (x2)
SSD 60Go Sata 6Gb/s Antivirus MSE Browser IE 11.0.37 Rtm Other Info "Raid0" with Intel Smart Response Technology (HDD/SSD) - GPU Virtualization (iGpu + dGPU)
Computer type PC/Desktop System Manufacturer/Model Number CoreI7-6700K MrFingerIII Special Builds OS Windows 10 Home Premium 64bit sp1 CPU Intel I7-6700K @ 4.6 Ghz 1.344 volts everyday OC Motherboard Asrock Fatality K6 Z170 Socket 1151 Memory 32GB G-Skill TridentZ 3200mhz 16-18-18-38 DDR4 Graphics Card Sli Gigabyte Windforce GTX 980 G1 Sound Card AC97 Creative Rage Tactic 3D Headphones Bluetooth Monitor(s) Displays 27" Asus ROG Swift PG278Q G-Sync 48" Vizio Smart HD TV Screen Resolution 2560x1440p 27"- 48" Currently Gaming at 2560x1440p Res 2K
Keyboard Logitech wireless keyboard Mouse Logitech wireless mouse PSU HX1050w Corsair Silver 80plus certified crosfire/sli Case Enthod Pro Full Tower Cooling Corsair H110i GT 280 mm High Performance WaterBlock Hard Drives 250GB Samsung Evo840SSD Seagate baracuda 500 GB WD Mybook 500Gb 1TB Seagate Barracuda Internet Speed Cox Cable 100+ mb Antivirus WebRoot Spysweeper with Antivirus Browser IE-10, Chrome, Opera Other Info My Other Rig is a AMD FX8320E @4.6Ghz 16GB Ballistic Sport Ram
Mobo Asrock Fatality 990FX 120GB OCZ SSD 1TB Seagate Barracuda Corsair H75 Cooling PSU Corsair CX750
GPU GTX Gigabyte 970G1
I though Oc'ing through EVO you needed to group them and tune together correct me if I am wrong I think that is how I did mine
Hi!
I'm not OC'ing with TurboV Evo that's why i didn't group all cores. Of course i could have done that too!
That's pure bios settings at the moment.
But anyway hitting the 95°celsius is the limit i want to reach...so this might be one of my last OC'ing with that motherboard, unless i try TurboV Evo to make it at 4,8GHz more round!!!
Computer type PC/Desktop System Manufacturer/Model Number Custom Build OS Windows 7 Professional SP1 - x64 [Non-UEFI Boot] CPU Ivy Bridge Core i5 3570K (Delidded) Motherboard Asus P8Z77-V LE PLUS Memory G.Skill "Ares" DDR3 PC3-12800 - 1600MHz (16Gb) Graphics Card Asus Dual-RX480-O4G Sound Card Creative Sound Blaster Z w/5.1 sound system Monitor(s) Displays Asus Led 21,5" Screen Resolution 16/9
Keyboard Cooler Master QuickFire XTi Mouse Razer Imperator 2012 (4G) PSU In Win C 900W Series 80+ Platinum Case Thermaltake Chaser A71 Cooling Custom Water Cooling Loop Hard Drives Internal:
500Go Sata 6Gb/s (x2)
500Go Sata 3Gb/s (x2)
SSD 60Go Sata 6Gb/s Antivirus MSE Browser IE 11.0.37 Rtm Other Info "Raid0" with Intel Smart Response Technology (HDD/SSD) - GPU Virtualization (iGpu + dGPU)
I though Oc'ing through EVO you needed to group them and tune together correct me if I am wrong I think that is how I did mine
Hi!
I'm not OC'ing with TurboV Evo that's why i didn't group all cores. Of course i could have done that too!
That's pure bios settings at the moment.
But anyway hitting the 95°celsius is the limit i want to reach...so this might be one of my last OC'ing with that motherboard, unless i try TurboV Evo to make it at 4,8GHz more round!!!
you limit it to 95c gees I am playing it major safe then I never let mine get above 85c I get a panic attack when I see it turn yellow on Core temp running IBT lol lol lol
