Home Network

[seekermeister]

Can you plaease summarise what's happenning and what needs to happen?

Both pc are wired to the router, so the next logical question is ware they pingable from one another. You're not a noob seekermeister, sorry if it's a dumb question, but i need to get pasted it.

When it comes to networking, I'm about as noob as one can get. I have already posted what is happening as far as I know, and if I knew exactly what needs to happen, I probably wouldn't need to ask questions.

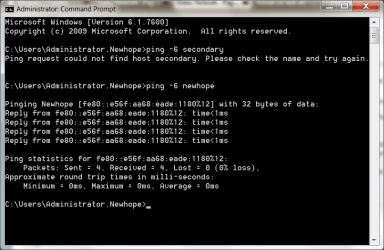

So far as pinging goes, I tried what I found in another thread and ran ping -6 computername in a prompt from the primary computer. When I ran the primary name, it quickly listed results that appeared good. When I ran the secondary's name, it said that it could not find it.

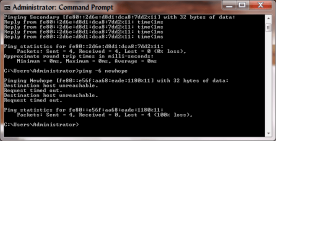

EDIT: Running the same prompts on the secondary, it had the same result pinging itself, but when pinging the primary it said that the destination was unreachable.



[aem]

Well that doesn't add up at all. Both machines are on the same network, and yet only one can ping the other.

Can we see the ipconfig /all details of both machines? Lets disgards all firewall possibilities at the moment.



[seekermeister]

Well that doesn't add up at all. Both machines are on the same network, and yet only one can ping the other.

Can we see the ipconfig /all details of both machines? Lets disgards all firewall possibilities at the moment.

This is from the primary:

Microsoft Windows [Version 6.1.7600]
Copyright (c) 2009 Microsoft Corporation. All rights reserved.

C:\Users\Administrator.xxxxxxx>ipconfig /all

Windows IP Configuration

Host Name . . . . . . . . . . . . : xxxxxxx
Primary Dns Suffix . . . . . . . :
Node Type . . . . . . . . . . . . : Hybrid
IP Routing Enabled. . . . . . . . : No
WINS Proxy Enabled. . . . . . . . : No
DNS Suffix Search List. . . . . . : ok.cox.net

Ethernet adapter Local Area Connection 2:

Connection-specific DNS Suffix . : ok.cox.net
Description . . . . . . . . . . . : Marvell Yukon 88E8053 PCI-E Gigabit Ether
net Controller
Physical Address. . . . . . . . . : 00-15-F2-DB-4D-85
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::e56f:aa68:eade:1180%12(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.1.172(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Lease Obtained. . . . . . . . . . : Monday, January 25, 2010 4:43:41 PM
Lease Expires . . . . . . . . . . : Tuesday, January 26, 2010 4:43:41 PM
Default Gateway . . . . . . . . . : 192.168.1.1
DHCP Server . . . . . . . . . . . : 192.168.1.1
DHCPv6 IAID . . . . . . . . . . . : 301995506
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-12-75-3B-89-00-E0-18-99-88-77

DNS Servers . . . . . . . . . . . : 8.8.8.8
8.8.4.4
NetBIOS over Tcpip. . . . . . . . : Enabled

Tunnel adapter isatap.ok.cox.net:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . : ok.cox.net
Description . . . . . . . . . . . : Microsoft ISATAP Adapter
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes

Tunnel adapter Local Area Connection* 12:

Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Teredo Tunneling Pseudo-Interface
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
IPv6 Address. . . . . . . . . . . : 2001:0:4137:9e50:42d:7d0e:9d4d:55e6(Prefe
rred)
Link-local IPv6 Address . . . . . : fe80::42d:7d0e:9d4d:55e6%14(Preferred)
Default Gateway . . . . . . . . . : ::
NetBIOS over Tcpip. . . . . . . . : Disabled



[seekermeister]

A thought just ran through my head. I have the primary set to use Google's DNS server, and the secondary set to use Cox's DNS server. Would this make a difference?



[chev65]

You will need to use different user names, or I should say that when I used the same user name I couldn't see the other machine. Supposidly the workgroup name doesn't matter for Homegroups but I would set both machines with the same workgroup name.

I would use the same server. I'm not too sure why you need two? Both machines need to be connected by a router using the same modem with the same ISP. It sounds like you are getting the internet from two different sources, but the screens looks like cox only to me.



[seekermeister]

Forgot to give it for the scondary. Hre it is:

Microsoft Windows [Version 6.1.7600]
Copyright (c) 2009 Microsoft Corporation. All rights reserved.

C:\Users\Administrator>ipconfig /all

Windows IP Configuration

Host Name . . . . . . . . . . . . :xxxxxxxxxx
Primary Dns Suffix . . . . . . . :
Node Type . . . . . . . . . . . . : Hybrid
IP Routing Enabled. . . . . . . . : No
WINS Proxy Enabled. . . . . . . . : No
DNS Suffix Search List. . . . . . : ok.cox.net

Ethernet adapter Local Area Connection:

Connection-specific DNS Suffix . : ok.cox.net
Description . . . . . . . . . . . : NVIDIA nForce Networking Controller
Physical Address. . . . . . . . . : 04-4B-80-80-80-03
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::2d6e:d8d1:dca8:7dd2%11(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.1.155(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Lease Obtained. . . . . . . . . . : Monday, January 25, 2010 2:18:15 PM
Lease Expires . . . . . . . . . . : Tuesday, January 26, 2010 2:18:15 PM
Default Gateway . . . . . . . . . : 192.168.1.1
DHCP Server . . . . . . . . . . . : 192.168.1.1
DHCPv6 IAID . . . . . . . . . . . : 235162496
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-12-E5-9A-C7-04-4B-80-80-80-03

DNS Servers . . . . . . . . . . . : 68.105.28.12
68.105.29.12
68.105.28.11
NetBIOS over Tcpip. . . . . . . . : Enabled

Tunnel adapter isatap.ok.cox.net:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . : ok.cox.net
Description . . . . . . . . . . . : Microsoft ISATAP Adapter
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes

Tunnel adapter Local Area Connection* 9:

Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Teredo Tunneling Pseudo-Interface
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
IPv6 Address. . . . . . . . . . . : 2001:0:4137:9e50:2c35:72b0:9d4d:55e6(Pref
erred)
Link-local IPv6 Address . . . . . : fe80::2c35:72b0:9d4d:55e6%13(Preferred)
Default Gateway . . . . . . . . . : ::
NetBIOS over Tcpip. . . . . . . . : Disabled



[seekermeister]

You will need to use different user names, or I should say that when I used the same user name I couldn't see the other machine. Supposidly the workgroup name doesn't matter for Homegroups but I would set both machines with the same workgroup name.

I would use the same server. I'm not too sure why you need two? Both machines need to be connected by a router using the same modem with the same ISP. It sounds like you are getting the internet from two different sources? This was never mentioned before.

I make the changes, but it is not that Ihave different sources, it's just that I never got around to applying the Google DNS on the secondary. They are both on the same router, using the same ISP.



[chev65]

Hmm well they should be able to at least ping each other, sounds like a firewall or something might be blocking it. Maybe resetting the router might help.

I hope there are no anti virus's involved LOL. I just know a third party program must be involved here. Try using different user names.



[aem]

Those IPs look as good as they can be, and are sufficient for the machines to ping one another (you only need the IP, subnet and gateway). You only need to worry about DNS and the others if you want to connect to the internet.

Now lets figure out why one cannot ping the other. This is purely networking, and firewall is part of it.

I would see if i can pick out a difference in settings between the two PCs. Try it.

Btw, have you tried assiging static IPs to them?



[seekermeister]

Rethinking what I said, in a sense they do have different names. Since I'm logged into the built in administrator account on both machines, the account is administrator for both, but with the computer name attached to each. My regular accounts have the same name, but since I'm not logged into them, that shouldn't be an issue...should it?

EDIT: I changed the user accounts name, but the administrator account's name is the same in both computers. I guess administrator is just administrator.



[seekermeister]

Those IPs look as good as they can be, and are sufficient for the machines to ping one another (you only need the IP, subnet and gateway). You only need to worry about DNS and the others if you want to connect to the internet.

Now lets figure out why one cannot ping the other. This is purely networking, and firewall is part of it.

I would see if i can pick out a difference in settings between the two PCs. Try it.

Btw, have you tried assiging static IPs to them?

No, I have dynamic settings for both. I'm under the impression that I would have to get static IPs assigned by the ISP...true?

I have no idea of what you mean by "pick out a difference in settings between the two PCs". I would need you to clarify to do so.



[aem]

No need to talk about accounts just yet man, you got a ping issue. Have you tried using static ip for your tcp/ipv4?



[chev65]

You should be doing this with the regular user accounts that already have admin privliges. I don't even know if Homegroups works the same with the built in Admin account or not.
The fact that you can't ping the other machine is very strange.

I would reset the router, static IP's should not be needed, DHCP should be working fine. You can assign static IP's manually in the router control panel but I don't see how that would help unless there is something very wrong with the router.



[seekermeister]

No need to talk about accounts just yet man, you got a ping issue. Have you tried using static ip for your tcp/ipv4?

I answered this question in post #38, and followed it with a question of my own.



[aem]

He's already got good DHCP details but it aint working, so assigning static IP to the problematic machine for testing would be a goer.

You should have to change the router's settings as it is fine (for now).



[seekermeister]

I exited the firewall on both rigs (Outpost) and I was able to ping the secondary from the primary, but still couldn't ping the primary from the secondary. It appears that there is at least two aspects to this issue.



[seekermeister]

He's already got good DHCP details but it aint working, so assigning static IP to the problematic machine for testing would be a goer.

You should have to change the router's settings as it is fine (for now).

Perhaps, but it isn't going anywhere, unless you answer my question regarding assigning static IPs.



[chev65]

Firewall, hmm you may need to uninstall that. Obviously a firewall would cause all problems listed so far. :sarc: Static IP's won't matter but the firewall does. All A/V's and firewalls are the scourge of Homegroup networking.

A/V's cause problems so often I can't keep track of which ones are the worst. It's always best to set up your network and make sure it's working then install the A/V and check to see that the network is still up and running.

AVG, and ZoneAlarm are the two biggest problems for Homegroups but most any thing with a firewall will cause problems unless you set up exceptions in the firewall accordingly.



[seekermeister]

I just realized that I made a mistake when I last pinged the primary from the secondary, so I repeated the test with the firewall disabled, and it then pinged okay, so obviously, the obstacle is Outpost. Unless someone here knows the firewall well enough to help me tweak it for networking, I will have to post on the Outpost Forum for help. Generally, while their support is good, it is also quite slow, so I hope someone here knows the firewall. I do not want to have to use the Windows firewall.



[chev65]

I just realized that I made a mistake when I last pinged the primary from the secondary, so I repeated the test with the firewall disabled, and it then pinged okay, so obviously, the obstacle is Outpost. Unless someone here knows the firewall well enough to help me tweak it for networking, I will have to post on the Outpost Forum for help. Generally, while their support is good, it is also quite slow, so I hope someone here knows the firewall. I do not want to have to use the Windows firewall.

At this point if you want Homegroups to work you will need to uninstall that firewall. I had no idea you were using one, if I did it would have been the first thing to go.

I have zero problems with Windows firewall. You can always try to install outpost again and create the exceptions after you have Homegroups up and running.
