why did the battery companies shorten AA terminals?

Diosoth

New member
Guru
Local time
1:54 PM
Messages
451
Most people probably wouldn't have noticed this but sometime last year I caught on that the positive terminals on AA batteries of various brands were shortened slightly. New batteries failed to operate my facial hair trimmer at all but old batteries would still work it. Comparing them I found the newer batteries did have shorter terminals which weren't making contact with the metal inside the compartment. These are Duracell batteries, not some cheap brand. The workaround involved inserting folded strips of aluminum. It just seems a very needless thing to do to battery design, since there is a chance of affecting contact inside certain devices.


My Computer My Computer

At a glance

Windows 7 Home Premium x64Intel Pentium Dual Core 2.6 GHz6 GBstock factory for this model
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Gateway DX4822-01
OS
Windows 7 Home Premium x64
CPU
Intel Pentium Dual Core 2.6 GHz
Motherboard
stock factory for this model
Memory
6 GB
Graphics Card(s)
stock factory for this model
Sound Card
stock factory for this model
Monitor(s) Displays
Dell P2010Ht
Screen Resolution
1600 x 900
Hard Drives
1 TB Western Digital
PSU
300 watt
Cooling
80mm case fan, CPU fan, 60mm front intake
Keyboard
Logitech
Mouse
HP 3-button optical wheel mouse
Internet Speed
fiber optic
Antivirus
MSE, SuperAntiSpyware, Malwarebytes Free

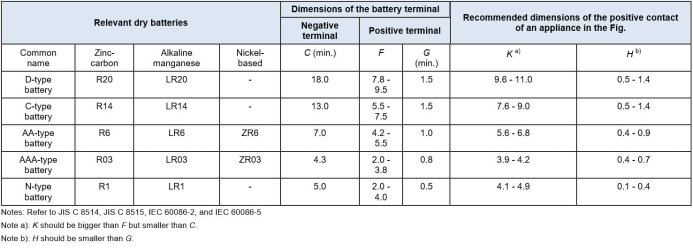

Batteries are not made to precision tolerances. Allow ±0.5 mm tolerance for both diameter and length for cylindrical batteries, If your battery does not fit I would stretch the spring a little.

Edit:
Just because it says Duracell on it does mean that Duracell made it even if you paid full price.

Some references
BAJ Website | Size design guidelines for battery chambers and terminals in battery-operated equipment

How to design equipment using batteries; Battery Technical Resources for Design Engineers from PowerStream

https://en.wikipedia.org/wiki/AA_battery
