Show Us Your Rig [4]

[unlockteam]

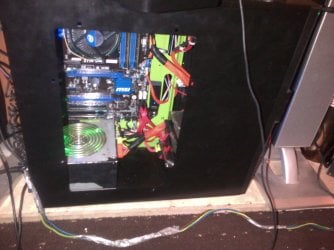

now don't anybody take pi** but a lass just told me i have a nice coffee maker what do you guys think here is a pic



[Lady Fitzgerald]

Thanks, Ganjiry



[Lady Fitzgerald]

now don't anybody take pi** but a lass just told me i have a nice coffee maker what do you guys think here is a pic View attachment 260139View attachment 260140

LOL! Whatever works!



[essenbe]

Very nice job, Lady Fitzgerald. I can tell you put a lot of time and thought into it. Well done.

@unlockteam, nice coffee maker, but be careful and don't spill any.



[Dallas 7]

Lady Fitz that cabling is absolutely amazing! WOW! Very, very nice job.



[Lady Fitzgerald]

Thanks, Steve and Dallas!



[Dallas 7]

Lady F you certainly are patient one. I think you are the only member who can disassemble you connectors to sleeve them.

Dallas7 that is a nice and clean build. You can also upload original pictures. Hit the big orange reply button to get to the Advanced editor, click the View attachment 260078 then browse to your image and upload. A full size pic is better to see detail. Ex.

View attachment 260079
When you open it in a new tab and click on it once more, it's full size.

Hey Britton30 thanks a bunch for the info on posting pics, looks easier than what I went through last night trying to post those two photos.

Second, that blue Dragon Rider of yours is a real looker! She's a beauty!

Third, here goes 1st attempt to post a photo per your suggestion.

Hey piece of cake! Thank you for your help!!!



[essenbe]

very clean job Dallas. Looks like an excellent rig. Congratulations on a great build.



[Britton30]

Very neat cabling Lady F.

Dallas, Good job on the pic upload mate! Now if everyone would do it that way. I can't see the paper Lady F mentioned.



[ICIT2LOL]

Nice job Dallas looks real neat

Lady F like yours too wish my back looked like that though I have done a bit of LED and Fan modding - well thats my excuse. By the way are those Arctic fans if so I reckon they are top gear and way underrated in my view.



[linnemeyerhere]

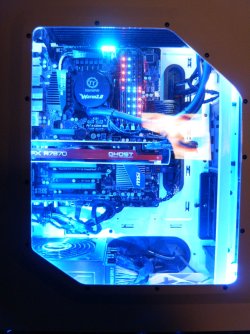

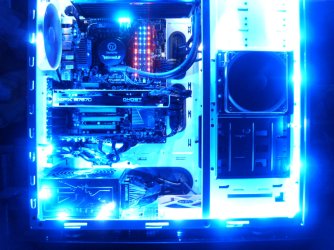

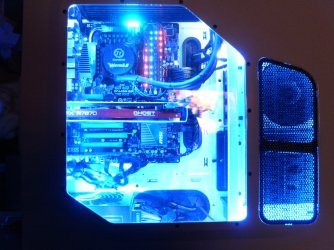

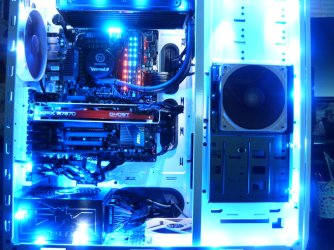

Added a NZXT LED kit.



[Dallas 7]

Thanks Lady Fitz, Icit2lol, Linnemeyer, and Kbrady

Hey Linnemeyer that LED kit is pretty cool!



[Lady Fitzgerald]

Very neat cabling Lady F.

Dallas, Good job on the pic upload mate! Now if everyone would do it that way. I can't see the paper Lady F mentioned.

Thanks for the kinds words. The elusive paper is at the very bottom of the top photo. It just has plan A on it. Here 'tis:

SATA Connections​

Plan A​

Intel SATAIII Ports Boot Drive

(Reserved for possible future RAID 0 Boot Drive)



Intel SATAII Ports Optical Drive

Reare-SATA Port

(Unused)

(Unused)



Marvel SATAIII Ports Data Drive 1

(Reservedfor possible future SSD caching of Data Drive 1)



LSI SATA III Data Drive 2 (0P0)

Data Drive 3 (0P1)

DataDrive 4 (0P2)

Data Drive 5 (0P3)



Data Drive 6 (1P0)

Front e-SATA Port (1P1)

2.5”Hot Swap Bay (1P2)

3.5”Hot Swap Bay (1P3)



[Lady Fitzgerald]

Added a NZXT LED kit.
View attachment 260167

View attachment 260168

View attachment 260169

View attachment 260170

Cool! Like having Vegas at home.



[ICIT2LOL]

Lady Fitz am wondering what are those fan brands are as I cannot make out the brand from the pic



[Lady Fitzgerald]

...Lady F like yours too wish my back looked like that though I have done a bit of LED and Fan modding - well thats my excuse. By the way are those Arctic fans if so I reckon they are top gear and way underrated in my view.

Thanks! The fans aren't Artic. The case fans are Thermaltake AF0018 120mm 800-1300 rpm with an attached speed control pot. I guess Thermaltake intended the pots to just dangle from the cable attaching them to the fans since there is no mounting bracket on them. I had to fabricate brackets to mount them.

The fan on the CPU cooler is a Gelid Silent 14 PWM 140mm 750-1200 rpm. The fan that came with the cooler was a cheap looking 120mm that left a rim of nickel plated steel around the fan that looked totally tacky. The curious thing is the fan runs at around 680-690 rpm when the computer is idle.



[Alsisgevat]

Linne- that looks awesome, liking the blue allot, nice job!



[Britton30]

Added a NZXT LED kit.
View attachment 260167

View attachment 260168

View attachment 260169

View attachment 260170

Cool! Like having Vegas at home.

You beat me to it, I was going to say Alan captured part of Fremont St. in his case and burned out the blue pixels in my LCD monitor.



[ganjiry]

Added a NZXT LED kit.
]

Looking good chap I have the red NZXT kit and its not bright enough. nowhere near as bright as those.



[linnemeyerhere]

Thanks everyone,
Something about shooting with my little digital camera makes the lights seem overly bright. They are bright but nothing like the way the camera captures them. I just installed one of these in my next used parts build and I was so impressed I ordered one for the main rig. These are real quality kit for anyone considering some LED lighting.
Cheers.......Vegas Baby Vegas !
