All hard disk are layout as Dynamics

azlin

New member
Local time
2:59 PM
Messages
1

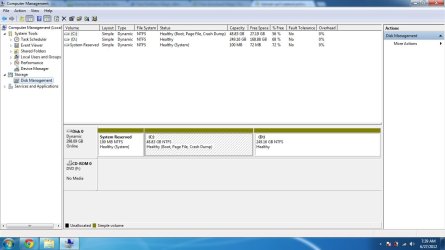

I want to extend volume to C but suddenly it become like this..
Can anyone help me..


Attachments

  • Disk Managment.jpg
    Disk Managment.jpg
    84.6 KB · Views: 21

My Computer

OS
Windows 7 Ultimate 32bit
You should never have converted to dynamic disks. They should be avoided in nearly all cases.

You need to convert back to basic disks. Back up your data first.

I would use option 4 from the link below.

http://www.sevenforums.com/tutorials/26829-convert-dynamic-disk-basic-disk.html

You can also use Partition Wizard to extend C. You will first have to shrink the D drive and then expand C into the space you saved by shrinking D.

But get rid of the dynamic disks first.


My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Ignatz Special; 4 speed manual gearbox; factory air conditioning; one of one
OS
Windows 7 Home Premium SP1, 64-bit
CPU
Intel Skylake i5-6600K, not overclocked
Motherboard
AsRock Z170M Extreme 4, micro ATX
Memory
8 GB HyperX DDR4-2666 (2 x 4 GB)
Graphics Card(s)
none; graphics are integrated on CPU
Sound Card
onboard: Realtek ALC1150; external: USB Behringer UF0-202
Monitor(s) Displays
Dell S2340M 23 inch IPS
Screen Resolution
1600 x 900
Hard Drives
System: Crucial MX100 series SSD, 128 GB;
Data: Samsung Spinpoint 103SJ, 1 TB;
Backup: WD Caviar Green WD30EZRX-00D8PB0, 3 TB
PSU
Rosewill SilentNight 500 watt fanless, semi-modular
Case
Antec Solo II
Cooling
Noctua NH-U12S; Noctua F12 intake, Noctua S12A exhaust
Keyboard
Microsoft 200 6JH-00001 USB
Mouse
Dell or Microsoft optical wired; USB
Antivirus
Microsoft Security Essentials and Malwarebytes Premium
Browser
Pale Moon
Other Info
All fans PWM; speeds at idle: CPU circa 500 rpm; intake circa 600 rpm; exhaust circa 600 rpm; CPU temps 27 idle and 47 C load in a warm room (27 C/81 F) when running Intel Extreme Tuning Utility stress test.
Dynamic disks are only meant to span a partition across multiple HD's.

To convert HD back to Basic non-destructively use free Partition Wizard bootable CD.

However this feature is no longer free after version 4.2, so download v.4.2 here to burn to CD using Windows Image burner: pw422.zip ISO - Windows Live. You need the disk for possible rescue purposes.

Boot PW CD, click on Disk # to highlight HD needing conversion, then from Disk tab select Convert Dynamic to Basic Disk, click OK, Apply step. How to convert dynamic disk to basic disk with Partition Wizard?
