AMD 1090t Temps

[r00ploi]

Hi,

Can you let me know if the temps in the below picture look about right for the AMD 1090t CPU and the Gigabyte 890fxa-ud5 Motherboard?



I am using the Corsair H50 CPU Cooler.

Many thanks,



[society misfit]

Those are great temps!! I had a Phenom IIx4 955 that would idle around 28 to 32c depending on the ambient temp. But that was with a "quiet" air cooler!!

HWMonitor is pretty accurate but is there anywhere else to confirm those temps? Perhaps another monitoring tool or even within the BIOS?



[r00ploi]

Hi,

Thanks I have checked the BIOS and and it shows the temp at 30c? How come there is such a difference is this normal?

I have also used Core Temp in windows and that shows the same temps as Hardware Monitor



[society misfit]

My Intel board is the same. The BIOS shows at least 4 to 6 degrees different. Can't remember what the AMD board stated. But HWMonitor and Core Temp should be correct. Either or...those are great temps. Says a lot for the H50 Cooler



[r00ploi]

OK thanks for confirming the temps are okay. At least they are well within the limit of 62 which is the max rated for the CPU.



[r00ploi]

Hi

Out of intrest which temp in the above picture is the actual CPU temp?



[Zepher]

Run Prime95 for 10-20 minutes and see what the upper limit is.
My brother bought a 1090T 2 months ago and we had issues getting core temp and another app to read the temps properly, I can't remember what we did but we got it working correctly.
He is using a Cooler Master 212+ cooler which lowered the temps dramatically over the stock cooler.



[diehrd]

Your temps are gonna be off 8c to 12c with that chip . Because the software is reading the socket temp not the chips core temp. And not for nothing but are you living in a home that is colder then that posted chip temp lol... Think about it , if your room is not lower then the temp your posting with that software how do you suppose that warmer air creates such low cpu temps



[r00ploi]

Hi

Thanks for your replies

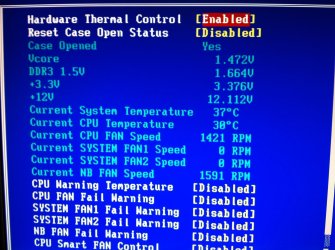

I have checked the BIOS again and it shows the cpu temp around 30c I assume this will be more acurate than progrms within windows?

If anyone knows how to get temp programs
to propley read the temps that would be great.


Many thanks



[r00ploi]

Hi,

Thanks for your reply.

I have disabled smart fan control in the BIOS the RPM speeds of the fans are still not running at a fixed speed is this normal?
