Solved battery finished ?

[thelma]

Laptop shuts down the moment it is unplugged. The charger shows little green light and is slightly warm.

When I hover over the small electric wire picture in the toolbar is gives " 0% available (plugged in charging )"

Don't think this has anything to do with devices?
No yellow exclamation marks in Device manager. The 3 batteries are all working proper.

Should I buy the same battery as is installed ( DELL 83 pounds ) or can I buy cheaper stuff like on Amazon ( SIB-CORP 17 pounds ). Looks the same animal to me.



[indianacarnie]

Look at the spec.s. If the voltage, input and output are the same you should be o.k.. Having said that, I personally prefer buying from the OEM.



[thelma]

In other words, Yes..... Dead . Ok, I will look at these spec.s Voltage. The amazon one gives warranty



[ThrashZone]

Hi,
Without links to the item it's pretty tough to say if they are the same or not,
But if the manufacture has one I'd get it from them if for nothing else you never know who is selling on Amazon unless Amazon is the selling and shipping the item because they have many vendors that sell stuff there so read the reviews of the vender



[thelma]

Ok, and thanks, both for the info, I take this serious and do a review of the battery market in general, also shipment to Austria.

There's one selling here; Battery upgrade.at.



[ICIT2LOL]

Hello Thelma run this and look at the battery status it will tell you the cell volts and capacities
Using HW Info
PART A:
You can test the volts on the PSU with HW Info HWiNFO, HWiNFO32/64 - Download < download the right bit version and close the right hand window select Sensors and scroll down to the power section where you will see what the volts are doing see my pic. In my pic the section (Nuvoton) with VBATT is a dead give away you are in the section for the rail voltages. There are other section titles and one that pops up often is ITE
Now the voltage on the different rails have to be within 5% =+/- of what is required or the machine will not work properly if at all.
ATX Minimum Specs:

3.3v Rail (Min: 3.14v Max: 3.47v)

5v Rail (Min: 4.75v Max: 5.25v)

12v Rail (Min: 11.4v Max: 12.6v)
See this for the rail voltage info
Power Supply 101: A Reference Of Specifications - Power Supplies (Section 2.)
The original right hand window shows the machine running and is handy for that but for looking at the components in some detail close it and use the main left hand side panel
FOR OTHER COMPONENTS
PART B:
Open each small square with + in it on the section the components are in and then click on the individual component/s (it will highlight in blue) - in the right hand side will appear all sorts of details including brands speeds and other essential info that particular device. See pic for example.

Use PART A: see my pic for what you are looking for



[thelma]

Thanks, John , kind of you, I will study this now

Have not ordered a new one as jet, ( know for sure mine is dead ) market quite big and complicated. I know I have to be good with Voltage and Size. Am a bit skinned so need to watch the price?

PS. Put a record on for you on "what are you listening to " my favorite Seven Forums thread, LOVE music. Lucky I got my two speakers bungling side by side my lappy.:huh:



[thelma]

battery finished

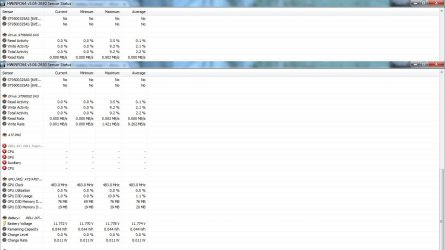

Hi John, I have made a screenshot of my HWiNO64 application.
No, I cannot do it, it says invalid file. Is that because it is moving ( voltages changing )

Anyway, I think the readings will be influenced by the bad state the battery is in?



[ICIT2LOL]

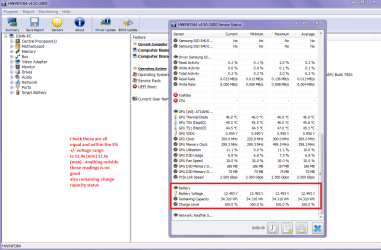

Thelma just write down the volts on the different cells there should be four just like my pic 1 2 3 4

and the capacities they shoulf be in Wh see the attached pic

To attach pics see this I use this all the time
How to Use the Snipping Tool in Vista
&
http://www.sevenforums.com/tutorials/9733-screenshots-files-upload-post-seven-forums.html

I just snip the bit I want and save it to say desktop or pics and then attach it to posts it is really easy once you get the hang of it and it doesn't rely on any http site or whatever



[thelma]

battery finished



Screen shots I can do, but this snipping tool info seems to be only for Vista, mine is differend



[thelma]

John, I did it ! Snipping tool. Found a real good video on y tube !!!

Learned something again today !

So the Battery that I buy should have a Voltage of 11.775 or 5% above or under and a Remaining capacity of o.o44 Wh or 5% above or under.

Is that right ?



[ICIT2LOL]

Yep battery is scrap the capacity is gone, and volts are not crash hot anyway.

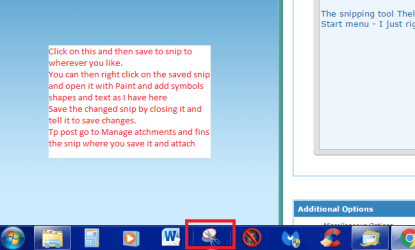

The snipping tool Thelma works on 7 just go to Start > type snip and a blue box will appear at the top of the Start menu - I just right click on it and attach it to the taskbar for easy access



[thelma]

battery finished

Hello John , and thanks so much for your extra info about snipping tool . It's very handy and I will attach it to the taskbar, as a real tool it belongs there

So, today on the web and shopping for the right battery ! At least it is a very simple job to change it.

I will close this thread as solved and thank you for your good help, as always,

Cheers,
Thelma

PS; For you to brighten up your day :



[ICIT2LOL]

Thanks for the pic and the battery you get should show 12v and usually slightly more but the lowest the ells should read is 11.4v and the highest 12.6v anything outside them and there is something wrong with either the battery (usually) or the power source.

Gllad yo have the snip working ok make life somuch easier eh?



[thelma]

It surely does John !
