Beats by Dre headphones with mic volume low and mic is not working.

[harsimarriar96]

When I connect my headphones to ipad or any other devices, It works fine but when I connect it to my PC at rear green port it gives me low volume and mic doesn't worked and recognised too.

I got ports at rear of my cabinet only.

Please give me solutions.



[fireberd]

Please post screenshots of the Device Manager, Sounds section, Sound Panel Playback section and Sound Panel Recording Section.

http://www.sevenforums.com/tutorials/9733-screenshots-files-upload-post-seven-forums.html



[harsimarriar96]

Screenshot by Lightshot
Screenshot by Lightshot
http://prntscr.com/45uiuh
http://prntscr.com/45uj16

And about those 2 Mic's 1 is USB mic which is in my webcam and the other was added when i used extrnal mic, i don't have it anymore.



[fireberd]

You did not post screenshots as I asked, using the Forum procedure.

However, I see the USB mic is set as default. Change the Default Recording device to the Stereo Mix and then try the microphone.

Webcam's have a history of conflicting and interfering with microphones.



[harsimarriar96]

You did not post screenshots as I asked, using the Forum procedure.

However, I see the USB mic is set as default. Change the Default Recording device to the Stereo Mix and then try the microphone.

Webcam's have a history of conflicting and interfering with microphones.

No the Mic is working, but I cannot listen to any sound when I try to speak in mic, I have enabled Listen to this device, I can listen some weird voices, cant listen to my own voice.



[harsimarriar96]

Its showing the dynamic green bars moving but I cant listen to the device, Nor my voice.



[fireberd]

Do you have another headset or PC speakers you can connect to the GREEN Speaker jack to test?

There are many different models of Beats by Dre. Exactly what model do you have?

Different subject. I notice you have Win 7 64 bit but only 4GB of RAM. The 64 bit OS does you no good with only 4GB of RAM, and in fact the 64 bit version requires more system memory than a 32 bit, thus you will have less free RAM available for programs.



[harsimarriar96]

Do you have another headset or PC speakers you can connect to the GREEN Speaker jack to test?

There are many different models of Beats by Dre. Exactly what model do you have?

Different subject. I notice you have Win 7 64 bit but only 4GB of RAM. The 64 bit OS does you no good with only 4GB of RAM, and in fact the 64 bit version requires more system memory than a 32 bit, thus you will have less free RAM available for programs.

Yes I am using Creative Speakers with a woofer and they works fine, And I use the green jack.

I don't know about the headphones model, I got wired headphones with a mic on the aux type wire. There is written SOLO HD on side of it, I think thats the model?

And yes it slow sometimes, But i need it for Video Editing Programs which doesnt run in 32 bit, I'll extend my Ram soon.



[fireberd]

Which connector do you have? 3.5mm TRS plug(s) or 3.5mm TRRS plug like is used on an iPhone and PS4?



[harsimarriar96]

Which connector do you have? 3.5mm TRS plug(s) or 3.5mm TRRS plug like is used on an iPhone and PS4?

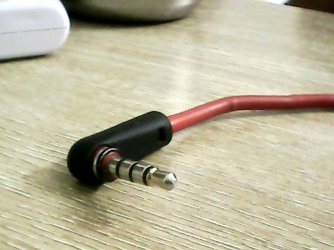

Here is image of my connector. Sorry for large and bad quality image.
And I used it with my ipad, Never tried on PS as I don't have one, And It works with android and windows phone too.



[harsimarriar96]

That connector will not work with a PC. You will need an adapter that will convert that to two TRS plugs to work with a PC.

This is an example of an adapter

And what about the low volume? Its not giving me proper sound, a very sound in very low volume, any solution for that?



[fireberd]

That connector will not work with a PC. You will need an adapter that will convert that to two TRS plugs to work with a PC.

This is an example of an adapter Amazon.com: 2.5mm Mobile Headset To PC Converter: Electronics



[harsimarriar96]

That connector will not work with a PC. You will need an adapter that will convert that to two TRS plugs to work with a PC.

This is an example of an adapter Amazon.com: 2.5mm Mobile Headset To PC Converter: Electronics

It will solve my both low volume and mic problems?



[fireberd]

I don't know if it will solve all the problems, but an adapter, such as I mentioned is needed. However, I suspect it will fix the headset part and probably the mic.

The Headset works off o the Tip (end of the jack connection), the Ring (middle) and the Shield(Ground) Connection.

A PC microphone works with a jack like is needed for the headset. The Tip is the audio connection, the Ring has +5VDC that is required by a standard PC microphone and the Shield which is the ground connection.



[matts6887]

Just a thought here; have you tried removing the sound devices from the device manager; rebooting and let windows re-detect them and reinstall them? If not that might be worth a shot as sometimes windows can be finicky in terms of the way devices and external devices like headphones, etc.; are connected.



[harsimarriar96]

I don't know if it will solve all the problems, but an adapter, such as I mentioned is needed. However, I suspect it will fix the headset part and probably the mic.

The Headset works off o the Tip (end of the jack connection), the Ring (middle) and the Shield(Ground) Connection.

A PC microphone works with a jack like is needed for the headset. The Tip is the audio connection, the Ring has +5VDC that is required by a standard PC microphone and the Shield which is the ground connection.

Okay, Thanks for the help.



[fireberd]

Matts, the problem is not the PC, the problem is the user has a PS4 type connector for the headset and mic and that is not compatible with the PC plugs. An adapter as I linked is needed. I've been through this before with users here and that is the fix.



[matts6887]

Matts, the problem is not the PC, the problem is the user has a PS4 type connector for the headset and mic and that is not compatible with the PC plugs. An adapter as I linked is needed. I've been through this before with users here and that is the fix.

Well as i said; it was just a thought. but yea i guess it was a my bad. Can you say oops? :banghead:
