Can someone tell me where is the speaker wires needs to be inserted ?

[jovesharma]

Can someone tell me where is the speaker wires needs to be inserted from these ports in CPU, given in picture?
I have Creative 5.1 520 Speaker Set, which has three cables out from Woofer-
1. Orange
2. Light green
3. Black

Please tell me where to insert what?



1st is mic
2nd - L-Out
3rd - L-In
4th - SS-Out
5th - CS-Out
6th - RS-Out



[seavixen32]

Your speaker cables should be colour-coded to correspond with their respective phono sockets.

How To Connect 5.1 Speakers To Your Computer



[jovesharma]

It did not help.
My CPU's rear says something different, which i have provided in the picture.



[rraod]

Your image is not very clear so it is hard to read the labels on the jacks but You can see the bottom jacks with speaker image and the word OUT printed above the sockets. So you can use them for connecting the speakers.

Any jack with IN word with a mike symbol is for connecting a microphone (MIC) and Aux for connecting an Aux source like an Ipod or portable MP3 player



[linnemeyerhere]

You answered your own question. Green to Green, Orange to Orange and Black to Black. Green looks like yellow green in you picture top row center.



[jovesharma]

1st is mic
2nd - L-Out
3rd - L-In
4th - SS-Out
5th - CS-Out
6th - RS-Out



[seavixen32]

Are you using onboard sound or a dedicated sound card?



[boohbah]

hope this helps
Creative Speakers Help Section - Tutorials, tips & tricks, connectivity guides and FAQs
click the 5.1 box for the configuration display



[jovesharma]

hope this helps
Creative Speakers Help Section - Tutorials, tips & tricks, connectivity guides and FAQs
click the 5.1 box for the configuration display

Thanks, but it is connecting woofer to speakers, which I know.
But I want to know how to connect woofer to PC...



[jovesharma]

Are you using onboard sound or a dedicated sound card?

Someone told me that AMD 3850 CPU has inbuilt Graphics card.



[boohbah]

ah! ok
i would follow the color code then . do you have a realtek sound card?



[theog]



[alphanumeric]

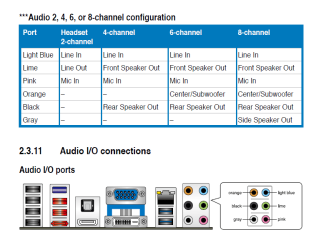

I would try this then run the speaker test option and see if the sound comes out of the correct speakers

1st is mic
2nd - L-Out < 2. Light green
3rd - L-In
4th - SS-Out
5th - CS-Out < 1. Orange
6th - RS-Out < 3. Black



[jovesharma]

You answered your own question. Green to Green, Orange to Orange and Black to Black. Green looks like yellow green in you picture top row center.

Thanks, it worked.



[linnemeyerhere]

Cheers jovesharma,
I hope that my answer didn't sound too flippant as it was not my intention ! Great sound adds so much to the computing experience. I'm glad you got your's straightened out !



[jovesharma]

Cheers linnemeyerhere!
