CD-ROM Manual Info to .iso format?

JWA

New member
Local time
7:55 PM
Messages
31
Have a number of CD-ROM automotive service manuals that are/were time sensitive, trying to open them without changing the system clock gets an error message. On an automotive service forum one user offered this bit as a way to continue using the rather expensive CD-ROM's---the info therein is still relevant and useful.

The suggested fix or work around:

It is not necessary to download and install the SVG Viewer as modern browsers (IE, Firefox, etc) all include that function.

All my service DVDs from 96-12 work perfectly on my desktop Win7Pro system with a few tweaks.

1. Install a virtual DVD setup, then use .iso copies of the disk as virtual disks. Eliminates the physical disk swapping. Put all the ISO files in a single folder to make them easier to find. I use VirtualCloneDrive, it's free.
2. DVDs that are either individual or part of a set must each have their own sub-directory to be installed into, one for a set or one per individual independent DVD. Therefore, I happen to have four folders, each with a specific model year span.
3. Install an appropriately named desktop shortcut for each folder's executable.
4. For those DVDs or sets that have expiration dates, download and install the utility RUNASDATE. You must then edit the shortcut for each of your desktop shortcuts to include the command line and date for that particular set.

For example, here's the selection of desktop icons on my system:



Now, only the three newest of those have expiration dates so they require the date to be modified before launching.

The 09-10 DVD has a date of July 2012 on it, so I set it to run with a date of July 1st, 2012 using the following command line:

C:\runasdate32\RunAsDate(dot)exe 07\01\2012 C:\TSO_09_10\tsobrowser(dot)exe [had to spoof forum software which doesn't like executable file names ]

The shortcut includes the path to the runasdate executable, the desired date (in the mandatory format!) as well as the operating folder and the TSO browser executable.

Works fine!


Can someone here help me find a way to extract (?) and convert info on the CD-ROM's into the .iso files needed for this operation?

TIA


My Computer My Computer

At a glance

Win7 Pro 64 BitAMD Phenom(tm) II X4 970 Processor8.00 GB(1) LogMeIn Mirror Driver (2) ASUS EAH6450 Se...
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Unknown
OS
Win7 Pro 64 Bit
CPU
AMD Phenom(tm) II X4 970 Processor
Motherboard
ASUSTeK Computer INC. M4N68T-M-V2
Memory
8.00 GB
Graphics Card(s)
(1) LogMeIn Mirror Driver (2) ASUS EAH6450 Series
Sound Card
(1) VIA High Definition Audio (2) AMD High Definition Audi
Hi, if you just need to convert the disk to ISO then use ImagBurn.


My Computer My Computer

At a glance

Windows 7 Ultimate x64 SP1 OEMIntel i7 3930KKingston Genesis KHX2133C11D3K4/32GAsus RTX 2070 Ti Turbo fan series
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Owner Builder
OS
Windows 7 Ultimate x64 SP1 OEM
CPU
Intel i7 3930K
Motherboard
Asus X79 Deluxe
Memory
Kingston Genesis KHX2133C11D3K4/32G
Graphics Card(s)
Asus RTX 2070 Ti Turbo fan series
Sound Card
Creative Sound Blaster ZXR
Monitor(s) Displays
Samsung U32J39 UHD
Screen Resolution
3840 x 2160
Hard Drives
Samsung 860 Pro 256 GB
OCZ Vertex 4 512GB
Western Digital Black 4TB
PSU
Corsair AX850
Case
Gigabyte
Cooling
Push - Pull 120 mm Noctua PWM, Scythe Big Shuriken 2 Rev. B
Keyboard
Logitech K800 Backlit
Mouse
Logitech MX2 Master
Internet Speed
NBN 25 Mbps
Antivirus
Kaspersky Internet Security
Browser
Mozilla FireFox
Other Info
TP-Link Archer VR600v
Sennheiser TR220 WiFi Head Phones.
Thanks for the reply----so how do I convert the CD-ROM's info into an ISO format?


My Computer My Computer

At a glance

Win7 Pro 64 BitAMD Phenom(tm) II X4 970 Processor8.00 GB(1) LogMeIn Mirror Driver (2) ASUS EAH6450 Se...
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Unknown
OS
Win7 Pro 64 Bit
CPU
AMD Phenom(tm) II X4 970 Processor
Motherboard
ASUSTeK Computer INC. M4N68T-M-V2
Memory
8.00 GB
Graphics Card(s)
(1) LogMeIn Mirror Driver (2) ASUS EAH6450 Series
Sound Card
(1) VIA High Definition Audio (2) AMD High Definition Audi

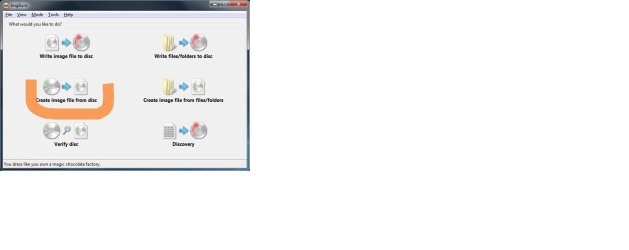

You start the software insert the disk into your CD-ROM and click on "Create Image File from Disk"

Then select a Destination and click the Icon to go.

When in reverse and writing an Image to disk it is advisable to slow the speed down.


Attachments

  • IMG.jpg
    35.7 KB · Views: 2

My Computer My Computer

At a glance

Windows 7 Ultimate x64 SP1 OEMIntel i7 3930KKingston Genesis KHX2133C11D3K4/32GAsus RTX 2070 Ti Turbo fan series
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Owner Builder
OS
Windows 7 Ultimate x64 SP1 OEM
CPU
Intel i7 3930K
Motherboard
Asus X79 Deluxe
Memory
Kingston Genesis KHX2133C11D3K4/32G
Graphics Card(s)
Asus RTX 2070 Ti Turbo fan series
Sound Card
Creative Sound Blaster ZXR
Monitor(s) Displays
Samsung U32J39 UHD
Screen Resolution
3840 x 2160
Hard Drives
Samsung 860 Pro 256 GB
OCZ Vertex 4 512GB
Western Digital Black 4TB
PSU
Corsair AX850
Case
Gigabyte
Cooling
Push - Pull 120 mm Noctua PWM, Scythe Big Shuriken 2 Rev. B
Keyboard
Logitech K800 Backlit
Mouse
Logitech MX2 Master
Internet Speed
NBN 25 Mbps
Antivirus
Kaspersky Internet Security
Browser
Mozilla FireFox
Other Info
TP-Link Archer VR600v
Sennheiser TR220 WiFi Head Phones.
Okay----thanks to MeOnMine I'm almost there---now have a file "stuck" in "system" I cannot delete, error saying its in use by that file or program.

Looking through my accessible points in System 32 I don't see the file. If it matters the default opening program is 7-Zip but there's nothing in the files there either.

Sorry to be such a bother--quite new and very dumb at all this. :)
