Crossfire and disappearing RAM

burndonesinkcha

New member
Local time
5:46 PM
Messages
3
Location
Santa Rosa
Running HP 32bit on an MSI 790fx-gd70, AMD 965, and just added an identical video card (MSI 5770 Hawk). Have 2x2 GB RAM installed. Prior to adding the second card, I had 3326MB of system RAM, and a WEI of 7.5. Second card reduced system RAM to 2816 and 5.5 WEI. In order to have stability in gaming, I had to increase the page file to 5.5GB, and the hard drive never takes a break. My plan was to add RAM to see if that helped. I'm now at 4x2 GB, and still at 2816MB of system RAM. My next step is to install a 64bit OS to at least give my hard drive a break, since all of the installed RAM will be recognized. Does anyone know what causes this? Will it resolve my lower WEI for RAM?


My Computer

Computer Manufacturer/Model Number
DIY
OS
Windows 7 Home Premium 32bit
CPU
AMD Phenom II X4 965BE
Motherboard
MSI 790FX-GD70
Memory
OCZ Black Edition DDR3
Graphics Card(s)
MSI Radeon HD 5770 Hawk x 2
Sound Card
On board
Monitor(s) Displays
LG L2000CP
Hard Drives
4 Hitachi 1TB Deskstar in Raid 1
PSU
OCZ ModXStream 700W
Case
Thermaltake Xaser XI
Cooling
CoolerMaster V6GT
Mouse
Logiteck MX1000
Internet Speed
AT&T DSL, from 500k to 5.5M, unless random failure.
The ram on the video cards is counted first then the system ram...so the system ram went down with the second card....you are long overdue a 64 bit OS

Last edited:

My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Custom
OS
windows 10 pro 64 bit
CPU
i5 4690K@4500 COOLER MASTER Seidon 120M water cooler
Motherboard
ASUS SABERTOOTH Z87 LGA 1150 Intel
Memory
16gb Kingston HyperX DDR3 1600
Graphics Card(s)
EVGA GTX 1070 sc
Monitor(s) Displays
BenQ GL2760H Black 27" 2ms HDMI Widescreen LED 1920X1080
Screen Resolution
DSR 2103X1183
Hard Drives
ADATA 256 gig SSD + 4 junk
PSU
EVGA supernova 750
Case
coolermaster
Cooling
many...
Keyboard
z merc
Mouse
Logitech wireless G602
Internet Speed
2.5mbs cable
You doing crossfire or just two graphics cards (if you are, why?) If you're doing crossfire, try downloading and enabling the software for crossfire.


My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Custom Asus Build
OS
Microsoft Windows 8.1 Pro 64-bit
CPU
Intel(R) Core(TM) i3-4130 CPU @ 3.40GHz
Motherboard
B85M-E
Memory
8.00 GB
Graphics Card(s)
None
Sound Card
Realtek High Definition Audio
Monitor(s) Displays
Asus 23.6" Monitor
Screen Resolution
1920 x 1080 x 32 bits (4294967296 colors) @ 60 Hz
Hard Drives
INTEL SSDSC2BW180A4
Samsung SSD 840 PRO Series
PSU
Seasonic S12II-380Bronze
Case
Lian Li
Cooling
Fan, Passive
Keyboard
Logitech K120
Mouse
Microsoft Touch Mouse
Internet Speed
4ms Ping, 19.0 Mbps Download, 19.0 Mbps Upload
Antivirus
Eset Endpoint
Browser
Internet Explorer, Chrome

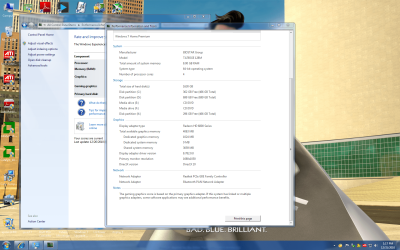

you are wondering why your card takes so much ram you are using 4 gigs all together correct if so and you crossfired two hd5770's in that case the cards are taking 1gig plus a piece shared ram

the more ram you add the more the pci devices will use if you look in the wei you will see how much but also as well you know 64 bit reconizes more ram and 32 bit is stuck at 4 gigs 3.5 usable so it would be a good idea to move on to x64 and add another few gigs just for the sake of having enough gump for what you are trying to do


Attachments

  • shared mem.png
    shared mem.png
    394.5 KB · Views: 27

My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
CoreI7-6700K MrFingerIII Special Builds
OS
Windows 10 Home Premium 64bit sp1
CPU
Intel I7-6700K @ 4.6 Ghz 1.344 volts everyday OC
Motherboard
Asrock Fatality K6 Z170 Socket 1151
Memory
32GB G-Skill TridentZ 3200mhz 16-18-18-38 DDR4
Graphics Card(s)
Sli Gigabyte Windforce GTX 980 G1
Sound Card
AC97 Creative Rage Tactic 3D Headphones Bluetooth
Monitor(s) Displays
27" Asus ROG Swift PG278Q G-Sync 48" Vizio Smart HD TV
Screen Resolution
2560x1440p 27"- 48" Currently Gaming at 2560x1440p Res 2K
Hard Drives
250GB Samsung Evo840SSD Seagate baracuda 500 GB WD Mybook 500Gb 1TB Seagate Barracuda
PSU
HX1050w Corsair Silver 80plus certified crosfire/sli
Case
Enthod Pro Full Tower
Cooling
Corsair H110i GT 280 mm High Performance WaterBlock
Keyboard
Logitech wireless keyboard
Mouse
Logitech wireless mouse
Internet Speed
Cox Cable 100+ mb
Antivirus
WebRoot Spysweeper with Antivirus
Browser
IE-10, Chrome, Opera
Other Info
My Other Rig is a AMD FX8320E @4.6Ghz 16GB Ballistic Sport Ram
Mobo Asrock Fatality 990FX 120GB OCZ SSD 1TB Seagate Barracuda Corsair H75 Cooling PSU Corsair CX750
GPU GTX Gigabyte 970G1
Hungry Hungry GPUs. They are in CrossfireX, and it is enabled in CCC. Next order of business is 64bit. I got Win 7 right away because a new build was long overdue (skipped Vista). Heard the 64bit hardware drivers were buggy. Thanks to everyone for the quick replies!!


My Computer

Computer Manufacturer/Model Number
DIY
OS
Windows 7 Home Premium 32bit
CPU
AMD Phenom II X4 965BE
Motherboard
MSI 790FX-GD70
Memory
OCZ Black Edition DDR3
Graphics Card(s)
MSI Radeon HD 5770 Hawk x 2
Sound Card
On board
Monitor(s) Displays
LG L2000CP
Hard Drives
4 Hitachi 1TB Deskstar in Raid 1
PSU
OCZ ModXStream 700W
Case
Thermaltake Xaser XI
Cooling
CoolerMaster V6GT
Mouse
Logiteck MX1000
Internet Speed
AT&T DSL, from 500k to 5.5M, unless random failure.
Hungry Hungry GPUs. They are in CrossfireX, and it is enabled in CCC. Next order of business is 64bit. I got Win 7 right away because a new build was long overdue (skipped Vista). Heard the 64bit hardware drivers were buggy. Thanks to everyone for the quick replies!!
no, this can apply to a brand new os, but WIN7 has been up and running for a while now
