graphics support for intel dg31pr

[raja basak]

I have a motherboard of intel dg31pr. I am willing to buy a graphics card

Zotac nvidia gtx g50amp!edition 2gb ddr5 will my motherboard support it

please help and reply as fast as possible.



[Saurabh A]

Hi raja basak,

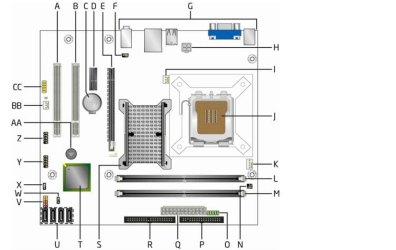

Mentioned below is the system-board layout of 'Intel dg31pr':



It offers that following 'expansion capabilities':
- One PCI Express x16 bus add-in card connector
- One PCI Express x1 bus add-in card connector
- Two PCI Conventional bus connectors

Please share exact details about the 'Graphics Adapter' that you are exploring. Is it a 'GTX 500 series or 5 series' card? You may point at the 'desired GPU' on the following website: Graphics Cards: ZOTAC - It's time to play!
Also share the 'Power Supply' that you're planning to use; will need to verify if it is good enough to handle the 'GPU load'

Do reply with the findings; will take it forward from there.



[raja basak]

it is a zotac 600 series graphics card having pci express 3.0 bus standard and zotac says it is pci express 1.1 compatible it is included with DVI-to-VGA adapter),so will work on my board. intending to use cooler master 500w psu
please reply fast intending to buy one



[Erick Aguilar]

What's the model of the PSU? And exact model of the GPU?



[Saurabh A]

Hi raja basak,

There are a number of 'GTX 600 series' graphic cards listed with the desired specifications. Please share the exact model of the GPU that are looking for.

I had a look at a couple of 'GTX 600 series cards' with 2 GB VRAM (ZOTAC GeForce GTX 670 & GTX 670 AMP! Edition 2GB). For both adapters, recommended 'power supply wattage' is a minimum of 600W.

Do reply with the exact model; will be able to assist better with more decisive information.
