Solved How to launch equalizer by command?

Double

New member
Member
VIP
Local time
12:46 PM
Messages
140
Hi, I'm trying to figure out how to launch my equalizer from Control Panel > Hardware And Sound > IDT Audio Control Panel by command?

I can't create a taskbar/startmenu shortcut to the "app", only a desktop shortcut. I don't really know why that is. There are a few other instances that involve the Control Panel that aren't easily accessible by shortcut either :cry:


My Computer

Computer type
Laptop
Computer Manufacturer/Model Number
HP Pavilion dv7-3188cl
OS
Windows 10 Home 64-bit
CPU
Intel Core i5 430M @2.27GHz
Motherboard
Hewlett-Packard 365C
Memory
6.00GB Dual-Channel DDR3 @532MHz
Graphics Card(s)
512MB NVIDIA GeForce G105M
Sound Card
IDT High Definition Audio CODEC
Monitor(s) Displays
Generic PnP Monitor
Screen Resolution
1600x900 @60Hz
Hard Drives
298GB Hitachi
PSU
AC 100-240V~1.6A 50-60Hz, DC 19V 4.7A
Mouse
Razer DeathAdder Left-Hander
Antivirus
Avast Free
Browser
Google Chrome
Other Info
Malwarebytes Pro, Malwarebytes Anti-Exploit, uBlock Origin
The command is:
Code:
%WinDir%\system32\IDTNC64.cpl


My Computer

Computer type
Laptop
Computer Manufacturer/Model Number
Employer provided Dell Latitude
OS
W7 Pro SP1 64bit
CPU
i7
Memory
8GB
Graphics Card(s)
Intel HD Graphics
Hard Drives
crappy SSD
Antivirus
Employer mandated Symantec Endpoint Protection
Browser
Pale Moon 64bit, IE11 64bit & Chrome 64bit
You could also check within the control panel app for an option for show icon in tray or similar, a lot of these 3rd party controls have such a switch :)


My Computers

System One System Two

  • Computer type
    PC/Desktop
    Computer Manufacturer/Model Number
    ChillBlast - Custom to my design
    OS
    Windows 11 Pro x64 [Latest Release and Release Preview]
    CPU
    Ryzen 9 5950X, 3.8 - 5.2 MHz
    Motherboard
    Asus Prime X570-Pro
    Memory
    64GB [2 x 32GB] DDR4 3200MHz
    Graphics Card(s)
    4GB NVIDIA GEFORCE GTX 1650 Ti
    Sound Card
    On-board SPDIF to 5.1 System + HDMI [5.1 system]
    Monitor(s) Displays
    32" UHD 32 Bit HDR Monitor + 43" UHD 4K 32Bit HDR TV
    Screen Resolution
    2 x 3840 x 2160 @60Hz
    Hard Drives
    1TB M2 SSD OS, 500GB Fast Access SSD, 2 x 8TB Data + Various Externals from 1TB to 4TB, 10TB NAS
    PSU
    NZXT C750 80 PLUS Gold 750W Modular PSU
    Case
    Workstation Case [Matt Black]
    Cooling
    NZXT Kraken X63 280mm CPU Cooler +2x Quiet Case fans
    Keyboard
    Logitech Wireless MX Keys & K400 + others
    Mouse
    Logitech Wireless MX Master 3S
    Internet Speed
    920 MB Down 50 MB Up
    Antivirus
    BitDefender Total Security Pro
    Browser
    Chrome (always run latest Non-Beta)
    Other Info
    Also run ...
    Laptop - Quad 8GB - Windows 10 Pro x64
    Nexus 7 Android tablet x2
    Samsung 10.2" tablet
    Blackview TAB 8 4G Android Tablet c/w Keyboard
    Wacom Intuos Pro Medium Pen Pad
    Wacom Intuos Pro Small Pen Pad
    Wacom Expresskeys Remote
    Loopdeck+ Graphics Controller
    Shuttle Pro v2 Control
  • Computer type
    Laptop
    System Manufacturer/Model Number
    Dell XPS 17 10750H
    OS
    Windows 11 Pro x64 Latest RP
    CPU
    Intel I7 10750H 5.0GHz
    Motherboard
    Dell XPS
    Memory
    32GB [2x16GB] DDR4 2933 MHz
    Graphics Card(s)
    nVidia GTX1650Ti 4 GB GDDR6
    Sound Card
    Stock [Realtek] 4 Speaker
    Monitor(s) Displays
    17" IPS UHD+ Infinity Edge Touchscreen
    Screen Resolution
    3840 x 2400
    Hard Drives
    2TB M2 NVMe, 4TB External + various 500GB & 1TB External NVMe (also have access to spinner HDD from
    PSU
    Stock
    Case
    Stock XPS Aluminium & Carbon Fibre
    Cooling
    Stock - Active Fan Control
    Keyboard
    Backlit + Various Logitech
    Mouse
    Stock Track Pad + Logitech MX Trackball
    Internet Speed
    72 MB Down 18MB Up
    Browser
    Chrome
    Other Info
    Also run ...
    Laptop - Quad 8GB - Windows 10 Pro x64
    Nexus 7 Android tablet x2
    10.2" tablet
    Sony Z3 Android Smartphone
    Wacom Intuos Pro Medium Pen Pad
    Wacom Intuos Pro Small Pen Pad
    Wacom Expresskeys Remote
    Loopdeck+ Graphics Controller
    Shuttle Pro v2 Control Pad
    10TB NAS
You could also check within the control panel app for an option for show icon in tray or similar, a lot of these 3rd party controls have such a switch :)
Sadly, no such option with this one.


Double,

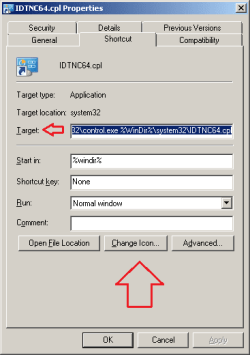

If you want to pin this to the task bar (or elsewhere)...
...you can construct the Target of the shortcut like this:
Code:
%SystemRoot%\system32\control.exe %WinDir%\system32\IDTNC64.cpl

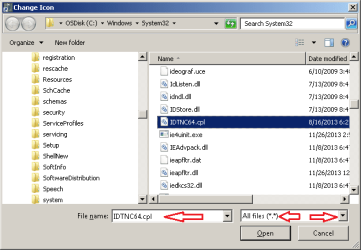

You can change the icon by pointing it to the CPL applet if you select All files (*.*):






My Computer

Computer type
Laptop
Computer Manufacturer/Model Number
Employer provided Dell Latitude
OS
W7 Pro SP1 64bit
CPU
i7
Memory
8GB
Graphics Card(s)
Intel HD Graphics
Hard Drives
crappy SSD
Antivirus
Employer mandated Symantec Endpoint Protection
Browser
Pale Moon 64bit, IE11 64bit & Chrome 64bit
Doh! Silly me. (You can tell that I don't use this control.)

The only thing that the CPL applet load is launch the exe from here:

"%ProgramFiles%\IDT\WDM\IDTNGUI.exe"


You can make the shortcut using that exe...
...then there is no need to change an icon
...and it should pin to anywhere.


My Computer

Computer type
Laptop
Computer Manufacturer/Model Number
Employer provided Dell Latitude
OS
W7 Pro SP1 64bit
CPU
i7
Memory
8GB
Graphics Card(s)
Intel HD Graphics
Hard Drives
crappy SSD
Antivirus
Employer mandated Symantec Endpoint Protection
Browser
Pale Moon 64bit, IE11 64bit & Chrome 64bit
Thank you very much for your help. Even though I've owned this system for years now, I just discovered the built-in Equalizer yesterday and ironically, it has quickly became one of my favorite apps :)
