Solved How to make home group with 2 laptops and desktop ?

baxxter

New member
Member
VIP
Local time
4:20 AM
Messages
266
I have 2 laptops and destop,and wirless modem router(Tp link);help me how to make a homegroup.I I didnt know how to connect them ,because in the home group I dont see the pcs
-I installed win 7 on the 3 pc
-the -modem-router have 4 lan ports


My Computer My Computer

At a glance

Windows 7 Ultimate SP1 64 BitIntel Core i7-2630QM 2.00GHz4 Gb ddr3Nvidia 520 1G
Computer Manufacturer/Model Number
Dell Insporon N7110
OS
Windows 7 Ultimate SP1 64 Bit
CPU
Intel Core i7-2630QM 2.00GHz
Memory
4 Gb ddr3
Graphics Card(s)
Nvidia 520 1G
Monitor(s) Displays
1600 X 900
Screen Resolution
1440*900
Hard Drives
500 GB + 500 GB
Internet Speed
1 mb
goto:
Control Panel\All Control Panel Items\HomeGroup
setup a homegroup here.
write down a password.

then on another comp goto same place and join to previously created homegroup using suplied password.


My Computer My Computer

At a glance

Windows 7 Enterprise x64 SP1 Version 6.1 Buil...x64bit AMD Turion(tm) X2 Ultra Dual-Core Mobi...4096 (2048 + 2048) MB, DDR2 RAM (800 MHz), ma...ATI Mobility Radeon™ HD 3650+HyperMemory™(512...
Computer Manufacturer/Model Number
Toshiba Satelite P300D 13J (Short model No: PSPDCE)
OS
Windows 7 Enterprise x64 SP1 Version 6.1 Build 7601
CPU
x64bit AMD Turion(tm) X2 Ultra Dual-Core Mobile ZM-82
Memory
4096 (2048 + 2048) MB, DDR2 RAM (800 MHz), max 8,192 MB
Graphics Card(s)
ATI Mobility Radeon™ HD 3650+HyperMemory™(512MB VRAM+2302MB)
Sound Card
Manufacturer: harman/kardon
Monitor(s) Displays
Generic PnP Monitor (MONITOR\LPLA101)
Screen Resolution
1440 x 900 (19" LCD)
Hard Drives
HDD1: TOSHIBA MK3252GSX ATA Device (IDE 320 GB 5,400 o/min) ,
HDD2: Msft Virtual Disk SCSI Disk Device (Virtual Hard Drive),
HDD3: TOSHIBA MK3263GSX USB Device (USB Mobile HDD) (TakeMS MemLine)
PSU
Batery: technology : lithium-ion
Cooling
integrated cooler + 3x external cooler
Keyboard
USB Logitech S520
Mouse
USB Logitech S520
Internet Speed
WAN: 7,2 Mbit/sec, WLAN: 54 Mbit/sec + Bluetooth®
I tried this,but as i said I didnt find the computers .I need to know how to connect them to the router ,and if i must change the ip


My Computer My Computer

At a glance

Windows 7 Ultimate SP1 64 BitIntel Core i7-2630QM 2.00GHz4 Gb ddr3Nvidia 520 1G
Computer Manufacturer/Model Number
Dell Insporon N7110
OS
Windows 7 Ultimate SP1 64 Bit
CPU
Intel Core i7-2630QM 2.00GHz
Memory
4 Gb ddr3
Graphics Card(s)
Nvidia 520 1G
Monitor(s) Displays
1600 X 900
Screen Resolution
1440*900
Hard Drives
500 GB + 500 GB
Internet Speed
1 mb
well, obviously wireless router must be connected to the internet and must have wireless enabled ( it must broadcast a signal)
do your router have wireless network up and runing and is it connected to the internet?

if yes then all you have to do at this point is connect to that wirless network from both laptops.
once both laptops are wirellesly connected to the router which broadcast a signal and is connected to the net you setup a homegroup on one of them.
then from another access to created homegroup.
you don't have to see other comps on the home networks, just a homegroup name and connect to it using password.


My Computer My Computer

At a glance

Windows 7 Enterprise x64 SP1 Version 6.1 Buil...x64bit AMD Turion(tm) X2 Ultra Dual-Core Mobi...4096 (2048 + 2048) MB, DDR2 RAM (800 MHz), ma...ATI Mobility Radeon™ HD 3650+HyperMemory™(512...
Computer Manufacturer/Model Number
Toshiba Satelite P300D 13J (Short model No: PSPDCE)
OS
Windows 7 Enterprise x64 SP1 Version 6.1 Build 7601
CPU
x64bit AMD Turion(tm) X2 Ultra Dual-Core Mobile ZM-82
Memory
4096 (2048 + 2048) MB, DDR2 RAM (800 MHz), max 8,192 MB
Graphics Card(s)
ATI Mobility Radeon™ HD 3650+HyperMemory™(512MB VRAM+2302MB)
Sound Card
Manufacturer: harman/kardon
Monitor(s) Displays
Generic PnP Monitor (MONITOR\LPLA101)
Screen Resolution
1440 x 900 (19" LCD)
Hard Drives
HDD1: TOSHIBA MK3252GSX ATA Device (IDE 320 GB 5,400 o/min) ,
HDD2: Msft Virtual Disk SCSI Disk Device (Virtual Hard Drive),
HDD3: TOSHIBA MK3263GSX USB Device (USB Mobile HDD) (TakeMS MemLine)
PSU
Batery: technology : lithium-ion
Cooling
integrated cooler + 3x external cooler
Keyboard
USB Logitech S520
Mouse
USB Logitech S520
Internet Speed
WAN: 7,2 Mbit/sec, WLAN: 54 Mbit/sec + Bluetooth®
i cant see " join to home group" !


My Computer My Computer

At a glance

Windows 7 Ultimate SP1 64 BitIntel Core i7-2630QM 2.00GHz4 Gb ddr3Nvidia 520 1G
Computer Manufacturer/Model Number
Dell Insporon N7110
OS
Windows 7 Ultimate SP1 64 Bit
CPU
Intel Core i7-2630QM 2.00GHz
Memory
4 Gb ddr3
Graphics Card(s)
Nvidia 520 1G
Monitor(s) Displays
1600 X 900
Screen Resolution
1440*900
Hard Drives
500 GB + 500 GB
Internet Speed
1 mb
open up network and sharing center by clicking the network icon in the notification area. Or you can got to control panel, network and sharing and then click network and sharing center. Once there you'll see "HomeGroup": and then "Join"....click join. If you set up your homegroup correctly, your were given a password for your homegroup, that pass word must be entered on remaining PC's to join that homegroup.

Join or create a workgroup

How to join or create a work group in Windows® 7? - YouTube


My Computer My Computer

At a glance

Windows 7 Ultimate 64 bitAMD Phenom II X4 965 Black EditionGSkill 4 X 2 GB PC 8500XFX Radeon HD 6790 D
Computer Manufacturer/Model Number
Custom built
OS
Windows 7 Ultimate 64 bit
CPU
AMD Phenom II X4 965 Black Edition
Motherboard
Gigabyte GA-MA790X-DS4
Memory
GSkill 4 X 2 GB PC 8500
Graphics Card(s)
XFX Radeon HD 6790 D
Sound Card
On board RealTek HD
Monitor(s) Displays
Dual monitors:Samsung SyncMaster S20B300
Screen Resolution
1600 X 900
Hard Drives
Seagate Barracuda 1TB (primary)
Seagate Barracuda 2 X 320 GB
PSU
Ultra X4 750 watt fully modular
Case
Thermaltake Overseer RX 1 full tower
Cooling
Core-Contact 92 mm CPU Cooler
Keyboard
Logitech G510
Mouse
Razor DeathAdder
Internet Speed
50/5 Mbps UL/DL
Other Info
Optical: Super Muliti DVD burner w/lightscribe, Hauppauge WinTV HVR-1800

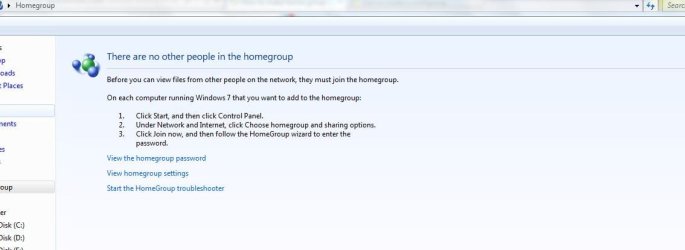

my pc cant find the other pc !but I could play music and pics and vedio only .
maybe I should change the ip address or mac address ?


Attachments

  • homegroup.JPG
    39.4 KB · Views: 33

My Computer My Computer

At a glance

Windows 7 Ultimate SP1 64 BitIntel Core i7-2630QM 2.00GHz4 Gb ddr3Nvidia 520 1G
Computer Manufacturer/Model Number
Dell Insporon N7110
OS
Windows 7 Ultimate SP1 64 Bit
CPU
Intel Core i7-2630QM 2.00GHz
Memory
4 Gb ddr3
Graphics Card(s)
Nvidia 520 1G
Monitor(s) Displays
1600 X 900
Screen Resolution
1440*900
Hard Drives
500 GB + 500 GB
Internet Speed
1 mb
I did those steps before i ask in this forum.and look at the pic , i have a home group but it cant find any other pc !


My Computer My Computer

At a glance

Windows 7 Ultimate SP1 64 BitIntel Core i7-2630QM 2.00GHz4 Gb ddr3Nvidia 520 1G
Computer Manufacturer/Model Number
Dell Insporon N7110
OS
Windows 7 Ultimate SP1 64 Bit
CPU
Intel Core i7-2630QM 2.00GHz
Memory
4 Gb ddr3
Graphics Card(s)
Nvidia 520 1G
Monitor(s) Displays
1600 X 900
Screen Resolution
1440*900
Hard Drives
500 GB + 500 GB
Internet Speed
1 mb
under Control Panel\Network and Internet\Network Connections
right click on your adapter and make sure all checkboxes are checked
do so for both laptops.

acctualy "link-layer topology discovery mapper/responer" are most important here and are responsible for computer visibility and those must be enabled.

also double-click on InternetProtocol v4 and see if everything is OK there.
also, what firewall do you have?
try temporary disabling firewall and
also can you post output from ipconfig /all command from both laptops.

EDIT:
important,

goto:
Control Panel\All Control Panel Items\Network and Sharing Center\Advanced sharing settings
and make sure network discovery and public folder sharing is enabled.
acctualy try to enable all for your network profile.
there are only two profiles acctualy (work and public)
-- see on wich profile is you wireless network attached and turn on all.
do so for both laptops of course.
both laptops must be connected to the wirelless net all the time while seting up homegroup.

wirelless network profile must be home network on both laptops.
to set home network goto:
Control Panel\All Control Panel Items\Network and Sharing Center
click on network link with icon and change profile to home.


My Computer My Computer

At a glance

Windows 7 Enterprise x64 SP1 Version 6.1 Buil...x64bit AMD Turion(tm) X2 Ultra Dual-Core Mobi...4096 (2048 + 2048) MB, DDR2 RAM (800 MHz), ma...ATI Mobility Radeon™ HD 3650+HyperMemory™(512...
Computer Manufacturer/Model Number
Toshiba Satelite P300D 13J (Short model No: PSPDCE)
OS
Windows 7 Enterprise x64 SP1 Version 6.1 Build 7601
CPU
x64bit AMD Turion(tm) X2 Ultra Dual-Core Mobile ZM-82
Memory
4096 (2048 + 2048) MB, DDR2 RAM (800 MHz), max 8,192 MB
Graphics Card(s)
ATI Mobility Radeon™ HD 3650+HyperMemory™(512MB VRAM+2302MB)
Sound Card
Manufacturer: harman/kardon
Monitor(s) Displays
Generic PnP Monitor (MONITOR\LPLA101)
Screen Resolution
1440 x 900 (19" LCD)
Hard Drives
HDD1: TOSHIBA MK3252GSX ATA Device (IDE 320 GB 5,400 o/min) ,
HDD2: Msft Virtual Disk SCSI Disk Device (Virtual Hard Drive),
HDD3: TOSHIBA MK3263GSX USB Device (USB Mobile HDD) (TakeMS MemLine)
PSU
Batery: technology : lithium-ion
Cooling
integrated cooler + 3x external cooler
Keyboard
USB Logitech S520
Mouse
USB Logitech S520
Internet Speed
WAN: 7,2 Mbit/sec, WLAN: 54 Mbit/sec + Bluetooth®
nothing happend !!


My Computer My Computer

At a glance

Windows 7 Ultimate SP1 64 BitIntel Core i7-2630QM 2.00GHz4 Gb ddr3Nvidia 520 1G
Computer Manufacturer/Model Number
Dell Insporon N7110
OS
Windows 7 Ultimate SP1 64 Bit
CPU
Intel Core i7-2630QM 2.00GHz
Memory
4 Gb ddr3
Graphics Card(s)
Nvidia 520 1G
Monitor(s) Displays
1600 X 900
Screen Resolution
1440*900
Hard Drives
500 GB + 500 GB
Internet Speed
1 mb
You have to designate one PC and the main PC to create the workgroup on. When that is set up you are give a password. Then the other PC's have to join the network you created by using that password. Once the password is enter then that PC is/has joined that network (what ever name you created for that network).

According to your screen shot you haven't created a network.


My Computer My Computer

At a glance

Windows 7 Ultimate 64 bitAMD Phenom II X4 965 Black EditionGSkill 4 X 2 GB PC 8500XFX Radeon HD 6790 D
Computer Manufacturer/Model Number
Custom built
OS
Windows 7 Ultimate 64 bit
CPU
AMD Phenom II X4 965 Black Edition
Motherboard
Gigabyte GA-MA790X-DS4
Memory
GSkill 4 X 2 GB PC 8500
Graphics Card(s)
XFX Radeon HD 6790 D
Sound Card
On board RealTek HD
Monitor(s) Displays
Dual monitors:Samsung SyncMaster S20B300
Screen Resolution
1600 X 900
Hard Drives
Seagate Barracuda 1TB (primary)
Seagate Barracuda 2 X 320 GB
PSU
Ultra X4 750 watt fully modular
Case
Thermaltake Overseer RX 1 full tower
Cooling
Core-Contact 92 mm CPU Cooler
Keyboard
Logitech G510
Mouse
Razor DeathAdder
Internet Speed
50/5 Mbps UL/DL
Other Info
Optical: Super Muliti DVD burner w/lightscribe, Hauppauge WinTV HVR-1800
Well as I said I created the home group like in the site,I tried the same way in the other laptop and it worked !
I think the driver isnt up to date !!Ill try the update it then see what will happen .


My Computer My Computer

At a glance

Windows 7 Ultimate SP1 64 BitIntel Core i7-2630QM 2.00GHz4 Gb ddr3Nvidia 520 1G
Computer Manufacturer/Model Number
Dell Insporon N7110
OS
Windows 7 Ultimate SP1 64 Bit
CPU
Intel Core i7-2630QM 2.00GHz
Memory
4 Gb ddr3
Graphics Card(s)
Nvidia 520 1G
Monitor(s) Displays
1600 X 900
Screen Resolution
1440*900
Hard Drives
500 GB + 500 GB
Internet Speed
1 mb
All right we have some progress....that's good news. Keep us posted.


My Computer My Computer

At a glance

Windows 7 Ultimate 64 bitAMD Phenom II X4 965 Black EditionGSkill 4 X 2 GB PC 8500XFX Radeon HD 6790 D
Computer Manufacturer/Model Number
Custom built
OS
Windows 7 Ultimate 64 bit
CPU
AMD Phenom II X4 965 Black Edition
Motherboard
Gigabyte GA-MA790X-DS4
Memory
GSkill 4 X 2 GB PC 8500
Graphics Card(s)
XFX Radeon HD 6790 D
Sound Card
On board RealTek HD
Monitor(s) Displays
Dual monitors:Samsung SyncMaster S20B300
Screen Resolution
1600 X 900
Hard Drives
Seagate Barracuda 1TB (primary)
Seagate Barracuda 2 X 320 GB
PSU
Ultra X4 750 watt fully modular
Case
Thermaltake Overseer RX 1 full tower
Cooling
Core-Contact 92 mm CPU Cooler
Keyboard
Logitech G510
Mouse
Razor DeathAdder
Internet Speed
50/5 Mbps UL/DL
Other Info
Optical: Super Muliti DVD burner w/lightscribe, Hauppauge WinTV HVR-1800
I installed sp1 ,now it says" I cant create a home group on this computer" !!
the other laptop I still can access to the home group,I can see the pcs on "network" but I cant access ,it ask me to write the user name and the password ! wich user name and password it mean ?

Last edited:

My Computer My Computer

At a glance

Windows 7 Ultimate SP1 64 BitIntel Core i7-2630QM 2.00GHz4 Gb ddr3Nvidia 520 1G
Computer Manufacturer/Model Number
Dell Insporon N7110
OS
Windows 7 Ultimate SP1 64 Bit
CPU
Intel Core i7-2630QM 2.00GHz
Memory
4 Gb ddr3
Graphics Card(s)
Nvidia 520 1G
Monitor(s) Displays
1600 X 900
Screen Resolution
1440*900
Hard Drives
500 GB + 500 GB
Internet Speed
1 mb
Make sure in the UAC that there are no passwords setup for each account you have.

Then in the network and sharing center, advanced sharing settings, scroll down to password protected sharing and tick "turn off password protected sharing" on both PC's.

Make sure to turn on network discovery is ticked for both PC's.


My Computer My Computer

At a glance

Windows 7 Ultimate 64 bitAMD Phenom II X4 965 Black EditionGSkill 4 X 2 GB PC 8500XFX Radeon HD 6790 D
Computer Manufacturer/Model Number
Custom built
OS
Windows 7 Ultimate 64 bit
CPU
AMD Phenom II X4 965 Black Edition
Motherboard
Gigabyte GA-MA790X-DS4
Memory
GSkill 4 X 2 GB PC 8500
Graphics Card(s)
XFX Radeon HD 6790 D
Sound Card
On board RealTek HD
Monitor(s) Displays
Dual monitors:Samsung SyncMaster S20B300
Screen Resolution
1600 X 900
Hard Drives
Seagate Barracuda 1TB (primary)
Seagate Barracuda 2 X 320 GB
PSU
Ultra X4 750 watt fully modular
Case
Thermaltake Overseer RX 1 full tower
Cooling
Core-Contact 92 mm CPU Cooler
Keyboard
Logitech G510
Mouse
Razor DeathAdder
Internet Speed
50/5 Mbps UL/DL
Other Info
Optical: Super Muliti DVD burner w/lightscribe, Hauppauge WinTV HVR-1800
I tried windows troubleshooter and it fixed it


My Computer My Computer

At a glance

Windows 7 Ultimate SP1 64 BitIntel Core i7-2630QM 2.00GHz4 Gb ddr3Nvidia 520 1G
Computer Manufacturer/Model Number
Dell Insporon N7110
OS
Windows 7 Ultimate SP1 64 Bit
CPU
Intel Core i7-2630QM 2.00GHz
Memory
4 Gb ddr3
Graphics Card(s)
Nvidia 520 1G
Monitor(s) Displays
1600 X 900
Screen Resolution
1440*900
Hard Drives
500 GB + 500 GB
Internet Speed
1 mb
Back
Top
