I can't change my resolution.

[MrZebwa]

So recently my computer was fixed after a little accident.
Then I noticed that my resolution was changed into 1400x1050.
It was once 1366x768 and I'm really uncomfortable with this resolution.
I want this to be really fixed as soon as possible.
I may also need a driver to play games like Minecraft,Team Fortress 2.

Here are my specs:

OS:Windows 7 Professional 32-bit SP1
CPU:AMD A6-5400K Trinity 32nm Technology
RAM:4.00GB Single-Channel DDR3 @ 665MHz (9-9-9-24)
Mother Board:Emaxx Technology.Ltd EMX-A55FM2HD-iCafe (P0)
Graphics:Standard Monitor (1400x1050@1Hz)



[Barman58]

From what I can see from your motherboard description I am assuming you do not have a discrete graphics card but use the onboard graphics - If this is so then the following link should be the drivers you need to return to the Native resolution of the Graphics, It would appear that the system specific drivers were not loaded after the repair and you have been using the generic drivers

EMX-A55FM2HD-iCAFE | http://www.emaxxtech.com/

Drivers are on the 2nd tab on page- 1st Item

You may also want to download and install some or all of the other drivers available which may help the general working of your system



[MrZebwa]

Unfortunately, It broke my computer again but thanks to system restore.
Is there any other options to fix this?



[MrZebwa]

I do want it fixed as soon as possible.



[MrZebwa]

From what I can see from your motherboard description I am assuming you do not have a discrete graphics card but use the onboard graphics - If this is so then the following link should be the drivers you need to return to the Native resolution of the Graphics, It would appear that the system specific drivers were not loaded after the repair and you have been using the generic drivers

EMX-A55FM2HD-iCAFE | http://www.emaxxtech.com/

Drivers are on the 2nd tab on page- 1st Item

You may also want to download and install some or all of the other drivers available which may help the general working of your system

Hello? It never worked and it broke my PC but I fixed it using system restore.
Are there any other options?



[Barman58]

If you have installed all the relevant drivers for your system from the link Provided then it should work correctly (assuming all components are as stated )

But I cannot state with any certainty what needs to be repaired as I do not have access to the PC but if the system was working correctly before the repair and is not afterwards that would suggest that the repair has changed something

The only other option would be to return it to whoever performed the repair to fix the error they caused.



[MrZebwa]

If you have installed all the relevant drivers for your system from the link Provided then it should work correctly (assuming all components are as stated )

But I cannot state with any certainty what needs to be repaired as I do not have access to the PC but if the system was working correctly before the repair and is not afterwards that would suggest that the repair has changed something

The only other option would be to return it to whoever performed the repair to fix the error they caused.

Before the PC broke it actually worked without a graphics card and I can play games to the resolution of
1366x768.Then after like January 2017 which is February 2017 I kicked the CPU accidentally and it shut down.After it broke I tried to fix it.I was messing around then I found my old graphics card which the guy said it was broken and I tried it and attached to the motherboard.After that in 2 weeks we went somewhere to fix it.After that this happened.

I have options:

1.)Should I remove the graphics card and attach the video cable to the one in the CPU(Because its attached to the VGA of my broken graphics card)

2.)Should I find another method rather than 1.

3.)Should I find a alternate driver which is different from the one you suggested me to use?



[Barman58]

The drivers I linked to were for the onboard video so will not work with the add-on card, so you need to either source new drivers for the Add-on card or connect to the on board graphics after removing the broken card.

I would also suggest that you remove all existing Video Drivers using Display Driver Uninstaller Download version 17.0.6.5 and re-install the ones I linked to after the removal of the add-on card and connection to the on-board VGA

The 1366 x 768 is a standard default resolution for an onboard card whereas 1400x1050 looks like a higher resolution only available on the external card and only when working correctly with correct drivers



[RoasterMen]

The 1366 x 768 is a standard default resolution for an onboard card whereas 1400x1050 looks like a higher resolution only available on the external card and only when working correctly with correct drivers

Hi,

Not quite, GPUs have a max supported resolution, the value of width and height does not matter as long as it meets the max supported resolution.



[Barman58]

The fitting of Panel aspects and sizes into the resolution limits of graphics output is not as simple as that stated

In this case The two are both standard 4:3 aspect ratio Native resolutions for monitor panels, they may not be the actual Native resolution but this is highly likely that the 1366x768 is. The aspect ratio is as important as the resolution as the aspect ratio of the individual pixel elements is not capable of variation.

If you change the aspect ratio from the designed Aspect ratio then you will produce a distorted image. A similar quality degradation issue is seen when anything other than the native resolution of the panel is used as this will require dithering or pixel multiplication to achieve

The best picture quality achievable is achieved by setting the GPU output to the same Aspect ratio and native resolution as the Panel in use, Other settings may well be possible but will always degrade the final image produced

There are also of course input/output devices that use other than square pixels which must also be taken into account when setting up a monitor



[ThrashZone]

Hi,
As long as one uses the recommended resolution I'm not sure why one would want to use a lower one unless items were blurred...



[Barman58]

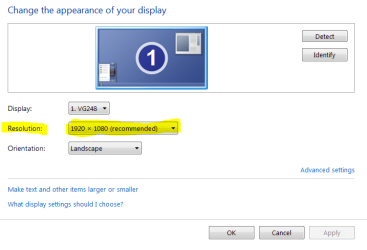

The resolution that windows recommends is derived from data from the Monitor and should always be equal to the Panel Native Resolution, (and thus Aspect Ratio), or the best approximation that the card is capable of, (useful when a high res monitor is fed from a graphics Card/Chip which is incapable of matching the monitor )



[RoasterMen]

The Radeon HD 7540D in the APU is reported to support a maximum resolution of 2560x1600. Unless the OP is forcing a resolution that his monitor can't support then there's another problem.



[Barman58]

The Op has already stated that the Card is broken, also If you have a Panel with a resolution of 1366 x 768, the fact that the graphics Card/Chip can drive a resolution of 2560 x 1600 is irrelevant, as the maximum the display is capable of is fixed and any other resolution will produce degradation.

With a Digital panel it is the resolution of the panel that has to drive the choice of resolution - Cards are almost always capable of more than one resolution Digital display panels are not, If you have a card that cannot produce the same resolution and aspect ratio as the panel it may be possible to use dithering technology to produce an image but this will always be less sharp than the correct resolution, You can force the card to send the pixel information for any resolution you wish, but the panel will always display at it's native resolution, as it cannot somehow grow or shed pixels



[ThrashZone]

Hi,
All I know is the op stated

I'm really uncomfortable with this resolution.

That I'm aware of a "feeling" is not really an issue with hardware but I missed the defective gpu part

If things are blurry at the higher resolution then that would indeed be a problem.



[Barman58]

Post #7 appears to say that the card was stated as broken



[ThrashZone]

Hi,
Okay yep I was thrown off by them saying they kicked the cpu = how does that happen



[Barman58]

I'm taking it as the CPU is the Main System case - I've heard it called that quite often

I have been wondering if the Card is broken due to lack of drivers or is actually broken the drivers should be the standard set for an AMD chip so may be worth trying that if the ones it linked to for the on board graphics fail to sort it - Obviously if the Panel is a 1366 x 768 than thats the max you'll ever get


Edit
AMD Radeon HD 7540D Drivers Download for Windows 10, 8.1, 7, Vista, XP should be the original driver for the on board graphics although they should be the same as the ones from the board manufacturer, which I would use, but you never know.

If we could know the details about the external card we could check on drivers for that - if just to rule it out

Of course we still have no info from the OP as to the result of using the onboard with the posted drivers



[RoasterMen]

I'm taking it as the CPU is the Main System case - I've heard it called that quite often

Ahaha...Yeah, here in country the system unit is called as CPU. I used to call it like that too until I stepped into the first year of college in the I.T. course I realize I was wrong



[MrZebwa]

The drivers I linked to were for the onboard video so will not work with the add-on card, so you need to either source new drivers for the Add-on card or connect to the on board graphics after removing the broken card.

I would also suggest that you remove all existing Video Drivers using Display Driver Uninstaller Download version 17.0.6.5 and re-install the ones I linked to after the removal of the add-on card and connection to the on-board VGA

The 1366 x 768 is a standard default resolution for an onboard card whereas 1400x1050 looks like a higher resolution only available on the external card and only when working correctly with correct drivers

So which option is that?
