Intel RAID Controller Driver - Windows 7 Ultimate x64

[Golden]

Hi Everyone,

I've recently had some trouble installing a RAIDO disk configuration under Windows 7 Ultimate x64 (see my 3rd reply here http://www.sevenforums.com/installa...d-bsod-during-windows-7-installation.html). I suspect that the drivers aren't quite Windows 7 "compatible", and are responsible for the problems.

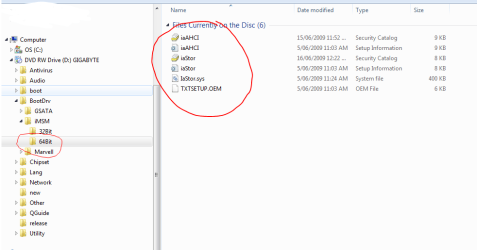

I'm wondering if anyone here knows whether there are updated Windows 7 x64 drivers available for the Intel ICH8R/ICH9R/ICH10R/PO/PCH SATA RAID Controller distributed by Gigabyte? I've googled and searched the Gigabyte website, but I can't find the same files as shown on the original CDROM in the attached image.

These files are from late 2009, and I wonder if there has been an update that might fix the issues I have. This is for a Gigabyte GA-P55A-UD3P Rev.1.0 motherboard.

Thanks,
Golden



[Hopalong X]

They have 2010 year drivers on the Gigabye site for your board. 12-9-2010 on the Intel
Click the download tab, select OS
GIGABYTE - Motherboard - Socket 1156 - GA-P55A-UD3P (rev. 2.0)

Intel SATA RAID DriverOS:Windows XP 32bit,Windows XP 64bit,Windows Vista 32bit,Windows Vista 64bit,Windows 7 32bit,Windows 7 64bit,Windows Server 2003 32bit,Windows Server 2003 64bit
10.0.0.10469.19 MB 2010/12/09



[Golden]

Thanks Hopalong - its actually the Rev.1.0 version, but I've already looked there and didn't see the same format as shown in the image. It requires this format to be read during Windows installation....almost a pre-install format, if that makes sense.

Some of those drivers I tried, install from within Windows, which won't help since I haven't actually installed Windows yet. Unless Im missing someething obvious, which is possible...its been a long day.



[Hopalong X]

Rev 1.0 is the Bios version.

Found it and is same as above. That is the new Intel driver for your board.
Intel SATA RAID DriverOS:Windows XP 32bit,Windows XP 64bit,Windows Vista 32bit,Windows Vista 64bit,Windows 7 32bit,Windows 7 64bit,Windows Server 2003 32bit,Windows Server 2003 64bit
10.0.0.10469.19 MB2010/12/09

GIGABYTE - Motherboard - Socket 1156 - GA-P55A-UD3P (rev. 1.0) See REV 1.0

I don't understand the problem I guess. The Moboard CD gives you the old one. Install then go get the new.
OR
Download the new driver. Put it on a Flash Drive and install before even going on the inernet if you want.

You select RAID/AHCI configuration in the Bios before installing Windows or a driver.

Go download your manual it will tell you step by step how to set up the RAID.

Mike



[Golden]

Ahhhh. I din't even bother checking to see if Rev2 was different. Im still worried about nthe file format, but I'll look again with a fresh pair of eyes tommorrow. Thanks Hopalong.



[DeaconFrost]

I haven't seen it mentioned, but why not just get the latest drivers from Intel directly? I only use Intel systems, and always get my Intel-related drivers right from the source.



[Golden]

Rev 1.0 is the Bios version.

Found it and is same as above. That is the new Intel driver for your board.
Intel SATA RAID DriverOS:Windows XP 32bit,Windows XP 64bit,Windows Vista 32bit,Windows Vista 64bit,Windows 7 32bit,Windows 7 64bit,Windows Server 2003 32bit,Windows Server 2003 64bit
10.0.0.10469.19 MB2010/12/09

GIGABYTE - Motherboard - Socket 1156 - GA-P55A-UD3P (rev. 1.0) See REV 1.0

I don't understand the problem I guess. The Moboard CD gives you the old one. Install then go get the new.
OR
Download the new driver. Put it on a Flash Drive and install before even going on the inernet if you want.

You select RAID/AHCI configuration in the Bios before installing Windows or a driver.

Go download your manual it will tell you step by step how to set up the RAID.

Mike

Hi Hopalong. I did follow the instructions, but it BSODS when installing the RAID driver -- see my first post at the top -- the issue is finding the correct drivers (probably Intel) that can be installed during Windows installation.



[ryan9939]

This has updated drivers for all your motherboard's components

GIGABYTE GA-P55A-UD3P bios & drivers
