Intel X-25M SSD real life results

pparks1

Ubuntu/CentOS and Windows
Guru
Gold Member
VIP
Local time
7:56 PM
Messages
7,877
So, i took ownership of my Intel X-25M 80GB Generation 2 SSD drive yesterday. I installed it into a computer at my office where I could benchmark between 2 identically configured systems and just switch back and forth between the 7,200RPM hard drive and the new Intel SSD.

Test System
Dell GX755. Intel Core 2 Duo E7200 @ 2.53ghz, with 2GB of RAM, running Windows 7 64-bit
Seagate Barracuda 7200.10, 7200 RPM, 160GB hard drive for baseline.


Boot Time (from power on to logon screen)
Seagate Sata: 29 seconds
Intel SSD: 17 seconds

Time to launch MS Word
Seagate sata: 4.85 seconds
Intel SSD: 1.14 seconds

Time to install OpenOffice 3.1.1
Seagate sata: 1:48
Intel SSD: 51 seconds

Time to Install Avira Free Personal Antivirus
Seagate sata: 1:19
Intel sata: 37 seconds

Time to scan entire system for Viruses with Avira
Seagate sata: 10:04
Intel SSD: 5:47

Time from power on, through logon, to launch Word, Excel, Powerpoint, then close the apps, then shutdown machine until physical poweroff
Seagate sata : 1:28
Intel SSD: 38 seconds

Boot time for Windows XP SP3 running on Sun VirtualBox 3.0.6
Seagate sata: 27 seconds
Intel SSD: 14 seconds


My Computer My Computer

At a glance

Windows 7 Ultimate x64Intel Q9550 2.83Ghz OC'd to 3.40Ghz8GB G.Skill PI DDR2-800, 4-4-4-12 timingsEVGA 1280MB Nvidia GeForce GTX570
Computer Manufacturer/Model Number
Self-Built in July 2009
OS
Windows 7 Ultimate x64
CPU
Intel Q9550 2.83Ghz OC'd to 3.40Ghz
Motherboard
Gigabyte GA-EP45-UD3R rev. 1.1, F12 BIOS
Memory
8GB G.Skill PI DDR2-800, 4-4-4-12 timings
Graphics Card(s)
EVGA 1280MB Nvidia GeForce GTX570
Sound Card
Realtek ALC899A 8 channel onboard audio
Monitor(s) Displays
23" Acer x233H
Screen Resolution
1920x1080
Hard Drives
Intel X25-M 80GB Gen 2 SSD
Western Digital 1TB Caviar Black, 32MB cache. WD1001FALS
PSU
Corsair 620HX modular
Case
Antec P182
Cooling
stock
Keyboard
ABS M1 Mechanical
Mouse
Logitech G9 Laser Mouse
Internet Speed
15/2 cable modem
Other Info
Windows and Linux enthusiast. Logitech G35 Headset.
My Intel X-25M is quite incredible - it really is like I have a brand new computer (it's a four year old Dell XPS400).

These findings are no surprise to me - everything is a whole level faster. OK, I've changed the processor to a Pentium D and installed 4GB of DDR2 667MHz RAM before now, but neither of those upgrades has shown as much improvement as the SSD has caused.

I am confident that this upgrade will see me through at least to the next iteration of Windows and it is highly recommended to everyone, serious gamers or just people who want to prolong the useability of their current PC.


My Computer My Computer

At a glance

Windows 7 Home Premium x64Pentium D 9454GB 667MHz DDR2NVidia 8800GT
OS
Windows 7 Home Premium x64
CPU
Pentium D 945
Motherboard
Dell DXP051
Memory
4GB 667MHz DDR2
Graphics Card(s)
NVidia 8800GT
Sound Card
Soundblaster Audigy 2 ZS
Monitor(s) Displays
1680 x 1050
Screen Resolution
1680 x 1050
Hard Drives
1 x Intel MX-25 G2 SSD, 1 x 7200RPM Western Digital
PSU
Stock Dell
Case
Stock Dell XPS400
Cooling
Stock Dell XPS400
Internet Speed
13.4Mbps Throughput / 15.3Mbps Synch
nice results, pp! :thumbsup:

an ssd is certainly at the top of my current upgrade list.

*starts counting his pennies*


My Computer My Computer

At a glance

ultimate 64 sp1i5 2500K [email protected]8 gigs GSkill Ripjaws 1600amd hd6950
Computer Manufacturer/Model Number
mickey megabyte 1234
OS
ultimate 64 sp1
CPU
i5 2500K [email protected]
Motherboard
MSI P67A-GD53
Memory
8 gigs GSkill Ripjaws 1600
Graphics Card(s)
amd hd6950
Sound Card
creative x-fi gamer
Monitor(s) Displays
samsung 24"
Screen Resolution
1920x1080
Hard Drives
ocz vertex 2e 60 gig, samsung f3 1tb, buffalo 2tb ext
PSU
antec 550
Case
antec three hundred
Cooling
i'm a cooling fan
Keyboard
saitek eclipse ii
Mouse
logitech g3
Internet Speed
about 4 Mbps
Other Info
i love win7
Seeing these results&figures on hardware so close to what I have is making me feel this would be the best way for a upgrade. Even so, nothing would deter me from getting a 5870 (or nVidia? get your act together guys and put a DX11 card on the wild so we have competitive prices) and core i7 (can I plz haz core i7 850 or 840 at 2,67 and 2,53 to chose from? the damn price is killing me&I want hyperthreading as I'll encode a lot of After Effects projects and stuff like this making full use of 8 logical cores). Sigh. AMD get your act together too so we haz Intel prices go down a little for the damn 4 core CPUs with hyperthreading.
Thank you for posting these figures they are very revealing of what a SSD can really do, even in a low-endish system.


My Computer My Computer

At a glance

Windows 7 x64 UltimateAMD FX 8350Kingston HyperX 8GBAsus EAH4850 512 MB
Computer type
PC/Desktop
Computer Manufacturer/Model Number
custom
OS
Windows 7 x64 Ultimate
CPU
AMD FX 8350
Motherboard
Gigabyte GA-990XA-UD3
Memory
Kingston HyperX 8GB
Graphics Card(s)
Asus EAH4850 512 MB
Sound Card
M-Audio Audiophile USB / Yamaha HS80M monitors
Monitor(s) Displays
Fujitsu-Siemens Amilo LSL 3230T 23" FullHD
Screen Resolution
1080p
Hard Drives
WD Caviar Blue 1TB
Case
Thermaltake
Keyboard
Logitech Wave Pro
Mouse
Logitech Performance MX
Internet Speed
100 mbps

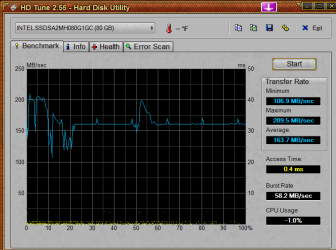

I too have an intel SSD but I think Mine is a first generation (Intel SSDSA2MH080G1GC). My stats are not as fast as yours pparks1 but they are much faster then the two 7600 RPM Western digitals I have. I'm hoping there will be a firm ware for this SSD that I have in the future.


Attachments

  • HDTune_Benchmark_INTEL_SSDSA2MH080G1GC.png
    75.3 KB · Views: 235

My Computer My Computer

At a glance

Dual Booting Windows Vista32 bit And Windows ...ntel(R) Core(TM)2 Quad CPU Q6700 @ 2.66GHz (4...3072MB RAM Available OS Memory: 2816MB RAMMSI RX1600Pro (MS-V040);VisionTek RADEON X130...
Computer Manufacturer/Model Number
White Box
OS
Dual Booting Windows Vista32 bit And Windows 7 Home premium (x64) (build 7600)
CPU
ntel(R) Core(TM)2 Quad CPU Q6700 @ 2.66GHz (4 CPUs),
Motherboard
Board: ASUSTeK Computer INC. P5B-Premium Rev 1.xx Bus Clock:
Memory
3072MB RAM Available OS Memory: 2816MB RAM
Graphics Card(s)
MSI RX1600Pro (MS-V040);VisionTek RADEON X1300 PCI SFF
Sound Card
SoundMAX Integrated Digital HD Audio
Monitor(s) Displays
Envision SP2107W [Monitor] (22.0"vis, s/n B7976JA007061, Jun
Screen Resolution
1680x1050
Hard Drives
PLEXTOR DVDR PX-712A ATA Device [CD-ROM drive]
3.5" format removeable media [Floppy drive]

INTEL SSDSA2MH080G1GC [Hard drive] (80.03 GB) -- drive 2, s/n CVEM926000FK080DGN, rev 045C8820, SMART Status: Healthy
IOMEGA ZIP 100 SCSI Disk Device -- d
PSU
Have 2 PSU's Installed
Case
Coolmaster
Keyboard
Microsoft Internet Keyboard Pro Hot Keys
Mouse
Logitec MX500
Internet Speed
DSL
Other Info
Rollback Rx system repair software by Horizon Data Systems
Texas Instruments 1394 OHCI Compliant Host Controller
Acronis True Image Backup Archive Explorer
HID-compliant device
Microsoft PS/2 Mouse
General Purpose USB Hub
Microsoft Internet Keyboard Pro Composite Device
USB Mass Storage Device
USB Root Hub (7x)
B:\
I have the Intel SSD-E 32Gb. It is something amazing for sure, I only wish it was bigger. I am waiting on a 160Gb Extreme Gen3. Now that baby will be sweet!
