Solved Lian-Li Front Panel Wire Harness/Pin-out Diagram

garuda

garuda

New member
Power User
Local time
10:16 PM
Messages
89
While building a new system in an older Lian-Li tower chassis, I noticed that the polarity of the Lian-Li mini-connectors of the Front Panel Wiring Harness are not designated on the chassis harness. However, my new ASUS mobo manual indicated polarity markings for the Front Panel Header Pins. After some research, I gathered some info and put together a wiring harness diagram to show the connector polarity in order to correctly connect them to my new mobo; if polarity matching is required.

CAVEAT: Informed users have indicated that LED lights likely require polarity connections. However, they contend that normal switches do not require polarity matching. Please use your own discretion or consult your mobo manual for requirements.

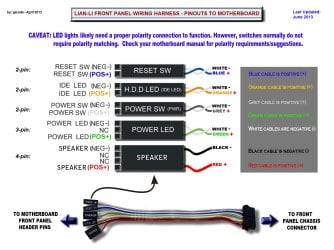

Please click on attached photo to view diagram.


Attachments

  • +Lian-Li Front Panel Wiring-2.jpg
    +Lian-Li Front Panel Wiring-2.jpg
    240.4 KB · Views: 8
Last edited:

My Computer My Computer

At a glance

Windows 7 Ultimate x642x - Xeon E5-2687W128GB Kingston - (2ea kits – 4x16GB)Gigabyte GTX-680 & EVGA GTX-Titan
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Homemade with cube tower
OS
Windows 7 Ultimate x64
CPU
2x - Xeon E5-2687W
Motherboard
ASUS Z9PE-D8 WS
Memory
128GB Kingston - (2ea kits – 4x16GB)
Graphics Card(s)
Gigabyte GTX-680 & EVGA GTX-Titan
Sound Card
Realtek ALC898 8-chan audio
Monitor(s) Displays
2ea - Samsung T260HD 25.5-Inch LCD HDTV / Monitors
Screen Resolution
1920x1200
Hard Drives
8 ea. Crucial & Samsung EVO 2TB SSDs; misc 4ea. 8TB external Seagate spinners.
PSU
Corsair AX-1200
Case
Lian-Li cube custom
Cooling
2x Dynatron R-17 - CPU Air sinks (160watts TDP)
Keyboard
HP slimline wireless
Mouse
Microsoft ARC
Internet Speed
Faster than a speeding bullet.
Antivirus
Norton Security 360 - 2020
Well done on the diagram. :)
