Monitor ran fine with 75Hz, Now with new computer the picture gets :(

[sisrace]

Hi.. Sorry for weid title but i could fit funny there so i put a sad face instead.
So on my last computer with nvidia gt 430 gpu i oc'd my monitor to 75Hz (Freaking loved that speed)
Now with the gtx 660 when i oc the exact same monitor to 75Hz the picture gets messed up and the resolotion gets completely out of the normal. i did set the pixel ratio to 1600x900 that is the stock one..
Is there a colour setting on the monitor i have to fix or is it another thing?
If i way worse gpu can handle it so should a gtx 660 i feel...



[DustSailor]

Hey mate,

First, check the box that says 'hide modes that this monitor cannot display'. Is 75 still listed? If it is, let me know.



[sisrace]

Hey mate,

First, check the box that says 'hide modes that this monitor cannot display'. Is 75 still listed? If it is, let me know.

Oh no im using custom resolution setting and the evga monitor overclocker tool, becouse if i did what you said it would only go with 60hz I managed to get the monitor to 68hz (my secondary monitor) and my main Dvi monitor to 66Hz, i think though that getting a dual link dvi coord will help me get to atleast 70hz. becouse i care the most with my main monitor becouse its the one i work and play on the most obviously



[DustSailor]

I think I found your problem.

Unfortunately, I am no expert in customizations and overclocking, so someone else my have to input here.



[sisrace]

I think I found your problem.

Unfortunately, I am no expert in customizations and overclocking, so someone else my have to input here.

ok. and my prob was? also, the thing that happens with the monitor at that refresh rate is that the reslolution gets messed up



[DustSailor]

im using custom resolution setting and the evga monitor overclocker tool, [...] I managed to get the monitor to 68hz (my secondary monitor) and my main Dvi monitor to 66Hz [...]

*Edit - [This here is]* your problem



[AddRAM]

You should really be running it at 60 Hz



[Britton30]

im using custom resolution setting and the evga monitor overclocker tool, [...] I managed to get the monitor to 68hz (my secondary monitor) and my main Dvi monitor to 66Hz [...]

your problem

You should really be running it at 60 Hz

It should be 60Hz, no more, no less. Is the picture is fuzzy at 60Hz, you have some other problem such as not adjusting the monitor to its native resolution.

LCD monitors ain't as forgiving and the old CRT ones were.



[alphanumeric]

If its an LCD monitor refresh rate does not matter, they don't refresh like a CRT does. The LED's are either on or off, they don't "refresh". Leave it at 60 HZ if that's what the manual says. Increasing it will have no effect on the picture quality. You should also be running it at the native resolution. Anything else is going to degrade the picture quality. The image on a CRT monitor has to be constantly refreshed by the electron beam in the CRT. At low refresh rates it can cause flicker and give you a head ache. LCD's monitors do not flicker like CRT's do. IMHO there is absolutely no point in trying to overclock an LCD monitor. There really isn't anything to be gained by doing it.



[sisrace]

okey. i have seen what you have said. i have been running my old monitor a long time with about 70Hz
And now im running both monitors with 66Hz. I just need to say that Sure 60Hz is nice but having the monitors at 66Hz does a ton of difference. Sure the mouse and windows does move smoother but bearly noticable so its just in the margin or error. but after long periods of sitting in front of the monitor you just feel a lot more eased eye and brainwise. even that small increase is such an ease on you. quite interesting. though the picture quality is exactly as good.. also quite interesting, Though if im running 6Hz faster than the monitors are "made" for. What dangers could this cause? I have only seen that extreme oc may just burn the monitor but 75Hz is not anything risky at all, so 66Hz would not decrease lifetime and increase heat by very much at all



[alphanumeric]

The key words in my post are "If its an LCD monitor ". So is this a CRT or LCD monitor?



[sisrace]

The key words in my post are "If its an LCD monitor ". So is this a CRT or LCD monitor?

Well in my computer specs it tells you what it is but they are both lcd. are there even crt monitors out there to buy?



[Britton30]

The key words in my post are "If its an LCD monitor ". So is this a CRT or LCD monitor?

Well in my computer specs it tells you what it is but they are both lcd. are there even crt monitors out there to buy?

sometimes people are fooling with hardware not in their specs. :huh:



[sisrace]

The key words in my post are "If its an LCD monitor ". So is this a CRT or LCD monitor?

Well in my computer specs it tells you what it is but they are both lcd. are there even crt monitors out there to buy?

sometimes people are fooling with hardware not in their specs. :huh:

But though i would not run such a powerful machine with dual monitros if they were CRT monitors XD No but really.. just why shouldnt i be oc'ngmy monitor, i have runned them 2 days straight now without them getting hotter than normal and without bad quality, they are just as normal but everyithing runs smoother and better



[Britton30]

Sure, it's fine to run them that way, it is your stuff. You have read what we all recommend. Like any hardware that's artificially forced to run beyond it's engineered capabilities, it will wear out faster.



[sisrace]

Sure, it's fine to run them that way, it is your stuff. You have read what we all recommend. Like any hardware that's artificially forced to run beyond it's engineered capabilities, it will wear out faster.

Yeah im aware of that.. but totaly worth it for feeling much more eased while using the computer.. Also when the monitors die i will just get a pair of 120-144hz monitors (just becouse they are awesome for desktop use i will never reach thoose fps with my computer) and also when thoose monitors die i will also have a much better economy...



[alphanumeric]

The key words in my post are "If its an LCD monitor ". So is this a CRT or LCD monitor?

Well in my computer specs it tells you what it is but they are both lcd. are there even crt monitors out there to buy?

Ok then, bumping up the refresh rate above the recommended isn't going to make your picture better or any easier on your eyes.

Refresh rate - Wikipedia, the free encyclopedia

Liquid Crystal Displays[edit]

Refresh rate or the temporal resolution of an LCD is the number of times per second in which the display draws the data it is being given. Since activated LCD pixels do not flash on/off between frames, LCD monitors exhibit no refresh-induced flicker, no matter how low the refresh rate. However, high refresh rates may result in visual artifacts that distort the image in unpleasant ways. High-end LCD televisions now feature up to 600 Hz[citation needed] refresh rate, which requires advanced digital processing to insert additional interpolated frames between the real images to smooth the image motion. Such high refresh rates may not be supported by pixel response times, resulting in distorted images.
For a refresh rate of 600Hz to be displayed correctly, a LCD display would require a response time of approximately 1.667 (5/3) milliseconds GtG (grey-to-grey). In addition to the technical aspects of achieving such a high refresh rate, there are limits to the capability of the human eye. However, improving the response time of LCD pixels would improve the image quality for refresh rates that are on the fringe of what the human eye is capable of processing.



[A Guy]

I have seen people say that 75Hz is smoother, etc. An LCD panel is just a different animal. Unlike a HDTV that artificially adds frames by looking at the previous frame, and the next and calculating what the extra frame should be, an LCD monitor would just display the extra frames (75 vs 60). In theory, that would result in smoother video, since the change between one frame and another is quicker. IF the monitor supports the higher frequency, then there would be no harm in running it at the higher rate. But most monitors will not support 75Hz, at least at higher resolutions.

Look at this tutorial, and look at all supported rates. If a 75Hz rate is listed, note the screen resolution.

http://www.sevenforums.com/tutorials/256-screen-refresh-rate-display-settings.html



Also, just because the monitor supports a frequency/resolution, doesn't mean the GPU/driver will. I don't game, so I am unsure whether a games graphics would make the difference noticeable, but in regular PC use, I doubt it. And at 60Hz and above, there would be no noticeable flicker effect, so it wouldn't be perceptible as to effect eye strain for instance.

A Guy



[AddRAM]

I loved my Dell CRT monitor, the picture was sooooo nice

I will always cherish the time we spent together



[alphanumeric]

I have seen people say that 75Hz is smoother, etc. An LCD panel is just a different animal. Unlike a HDTV that artificially adds frames by looking at the previous frame, and the next and calculating what the extra frame should be, an LCD monitor would just display the extra frames (75 vs 60). In theory, that would result in smoother video, since the change between one frame and another is quicker. IF the monitor supports the higher frequency, then there would be no harm in running it at the higher rate. But most monitors will not support 75Hz, at least at higher resolutions.

Look at this tutorial, and look at all supported rates. If a 75Hz rate is listed, note the screen resolution.

http://www.sevenforums.com/tutorials/256-screen-refresh-rate-display-settings.html

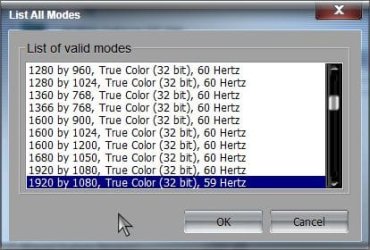

View attachment 302551

Also, just because the monitor supports a frequency/resolution, doesn't mean the GPU/driver will. I don't game, so I am unsure whether a games graphics would make the difference noticeable, but in regular PC use, I doubt it. And at 60Hz and above, there would be no noticeable flicker effect, so it wouldn't be perceptible as to effect eye strain for instance.

A Guy

Good point. Yes, they both play a part, your video card has to support what your monitor wants. If you had a CRT monitor connected and looked at the screen you posted you'd see a lot more options with something other than the 60Hz at the end. Anyway, I had my say and I'm not going to debate it any more. It's his gear and he can do what he wants with it. I don't think anything is going to blow up as a result of what he is doing I just don't see the point in doing it is all.
