Solved My 840 EVO looks faster than my 950 Pro- what have I got wrong?

[toy264]

These are the Crystal Diskmarks comparing my Samsung 840 EVO boot drive and a newly formatted 950 Pro 512 GB . The 840 looks to me like it's performing much better than the 950, but I may be misinterpreting the numbers or using the wrong test setup. Are the results about what's to be expected or am I missing something?
The 840 has the OS and program files. The 950, the F drive, has no data on it yet. The processor is an Intel 5930K at stock 3.5 GHz on an Asus X99-E WS motherboard with 32GB ddr4 RAM. OS is Win7 Pro.



[AddRAM]

Run this benchmark

Disk Benchmark Software | ATTO

And here`s another

AS SSD Benchmark - Download


Nice setup you got there, Welcome to the club



[toy264]

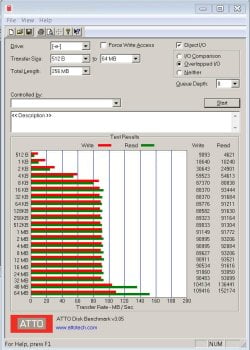

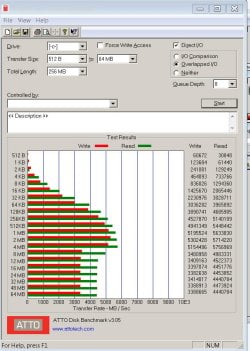

Here they are. C is the 840, E is the 950. Any help interpreting them would be very much appreciated.
I see the rate of the 950 starts going up at the 64 Mb transfer size point. Should I up that upper limit to get a better comparison? To be honest, I don't know how that influences the result. I have a lot to learn.



[AddRAM]

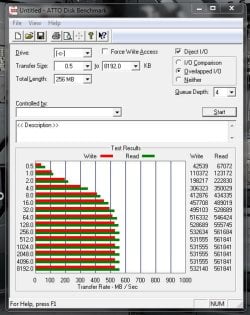

Both of your results look strange compared to my 850 Pro results, but I`m using a pic from older software, but not too old I just built this PC within the last 6 months.

I`m running the test with the same software you used, I`ll post a pic in a minute.

WHS knows how to read these results, I haven`t seen him here lately, but send him a PM

http://www.sevenforums.com/member.php?u=2561



[AddRAM]

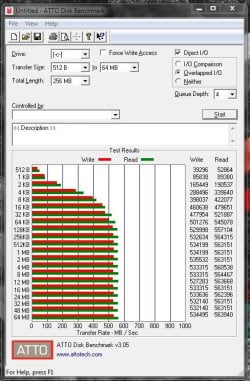

My results, Not sure why you`re getting such different results, you didn`t change anything with the benchmark did you ?



[AddRAM]

Is this the 950 Pro you have ?

Access Denied

Do you have your 840 Evo connected to an Intel sata port ?

And I don`t think you can change the upper limit, at least I can`t go past 64 MB

Also, fix your memory capacity in your System specs, you have 32 MB there.

You also have your CPU listed wrong.



[toy264]

Yes, that's exactly the Samsung 950 Pro NVME drive I have, but I'll have to open the case and check the manual to verify the 840 EVO is on the Intel controller. I'll check the drivers too. Not sure what you meant earlier by changing the benchmark, but I wouldn't know how to anyway.



[toy264]

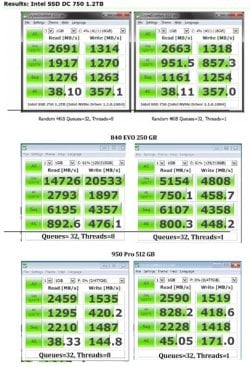

[FONT=&quot]In order to compare my disc speeds to a known source, I went to the Crystal Diskmark website* and clipped out their Intel 750 example test result and pasted it into a Photoshop image. Then I ran the same benchmark on each of my drives- same queues, same threads- and after each test, I used a snipping tool to capture the result and pasted it side-by-side below 750 test for comparison.
[/FONT]

[FONT=&quot]Before anyone suggests that these results could be faked, let me just say I wouldn't disrespect the forum by doing such a thing, even if I knew how. It's just cut and paste; no manipulation.[/FONT]

[FONT=&quot]As you can see, the 950 Pro pretty much held its own against the Intel 750, but the 840 EVO seemingly, (and I stress seemingly) way outperformed it [/FONT]—[FONT=&quot] by it is much as 20 times in the case of 4K reads. I'm under no illusion that I this is the fastest SSD in the universe, but either a driver or controller, or maybe quantum foam, is messing with me. Anyone have a recommendation?[/FONT]


[FONT=&quot]* Overview[/FONT]



[wasnotwas]

Are you testing the 2 disks on the same port ? I recently changed my 2600K system to SSD and was disappointed with the speed tests ( < 50% expected ). I had the SSD plugged in to a Marvell port on my Z68A-GD80 mobo, so I tried an Intel port and the speed went up to the correct figure.



[essenbe]

Toy264, it looks like you have Rapid mode turned on with your 840 Pro. Rapid sets up basically a ram disk. The tests measure the Ram disk, not the SSD.



[toy264]

*Forehead slap* Thank you!



[essenbe]

No problem. You're very welcome.



[AddRAM]

Can you run the tests again with ATTO and post the results.



[toy264]

I wlll, but it will be next week before I can. Bad, bad experience changing the partitioning on that super-fast drive.
