Solved need help with raid setup

N

novice13

New member
Local time
6:03 AM
Messages
19
i am trying to set up raid on my ga-990fxa-ud3, but when i try to install win7 64 it tells me i need a driver for my dvr219L at the begining of the setup, i didnt receive a disc with the drive and cant find drivers any where, i can however install windows without raid activated and both drives are recognised please help me!


My Computer

OS
windows 7 pro x64
CPU
AMD phenom II x4 965 black edition
Motherboard
gigabyte GA-990FXA-UD3
Memory
8 GB corsair vengeance DDR3
Graphics Card(s)
Raedeon Sapphire HD6950 2GB
Monitor(s) Displays
2x LG flatron 24" HD1080
Hard Drives
2x WD caviar blue sata III
PSU
corsair TX650 V2
Case
cooler master HAF912 advanced
Cooling
Antec Kuhler H2O 620
Keyboard
Razer Arctosa Black
Mouse
logitech MX 518 gaming mouse
Internet Speed
cable

My Computer

Computer Manufacturer/Model Number
Self Build
OS
Windows 7 Ultimate 64Bit (SP 1)
CPU
Intel Core i7 4770K OC
Motherboard
ASUS Maximus VII Ranger
Memory
32GB 1600Mhz DDR3
Graphics Card(s)
MSI GTX580 Twin Frozr II/OC and NVIDIA GTX 970
Sound Card
On-Board and Soundblaster Recon 3 D headset
Monitor(s) Displays
x2 Flat screen 21" LG displays + x1 LG W2363D (3D)
Hard Drives
5 internal Hard Drives:
1 x WD 120GB Solid State
4 x WD 1TB (CAVIAR BLACK 1TB 32MB 7200 SATA) as Raid 5 array
PSU
Dark Power Pro 10 1200W
Case
CoolerMaster HAF 932 Case - Black
Cooling
Thermaltake Contac21 cooler
Keyboard
Cyborg
Mouse
Razor Mamba
Internet Speed
0.5 Mb - (Benefits of rural location!) & 24 MB Sat
Antivirus
MSE
Other Info
Teaming 2 GB network connection to Wired 1GB switch.
Connected to 37TB (Raid 5) of network storage on a wired 1GB lan.
(Mixture of internal hard drives, 1TB, 2TB, 4TB & 16TB Terastations)
i have the raid driver on the motherboard disc and have tried to use this but it wont work it is saying that it is missing a driver for the dvd drive as soon as i start the setup


My Computer

OS
windows 7 pro x64
CPU
AMD phenom II x4 965 black edition
Motherboard
gigabyte GA-990FXA-UD3
Memory
8 GB corsair vengeance DDR3
Graphics Card(s)
Raedeon Sapphire HD6950 2GB
Monitor(s) Displays
2x LG flatron 24" HD1080
Hard Drives
2x WD caviar blue sata III
PSU
corsair TX650 V2
Case
cooler master HAF912 advanced
Cooling
Antec Kuhler H2O 620
Keyboard
Razer Arctosa Black
Mouse
logitech MX 518 gaming mouse
Internet Speed
cable
Can you copy it to a USB stick?

Regards
UKMedia


My Computer

Computer Manufacturer/Model Number
Self Build
OS
Windows 7 Ultimate 64Bit (SP 1)
CPU
Intel Core i7 4770K OC
Motherboard
ASUS Maximus VII Ranger
Memory
32GB 1600Mhz DDR3
Graphics Card(s)
MSI GTX580 Twin Frozr II/OC and NVIDIA GTX 970
Sound Card
On-Board and Soundblaster Recon 3 D headset
Monitor(s) Displays
x2 Flat screen 21" LG displays + x1 LG W2363D (3D)
Hard Drives
5 internal Hard Drives:
1 x WD 120GB Solid State
4 x WD 1TB (CAVIAR BLACK 1TB 32MB 7200 SATA) as Raid 5 array
PSU
Dark Power Pro 10 1200W
Case
CoolerMaster HAF 932 Case - Black
Cooling
Thermaltake Contac21 cooler
Keyboard
Cyborg
Mouse
Razor Mamba
Internet Speed
0.5 Mb - (Benefits of rural location!) & 24 MB Sat
Antivirus
MSE
Other Info
Teaming 2 GB network connection to Wired 1GB switch.
Connected to 37TB (Raid 5) of network storage on a wired 1GB lan.
(Mixture of internal hard drives, 1TB, 2TB, 4TB & 16TB Terastations)
i tried with a usb stick but it says there is no driver and have now tried the driver on the link you provided, still no luck, it dosent get to the point where you would normally install the raid driver and select the drive to install to


My Computer

OS
windows 7 pro x64
CPU
AMD phenom II x4 965 black edition
Motherboard
gigabyte GA-990FXA-UD3
Memory
8 GB corsair vengeance DDR3
Graphics Card(s)
Raedeon Sapphire HD6950 2GB
Monitor(s) Displays
2x LG flatron 24" HD1080
Hard Drives
2x WD caviar blue sata III
PSU
corsair TX650 V2
Case
cooler master HAF912 advanced
Cooling
Antec Kuhler H2O 620
Keyboard
Razer Arctosa Black
Mouse
logitech MX 518 gaming mouse
Internet Speed
cable
Last edited:

My Computer

Computer Manufacturer/Model Number
Self Build
OS
Windows 7 Ultimate 64Bit (SP 1)
CPU
Intel Core i7 4770K OC
Motherboard
ASUS Maximus VII Ranger
Memory
32GB 1600Mhz DDR3
Graphics Card(s)
MSI GTX580 Twin Frozr II/OC and NVIDIA GTX 970
Sound Card
On-Board and Soundblaster Recon 3 D headset
Monitor(s) Displays
x2 Flat screen 21" LG displays + x1 LG W2363D (3D)
Hard Drives
5 internal Hard Drives:
1 x WD 120GB Solid State
4 x WD 1TB (CAVIAR BLACK 1TB 32MB 7200 SATA) as Raid 5 array
PSU
Dark Power Pro 10 1200W
Case
CoolerMaster HAF 932 Case - Black
Cooling
Thermaltake Contac21 cooler
Keyboard
Cyborg
Mouse
Razor Mamba
Internet Speed
0.5 Mb - (Benefits of rural location!) & 24 MB Sat
Antivirus
MSE
Other Info
Teaming 2 GB network connection to Wired 1GB switch.
Connected to 37TB (Raid 5) of network storage on a wired 1GB lan.
(Mixture of internal hard drives, 1TB, 2TB, 4TB & 16TB Terastations)
i have it set to raid, had a look at the sticky but it didnt really help


My Computer

OS
windows 7 pro x64
CPU
AMD phenom II x4 965 black edition
Motherboard
gigabyte GA-990FXA-UD3
Memory
8 GB corsair vengeance DDR3
Graphics Card(s)
Raedeon Sapphire HD6950 2GB
Monitor(s) Displays
2x LG flatron 24" HD1080
Hard Drives
2x WD caviar blue sata III
PSU
corsair TX650 V2
Case
cooler master HAF912 advanced
Cooling
Antec Kuhler H2O 620
Keyboard
Razer Arctosa Black
Mouse
logitech MX 518 gaming mouse
Internet Speed
cable
novice13 said:
i have it set to raid, had a look at the sticky but it didnt really help
Click to expand...


Okay

Do you get to the option of selecting Custom Installation? If so, and there is no data that you need on the hard drive, click Drive Options (advanced) and select the partion that you want to format. Only do this if you are happy to lose all data on the HDD.

Regards
UKMedia


My Computer

Computer Manufacturer/Model Number
Self Build
OS
Windows 7 Ultimate 64Bit (SP 1)
CPU
Intel Core i7 4770K OC
Motherboard
ASUS Maximus VII Ranger
Memory
32GB 1600Mhz DDR3
Graphics Card(s)
MSI GTX580 Twin Frozr II/OC and NVIDIA GTX 970
Sound Card
On-Board and Soundblaster Recon 3 D headset
Monitor(s) Displays
x2 Flat screen 21" LG displays + x1 LG W2363D (3D)
Hard Drives
5 internal Hard Drives:
1 x WD 120GB Solid State
4 x WD 1TB (CAVIAR BLACK 1TB 32MB 7200 SATA) as Raid 5 array
PSU
Dark Power Pro 10 1200W
Case
CoolerMaster HAF 932 Case - Black
Cooling
Thermaltake Contac21 cooler
Keyboard
Cyborg
Mouse
Razor Mamba
Internet Speed
0.5 Mb - (Benefits of rural location!) & 24 MB Sat
Antivirus
MSE
Other Info
Teaming 2 GB network connection to Wired 1GB switch.
Connected to 37TB (Raid 5) of network storage on a wired 1GB lan.
(Mixture of internal hard drives, 1TB, 2TB, 4TB & 16TB Terastations)

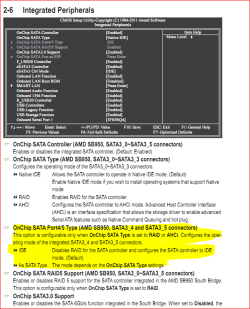

From the manual for that board,

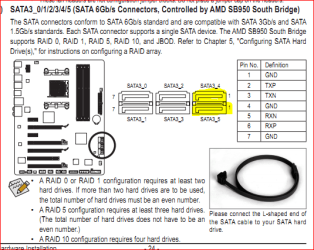

Make sure you have the DVD drive connected to either SATA port 4 or 5 if it isn't already (these two can be configured independently of the other four when RAID is enabled),


then double check in the bios that it is set to IDE mode. That should make it so that Windows doesn't ask for a driver for the DVD drive.


My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Me
OS
Win 7 Ultimate x64
CPU
FX-8350 @ 4.6 GHz so far
Motherboard
Asus M5A97 EVO
Memory
ADATA XPG V1 Series Black 8GB DDR3 1600
Graphics Card(s)
Sapphire R9 270x Dual-X
Sound Card
Xonar DGX w/ Corsair Vengence 1300
Monitor(s) Displays
Acer S232HL Abid
Screen Resolution
1920x1080
Hard Drives
120 GB OCZ Vertex 3
500 GB Seagate 7200.12
PSU
Antec Earthwatts 650W Green
Case
Antec Three Hundred
Cooling
Cooler Master 212 EVO
Keyboard
Logitech G510
Mouse
Logitech G500s
Internet Speed
35000/3000
thanks guys for all the help, I had the dvd in sata 2 moved it to 4, all good now :D


My Computer

OS
windows 7 pro x64
CPU
AMD phenom II x4 965 black edition
Motherboard
gigabyte GA-990FXA-UD3
Memory
8 GB corsair vengeance DDR3
Graphics Card(s)
Raedeon Sapphire HD6950 2GB
Monitor(s) Displays
2x LG flatron 24" HD1080
Hard Drives
2x WD caviar blue sata III
PSU
corsair TX650 V2
Case
cooler master HAF912 advanced
Cooling
Antec Kuhler H2O 620
Keyboard
Razer Arctosa Black
Mouse
logitech MX 518 gaming mouse
Internet Speed
cable
