Solved Need to Resize or Remove System Reserved Partition

[Evil Nemesis]

Hi, I have a software Asus Express Gate which refuse to start because I don't have enough space available in my System reserved partition, (ya I know this is the reason co'z I've searched alot) so this is why I want to resize my system reserved partition which is currently on 100MB but the problem is that I don't know how but I have a Dynamic 1TB Disk, it could be basic disk but I don't want to go through all that formatting and reinstalling windows, deleting partitions and so on.

I could find a way to convert my dynamic disk to basic without loosing data , but still I think it's much risky , here's the article and software which converts dynamic disk to basic without loosing data :

TeraByte Unlimited Knowledge Base
Convert dynamic disks to basic in Windows XP/2000/2003/2008/Vista/Windows 7 without data loss.
Windows Server Partition Manager Software, Partition Magic Server alternative for Windows Server 2000/2003/Home Server/2008 - EaseUS Partition Master Server Edition.

but as of the first article I can't do that because maybe i'm on dynamic disk, so I can't see the option mark as active co'z it's always disabled..

Now the only option left for me is I think convert my disk to Basic, which is kinda freaks me out, but please read these out and help me I really want that software express gate to run on my system..

Windows 7 Ultimate X64.



[seavixen32]

Check this WSF tutorial: http://www.sevenforums.com/tutorials/26829-convert-dynamic-disk-basic-disk.html

You can then boot into Easeus Partition Wizard to shrink your C drive and extend the system reserved partition.



[gregrocker]

Use free Partition Wizard bootable CD version 4 to convert Dynamic to Basic non-destructively. It's still a free feature in that version: pw422.zip ISO - Windows Live



[Evil Nemesis]

Thanks gregrocker, downloading it now, but please share the tutorial how to do this with partition wizard.



[ignatzatsonic]

Thanks gregrocker, downloading it now, but please share the tutorial how to do this with partition wizard.

I'm not sure there is a tutorial on this site for that task with that tool.

But look here:

Convert dynamic disk to basic disk with Partition Wizard?

http://www.partitionwizard.com/video-help/diskconvertdynamic/diskconvertdynamic.html



[seavixen32]

I gave you this link in post #2 - look at Option 4.

http://www.sevenforums.com/tutorials/26829-convert-dynamic-disk-basic-disk.html



[Evil Nemesis]

well I have already purchased EASUS so I can't afford buying another one, as the link you provided says I need Professional Edition. So I think I will give EASUS a shot, but what can you think of time frame ? How much time will it take on a 1 TB disk ?



[ignatzatsonic]

is it possible to run this partition wizard software from within windows 7 ?

Yes, but that method is not as problem-free, according to what I have read here. Make a bootable disk to reduce chances of complications.



[seavixen32]

is it possible to run this partition wizard software from within windows 7 ?

Yes, but that method is not as problem-free, according to what I have read here. Make a bootable disk to reduce chances of complications.

I agree entirely.



[seavixen32]

Gregrocker also gave you this link for the free version of the Partition Wizard ISO.

https://skydrive.live.com/?cid=b0a22789320e3247&sc=documents&id=B0A22789320E3247%21215

Just burn the ISO to a blank disc and boot into it - there's no need to spend any more money.



[Evil Nemesis]

okay going to burn the dvd and do this.



[seavixen32]

I hope it helps solve your problem - please keep us posted.



[Evil Nemesis]

well, well, just finished installing windows 7.

Booted with Partition Wizard DVD Converted the DIsk To Basic - took few secs

Resized C Drive to Reduce 500+ MB -took near 45 mins to move data

Now I have unallocated space of 700+ MB (I don't care)

Set C Drive to Active

Tried to Convert All 3 Primary Partitions to Logical Drives but Only D and E could be done , Why not F ?

When I restarted I got BootMGR error , so I didn't know how to solve that so I think of reinstalling windows 7 by formatting c drive (I lost my assassin's creed revelations) save files :S

Now installing ton of apps , games and doing windows 7 x64 settings.

Thanks alot guys, Express Gate is now working pretty smooth, I will merge that remaining 700+ MB someday to my C drive but it will take some Time I guess.



[gregrocker]

When I posted up the zip file to older PW version 4.2 saying that it Basic Conversion is still a free function in that version, why would you think you have to pay for it? Hello?

Post up a screenshot of your maximized Disk Mmgt drive map with listings showing all columns. Use Snipping TOol in Start Menu. We'll give you easy steps to recover the 700 mb - where do you want it?

Win7 needs a Primary boot partition. Use Logical for data only. YOu can have up 3 Primary + unlimited Logical sub-partitions.



[Evil Nemesis]

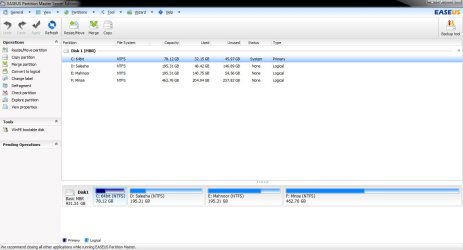

well I did convert the F drive to Logical and resized the c drive (restarted pc for operation) to Merge that 700MB space into c drive, screenshot attached.

On a side note how was it possible to fix boot manager co'z when I inserted the Win7 dvd it started the installation after partitioning, I mean there was even no option to repair windows:shock:



[gregrocker]

On a side note how was it possible to fix boot manager co'z when I inserted the Win7 dvd it started the installation after partitioning, I mean there was even no option to repair windows:shock:

Please restate this question as I cannot understand it.

If you boot Win7 DVD there should be a Repair My Computer choice on second screen as shown in Option Two here: System Recovery Options .

But repair might be impossible with a Dynamic Disk, which is meant to span partitions across multiple HD's.

Is everything working fine now?



[Evil Nemesis]

I was trying to ask how can you fix your boot manager ? for example if you just deleted your system reserved partition , how you're gonna copy boot files into c drive ?

and no the repair screen never showed up , it just went auto installing and copying files then come to a halt on partitioning window !

and yeah thanks, everything is in it's place now.



[gregrocker]

I was trying to ask how can you fix your boot manager ? for example if you just deleted your system reserved partition , how you're gonna copy boot files into c drive ?

In that case you'd mark the Win7 partition Active: Partition - Mark as Active (Method Two)

Then run Startup Repair - Run 3 Separate Times until Win7 boots on its own.

and no the repair screen never showed up , it just went auto installing and copying files then come to a halt on partitioning window !

Is it possible you're using Factory OEM Recovery disk instead of WIn7 installation DVD?

I've not heard of a booted Win7 DVD not having Repair console on second screen unless it's modded somehow by OEM.

I would make a System Repair Disk



[Evil Nemesis]

well i'll check it out again, and thanks for your step by step help.
