Network Issue with 2 router

Brandnick

New member
Local time
7:07 PM
Messages
1
I have two 2 routers on 1 network and everything works. However I can’t see any other device (computer) on the network


Below is my setup
Router 1
Linksys Connected to the cable modem
It's setup as an access point
Ip address 192.168.1.1
Subnet mask 225.255.255.0
See Attached Router 1_setup and Router_1_wireless

Router 2
Linksys router with dd-wrt connected wirelessly using wireless mode client bridge
Router address is as follows
Local ip address 192.168.1.2
Subnet mask 225.255.255.0
Gateway 192.168.1.1
See Attached Router 2_setup and Router 2_wireless
Connected to Router 2 I have 1 computer setup via wired Port 1 with the following static IP address
Computer (1)
Local ip address 192.168.1.110
Subnet mask 225.255.255.0
Gateway 192.168.1.1
As I stated above , the internet works on this computer I can’t see any other device (computer) on the network. Note other devices connect to router 1 since it’s an access port wirelesly like a IPAD 2 and Two Laptop and wireless Camera. I cant see anything them from the computer on router 2

I also attached a picture of network sharing showing no devices also with a picture of network infomation of my IPAD 2 on the same network connecting to router 1 access point and still can see and devices.

Lastly I added a picture of my ipconfig/all for the computer connected to router 2

Please Help


Attachments

  • Router 1_Setup.JPG
    Router 1_Setup.JPG
    56.3 KB · Views: 9

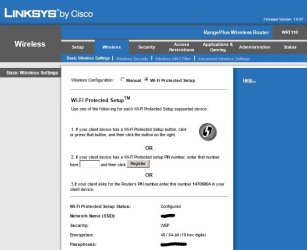

  • Router 1_Wireless.JPG
    Router 1_Wireless.JPG
    51.8 KB · Views: 9

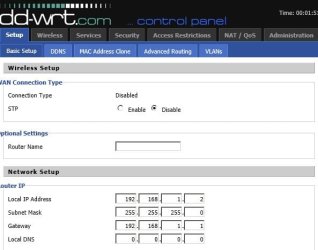

  • Router 2_setup.JPG
    Router 2_setup.JPG
    36.3 KB · Views: 8

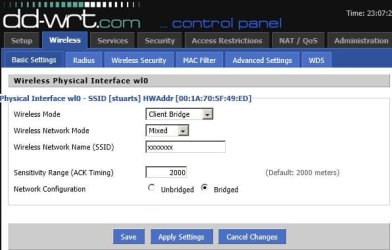

  • Router 2_Wireless.JPG
    Router 2_Wireless.JPG
    38.1 KB · Views: 8

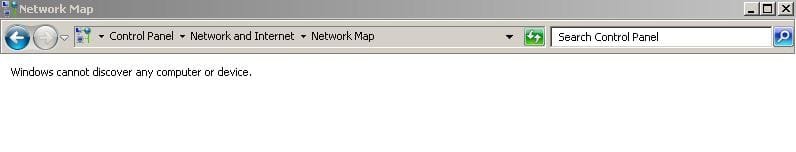

  • No Devices.JPG
    No Devices.JPG
    17.2 KB · Views: 5
  • IPAD 2.jpg
    IPAD 2.jpg
    62.4 KB · Views: 9

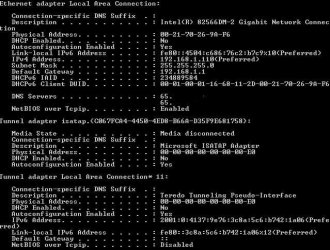

  • ipconfig.all.JPG
    65.1 KB · Views: 8
Last edited:

My Computer

OS
Windows 7 ultimate
Is computer 2, on router 2, running windows xp? Also have you disabled all firewall settings on the ddwrt router under the security tab?


My Computer

OS
Windows 7 Professional 32
