No (high definition audio) playback devices available

bethy1234

New member
Member
Local time
1:49 PM
Messages
74
Good evening team.

My specific problem is that I have no playback devices available in win7 64bit. I have just installed the "Realtek_Win7-64_Win7_Vista64_Vista_XP64_XP(6378).zip" driver for my M3A770DE mobo.

I would appreciate any advice and guidance in helping resolve my problem.

Ultimately, I wish to record my synthesizer thru my "line in" and a guitar thru the rear "mic in".

If there is a document you can point me to , i would sure appreciate it.

I enclose a couple of images showing my state of affairs.

thanks for looking


Attachments

  • recording.png
    14.1 KB · Views: 13

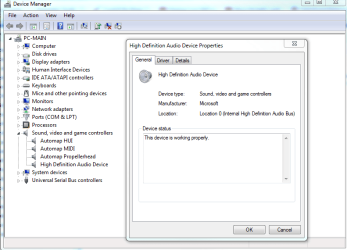

  • device manager.png
    device manager.png
    27 KB · Views: 20
  • playback.png
    11.5 KB · Views: 15

My Computer My Computer

At a glance

windows 7
OS
windows 7
Hmmm.........2 microphones?

Have you right clicked in the white area of that recording tab in the first pic? You may see a choice pop up for "enable disabled devices" and "enable disconnected devices". Don't ask my why they do it that way.

Did you get that Realtek driver from Realtek, from a disc, or from your motherboard manufacturer?


My Computer My Computer

At a glance

Windows 7 Home Premium SP1, 64-bitIntel Skylake i5-6600K, not overclocked8 GB HyperX DDR4-2666 (2 x 4 GB)none; graphics are integrated on CPU
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Ignatz Special; 4 speed manual gearbox; factory air conditioning; one of one
OS
Windows 7 Home Premium SP1, 64-bit
CPU
Intel Skylake i5-6600K, not overclocked
Motherboard
AsRock Z170M Extreme 4, micro ATX
Memory
8 GB HyperX DDR4-2666 (2 x 4 GB)
Graphics Card(s)
none; graphics are integrated on CPU
Sound Card
onboard: Realtek ALC1150; external: USB Behringer UF0-202
Monitor(s) Displays
Dell S2340M 23 inch IPS
Screen Resolution
1600 x 900
Hard Drives
System: Crucial MX100 series SSD, 128 GB;
Data: Samsung Spinpoint 103SJ, 1 TB;
Backup: WD Caviar Green WD30EZRX-00D8PB0, 3 TB
PSU
Rosewill SilentNight 500 watt fanless, semi-modular
Case
Antec Solo II
Cooling
Noctua NH-U12S; Noctua F12 intake, Noctua S12A exhaust
Keyboard
Microsoft 200 6JH-00001 USB
Mouse
Dell or Microsoft optical wired; USB
Antivirus
Microsoft Security Essentials and Malwarebytes Premium
Browser
Pale Moon
Other Info
All fans PWM; speeds at idle: CPU circa 500 rpm; intake circa 600 rpm; exhaust circa 600 rpm; CPU temps 27 idle and 47 C load in a warm room (27 C/81 F) when running Intel Extreme Tuning Utility stress test.
Maybe because it doesn't have Realtek audio, and actually has Via audio,

ASRock > Products > M3A770DE

Audio- 7.1 CH Windows® Vista™ Premium Level HD Audio (VIA® VT1708S Audio Codec)

Might want to uninstall the Realtek driver and install the Via one instead.


My Computer My Computer

At a glance

Win 7 Ultimate x64FX-8350 @ 4.6 GHz so farADATA XPG V1 Series Black 8GB DDR3 1600Sapphire R9 270x Dual-X
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Me
OS
Win 7 Ultimate x64
CPU
FX-8350 @ 4.6 GHz so far
Motherboard
Asus M5A97 EVO
Memory
ADATA XPG V1 Series Black 8GB DDR3 1600
Graphics Card(s)
Sapphire R9 270x Dual-X
Sound Card
Xonar DGX w/ Corsair Vengence 1300
Monitor(s) Displays
Acer S232HL Abid
Screen Resolution
1920x1080
Hard Drives
120 GB OCZ Vertex 3
500 GB Seagate 7200.12
PSU
Antec Earthwatts 650W Green
Case
Antec Three Hundred
Cooling
Cooler Master 212 EVO
Keyboard
Logitech G510
Mouse
Logitech G500s
Internet Speed
35000/3000
Hi stormy13, Hi ignatazsonic,

Thanks for yur prompt replies. The solution lay with the audio codec. Stormy pointed me in the right direction with his clue "Audio- 7.1 CH Windows® Vista™ Premium Level HD Audio (VIA® VT1708S Audio Codec)". I looked at the mobo spec and indeed it was this audio codec and no the realtek one. I can now see my playback devices.


I do have a related,but separate issue to resolve that i shall raise as a new topic.

Thanks once again to both of you.
