hi
i have pc and its specification is
cpu cor i3 540
mo gigabyte h55d2h
ram 4 gb ddr3
hdd wd 1tb
power supply unit 600 watt huntkey apfc
i want to buy vga
nvidia 560 ti 1gb
did the pc will work normal
did psu can maintenance the required power
My Computer
At a glance
Windows 7 Ultimate x32core i3 540 3.06 ghz4GB ddr3internal
The 560 TI has a maximum draw of 180 watts and I just looked at independent tests using real software that show it drawing only 135 watts. That means that it will require a maximum of 15 amps on the 12v rail, and probably closer to 11 amps in real hard-core usage.

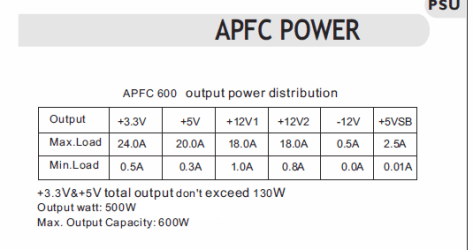

The spec on the Huntkey 600w power supply shows it can deliver 18 amps on one of the two 12v rails. So you are well within spec providing that the real output meets the design output.
Attachments
8.8 KB
· Views: 6
