Solved Problem with SATA ports

[ICIT2LOL]

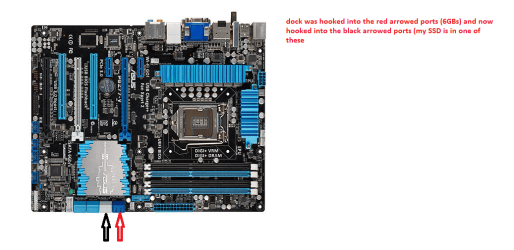

I have an Asus P8Z77-V board and my front dock has just stopped working. Thinking it was a problem with the PCB of the dock I slipped the 500GB drive into an internal slot and still it did not show up in Computer using the ports indicated in the pic with the red arrow.
Hooked up the SATA lead to the black arrowed port and now the drive shows up in Computer.

I am at a loss as to what drivers are for which from the list of SATA drivers can someone please help as I have read the manual and still cannot make out from the lists here https://www.asus.com/Motherboards/P8Z77V/#support I need to download to see if there is a problem with the driver for those red arrowed ports.



[Brink]

Hey John,

Here's the details for your SATA ports below. You would want the Asmedia SATA Controller Driver V1.3.4.0 driver. You might also double check to make sure that this SATA port is still enabled in your BIOS.

https://www.asus.com/Motherboards/P8Z77V/#support

Intel® Z77 chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology

ASMedia® PCIe SATA controller : *6
2 x SATA 6Gb/s port(s), navy blue

Hope this helps.



[ICIT2LOL]

Thanks Shawn I will fix them up tomorrow as I couldn't work out which was which.

What is a bit of cause for concern is why did the two ports (navy blue) cease functioning anyway that were servicing the two front removable case docks?
Having said that I have had a few problems lately and one thing I haven't done is run a bootable rescue disk to check for malware from power on though I suspect I am being a tad overly suspicious re that issue.



[Brink]

A few usual suspects off the top of my head that could have caused this are bad driver update, driver got uninstalled, or got disabled in BIOS.

You could also try a system restore using a restore point dated before they stopped working to see if that may help if it was only something simple as a cause.



[ICIT2LOL]

Ok mate I will try the update first as I did a restore not that long ago for another problem but perhaps for not far enough back.

Checking in the BIOS will be a bit of a learning curve though



[ICIT2LOL]

Thanks Shawn did an update for the SATA drivers for the navy blue ports and all back on line. Even the dock is back working now.

Thanks so much for the help



[Brink]

You're most welcome John. I'm glad that got it sorted.
