Solved Processor upgrade

[dark shadow]

I am building a new desktop and I got a motherboard from an old computer and I have no idea what kind of socket it accepts so is there a way to find out?

I have no idea what brand the motherboard is.



[bassfisher6522]

Search the mobo with a magnifying glass for any wording that might relate to make or brand. There should be a name some where on it. Can you take some pictures and post them, we might know just by looking at the board.



[dark shadow]



[JDobbsy1987]

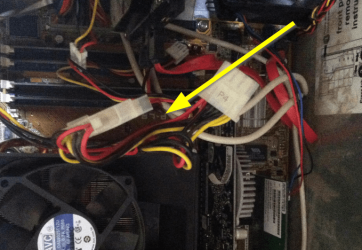

What does this say {See Yellow Arrow}



Regards,
JDobbsy1987



[dark shadow]

Pslp - lr



[dark shadow]

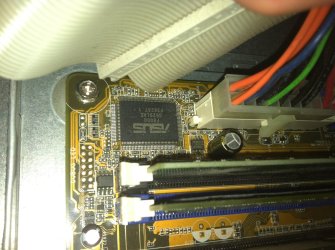

I am pretty sure it is an Asus



[paulpicks21]

You sure it's not an "LE" at the end? - Motherboard Specifications, P5LP-LE (Leonite) | HP® Support



[stormy13]

Motherboard Specifications, P5LP-LE (Leonite) | HP® Support

Socket type: 775
Motherboard supports the following processor upgrades:

• Core 2 Duo E6x00

• Core 2 Duo E4x00

• Pentium D 9x0 Dual Core

• Pentium D 8xx Dual Core

• Pentium 4 6x1 series

• Celeron D 3xx series


Short of finding a used one or finding a site/store with old stock, not really worth building with as all the listed CPU's have long been discontinued.



[dark shadow]

I am sure it is lr



[dark shadow]

I found it Product Specifications | HP® Support



[Dwarf]

We're certain that it is an Asus board, as evidenced by the image above. What we need now is the model number of that board, and this is often screen printed somewhere on the board, typically around the memory sockets. Try and locate this number as this will provide the information needed (note that you might need to disconnect one or more cables to enable you to see it more clearly.



[dark shadow]

Are you talking about the P5LP-LR



[dark shadow]

Manufacturer: Asus
Motherboard Name: P5LP-LR
HP motherboard name: Malachite2-UL8E



[stormy13]

This is what it came with,

ARK | Intel® Pentium® D Processor 925 (4M Cache, 3.00 GHz, 800 MHz FSB)

and this is the list of Pentium D processors,

List of Intel Pentium D microprocessors - Wikipedia, the free encyclopedia

Again not worth the expense of trying to find one for it.

Is this the board you were planning on using for a new build? If so the extra cost of DDR2 also makes it not worthwhile. You would be far better served to save up and buy all current hardware than trying to resurrect/upgrade that one.



[dark shadow]

How do I find out how many cores I can have?



[dark shadow]

would this work on it Amazon.com: Intel Core 2 Duo E6850 Dual-Core 3.0GHz 4M L2 Cache 1333MHz FSB LGA775: Computers & Accessories



[stormy13]

That motherboard has the 845P chipset on it and this is what Intel lists as processors compatible with it,

ARK | Intel® 945P Express Chipset (Intel® 82945P Memory Controller)

Only problem with looking for an upgraded CPU is HP has been known to lock the bios in such a way that different CPU's won't work with it.
