Solved Restore image to a SSD

Trident1

New member
Local time
6:55 AM
Messages
117
I've seen similar posts, but not one answering my question'

I would like to purchase and install a SSD using it as my primary drive.
My question; I use Windows 7 Backup&Recovery to create an image to an external HD, were I to install the SSD as the main drive, reinstall Win 7, would the image on the external drive (HDD)copy to the SSD? I have one or two programs which I purchased, and download on-line, one being MS Office. These are both on time d/l.

If not, I stay with the HDs.


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Custom
OS
Windows 7 Professional, 32bit
CPU
intel Core i5, i5 3570 3.4GHZ, 6MB Quad Core
Motherboard
Asus P8B75-V, LGA 1155
Memory
4GB, (2x2GB) 240 Pin DDR3, 1333Mhz
Graphics Card(s)
on board
Sound Card
Audigy
Monitor(s) Displays
Samsung 21"
Hard Drives
WD 500GB 7200 RPM, 16NB Cache SATA
PSU
Corsair 600W
Case
Cooler Master Storm Scout
Keyboard
MS
Mouse
MS Optical
Antivirus
MS Security Essentials
Browser
IE 10, and Firefox ver. 24
I've seen similar posts, but not one answering my question'

I would like to purchase and install a SSD using it as my primary drive.
My question; I use Windows 7 Backup&Recovery to create an image to an external HD, were I to install the SSD as the main drive, reinstall Win 7, would the image on the external drive (HDD)copy to the SSD? I have one or two programs which I purchased, and download on-line, one being MS Office. These are both on time d/l.

If not, I stay with the HDs.

Not clear on your intent.

You say "reinstall Win 7".

If you do that, why would you then want to use the image now sitting on an external drive? That would over-write your brand new install. Conversely, if you want to use the image now sitting on an external drive, why would you want to "reinstall Win 7"?

If I wanted to move an existing HDD system to a new SSD, I'd probably use imaging software. BUT, I would not use Windows Backup and Recovery to do the job. I'd probably use Macrium.

Some SSDs come with software designed to move your system to the SSD. I've heard both good and bad reports about that software.

Imaging works 95% plus of the time, but you have to know what your next idea is if it fails.

Last edited:

My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Ignatz Special; 4 speed manual gearbox; factory air conditioning; one of one
OS
Windows 7 Home Premium SP1, 64-bit
CPU
Intel Skylake i5-6600K, not overclocked
Motherboard
AsRock Z170M Extreme 4, micro ATX
Memory
8 GB HyperX DDR4-2666 (2 x 4 GB)
Graphics Card(s)
none; graphics are integrated on CPU
Sound Card
onboard: Realtek ALC1150; external: USB Behringer UF0-202
Monitor(s) Displays
Dell S2340M 23 inch IPS
Screen Resolution
1600 x 900
Hard Drives
System: Crucial MX100 series SSD, 128 GB;
Data: Samsung Spinpoint 103SJ, 1 TB;
Backup: WD Caviar Green WD30EZRX-00D8PB0, 3 TB
PSU
Rosewill SilentNight 500 watt fanless, semi-modular
Case
Antec Solo II
Cooling
Noctua NH-U12S; Noctua F12 intake, Noctua S12A exhaust
Keyboard
Microsoft 200 6JH-00001 USB
Mouse
Dell or Microsoft optical wired; USB
Antivirus
Microsoft Security Essentials and Malwarebytes Premium
Browser
Pale Moon
Other Info
All fans PWM; speeds at idle: CPU circa 500 rpm; intake circa 600 rpm; exhaust circa 600 rpm; CPU temps 27 idle and 47 C load in a warm room (27 C/81 F) when running Intel Extreme Tuning Utility stress test.
Not clear on your intent.

You say "reinstall Win 7".

If you do that, why would you then want to use the image now sitting on an external drive? That would over-write your brand new install. Conversely, if you want to use the image now sitting on an external drive, why would you want to "reinstall Win 7"?

If I wanted to move an existing HDD system to a new SSD, I'd probably use imaging software. BUT, I would not use Windows Backup and Recovery to do the job. I'd probably use Macrium.

Some SSDs come with software designed to move your system to the SSD. I've heard both good and bad reports about that software.

Imaging works 95% plus of the time, but you have to know what your next idea is if it fails.[/QUOTE]

Why I mentioned reinstalling Win 7;
I had inserted a new formatted HD in my machine - using the Win 7 Repair Disk, which I created, I tried doing a restore from the external drive (image) to the new drive - it did not work. So, my only thought being, it wanted to see the OS.
Had d/l Macrium sometime back, but Win 7 image restore seems a lot easier and all that I really need.
(In fact I still have the Macrium "boot" disk sitting on my desk. Thanks for the input.


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Custom
OS
Windows 7 Professional, 32bit
CPU
intel Core i5, i5 3570 3.4GHZ, 6MB Quad Core
Motherboard
Asus P8B75-V, LGA 1155
Memory
4GB, (2x2GB) 240 Pin DDR3, 1333Mhz
Graphics Card(s)
on board
Sound Card
Audigy
Monitor(s) Displays
Samsung 21"
Hard Drives
WD 500GB 7200 RPM, 16NB Cache SATA
PSU
Corsair 600W
Case
Cooler Master Storm Scout
Keyboard
MS
Mouse
MS Optical
Antivirus
MS Security Essentials
Browser
IE 10, and Firefox ver. 24
Why I mentioned reinstalling Win 7;
I had inserted a new formatted HD in my machine - using the Win 7 Repair Disk, which I created, I tried doing a restore from the external drive (image) to the new drive - it did not work. So, my only thought being, it wanted to see the OS.
Had d/l Macrium sometime back, but Win 7 image restore seems a lot easier and all that I really need.
(In fact I still have the Macrium "boot" disk sitting on my desk. Thanks for the input.

If I understand you, you tried to restore an image made with Windows Backup and Restore from an external to a new formatted HD and that failed.

That would not give me confidence in Windows Backup and Restore.

You say "my only thought being, it wanted to see the OS". The only OS you would need is the one on the recovery disk. You don't need an OS on the drive to which you intend to restore the image. If you did have an OS on that drive, it would be replaced by the OS within the image file.

For that matter, you don't even need to format a new drive when restoring an image to it. The image restoration process will do the necessary. All you should have to do is connect the new drive and boot from your recovery disk, locate your image file, and direct the restoration to the new drive.

Not sure why you failed with Windows Backup and Recovery, but if you are unwilling to try another program, you have to live with that. If you can't get it to work, your alternative is a clean install. Windows Backup and Recovery "works", but it is not easily understood and has certain peculiarities that other imaging applications avoid.


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Ignatz Special; 4 speed manual gearbox; factory air conditioning; one of one
OS
Windows 7 Home Premium SP1, 64-bit
CPU
Intel Skylake i5-6600K, not overclocked
Motherboard
AsRock Z170M Extreme 4, micro ATX
Memory
8 GB HyperX DDR4-2666 (2 x 4 GB)
Graphics Card(s)
none; graphics are integrated on CPU
Sound Card
onboard: Realtek ALC1150; external: USB Behringer UF0-202
Monitor(s) Displays
Dell S2340M 23 inch IPS
Screen Resolution
1600 x 900
Hard Drives
System: Crucial MX100 series SSD, 128 GB;
Data: Samsung Spinpoint 103SJ, 1 TB;
Backup: WD Caviar Green WD30EZRX-00D8PB0, 3 TB
PSU
Rosewill SilentNight 500 watt fanless, semi-modular
Case
Antec Solo II
Cooling
Noctua NH-U12S; Noctua F12 intake, Noctua S12A exhaust
Keyboard
Microsoft 200 6JH-00001 USB
Mouse
Dell or Microsoft optical wired; USB
Antivirus
Microsoft Security Essentials and Malwarebytes Premium
Browser
Pale Moon
Other Info
All fans PWM; speeds at idle: CPU circa 500 rpm; intake circa 600 rpm; exhaust circa 600 rpm; CPU temps 27 idle and 47 C load in a warm room (27 C/81 F) when running Intel Extreme Tuning Utility stress test.
Okay, friend, you convinced me. Next week sometime I'll d/l Macrium and try to restore an image on a blank disk. I'll let you know!


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Custom
OS
Windows 7 Professional, 32bit
CPU
intel Core i5, i5 3570 3.4GHZ, 6MB Quad Core
Motherboard
Asus P8B75-V, LGA 1155
Memory
4GB, (2x2GB) 240 Pin DDR3, 1333Mhz
Graphics Card(s)
on board
Sound Card
Audigy
Monitor(s) Displays
Samsung 21"
Hard Drives
WD 500GB 7200 RPM, 16NB Cache SATA
PSU
Corsair 600W
Case
Cooler Master Storm Scout
Keyboard
MS
Mouse
MS Optical
Antivirus
MS Security Essentials
Browser
IE 10, and Firefox ver. 24
Make sure when you make the image file that it includes both C and any other partition that contains "boot files".

Your boot files may be on C. They may be on System Reserved partition. They may be elsewhere.

The point is that those boot files have to be included in your images and restoration process. If not, you aren't going to boot the new drive. Period.


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Ignatz Special; 4 speed manual gearbox; factory air conditioning; one of one
OS
Windows 7 Home Premium SP1, 64-bit
CPU
Intel Skylake i5-6600K, not overclocked
Motherboard
AsRock Z170M Extreme 4, micro ATX
Memory
8 GB HyperX DDR4-2666 (2 x 4 GB)
Graphics Card(s)
none; graphics are integrated on CPU
Sound Card
onboard: Realtek ALC1150; external: USB Behringer UF0-202
Monitor(s) Displays
Dell S2340M 23 inch IPS
Screen Resolution
1600 x 900
Hard Drives
System: Crucial MX100 series SSD, 128 GB;
Data: Samsung Spinpoint 103SJ, 1 TB;
Backup: WD Caviar Green WD30EZRX-00D8PB0, 3 TB
PSU
Rosewill SilentNight 500 watt fanless, semi-modular
Case
Antec Solo II
Cooling
Noctua NH-U12S; Noctua F12 intake, Noctua S12A exhaust
Keyboard
Microsoft 200 6JH-00001 USB
Mouse
Dell or Microsoft optical wired; USB
Antivirus
Microsoft Security Essentials and Malwarebytes Premium
Browser
Pale Moon
Other Info
All fans PWM; speeds at idle: CPU circa 500 rpm; intake circa 600 rpm; exhaust circa 600 rpm; CPU temps 27 idle and 47 C load in a warm room (27 C/81 F) when running Intel Extreme Tuning Utility stress test.
I've d/l and installed free version of Macrium. After some time I did get to create the image on ext. HD, and restored the image OK. My next attempt will be to see if this will restore to a formatted HD.
I noticed the paid version enables one to copy to an SSD


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Custom
OS
Windows 7 Professional, 32bit
CPU
intel Core i5, i5 3570 3.4GHZ, 6MB Quad Core
Motherboard
Asus P8B75-V, LGA 1155
Memory
4GB, (2x2GB) 240 Pin DDR3, 1333Mhz
Graphics Card(s)
on board
Sound Card
Audigy
Monitor(s) Displays
Samsung 21"
Hard Drives
WD 500GB 7200 RPM, 16NB Cache SATA
PSU
Corsair 600W
Case
Cooler Master Storm Scout
Keyboard
MS
Mouse
MS Optical
Antivirus
MS Security Essentials
Browser
IE 10, and Firefox ver. 24
I've d/l and installed free version of Macrium. After some time I did get to create the image on ext. HD, and restored the image OK. My next attempt will be to see if this will restore to a formatted HD.
I noticed the paid version enables one to copy to an SSD

The free version of Macrium can restore an image to an SSD.
It can also restore to a formatted partition.


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
home built
OS
Multi-Boot W7_Pro_x64 W8.1_Pro_x64 W10_Pro_x64 +Linux_VMs +Chromium_VM
CPU
AMD Athlon II x4 620
Motherboard
Gigabyte GA-MA785G-UD3H
Memory
6GB GSkill DDR2 800
Graphics Card(s)
AMD 4670 GPU + AMD 4200 IGP
Sound Card
on board Realtek ALC889A
Monitor(s) Displays
RCA 40" LCD TV, Insignia 32" LCD TV, HP 15" LCD monitor
Screen Resolution
1680 x 1050
Hard Drives
OCZ Vertex 3 120GB,
Samsung F3 1TB (3),
Several others - WD, Seagate, Hitachi, ...
PSU
Corsair 500 W
Case
Rosewill mid tower
Cooling
CM 90mm rifle
Keyboard
Gyration wireless, Logitech wireless, Dell USB wired
Mouse
Gyration wireless, Logitech wireless, V7 USB wired
Internet Speed
Spectrum - 100Mbps D / 10Mbps U
Antivirus
Avast, MBAM3, EMET, WinPatrol
Browser
Pale Moon, Firefox, IE
Other Info
2 multi-boot PC's
Mainly HTPC/Office/Gen purpose (no gaming).
Trendnet USB KVM.
LG DVD burner/Blue Ray Player.
Tray system for removable SATA backup drives.

Not currently OCd, under-volted.
I use Hybrid sleep, rarely re-boot or shutdown.

Hauppauge HD-PVR, Avermedia PCIe TV Tuner, Hauppauge PCI TV Tuner.
My next attempt will be to see if this will restore to a formatted HD.
I noticed the paid version enables one to copy to an SSD

There's no need to pre-format the destination drive, whether SSD or HDD, whether free or paid Macrium.

Macrium does not distinguish between an SSD and an HDD---what it can do for or to one, it can do for or to the other. It works equally well on either.

You say "copy to an SSD". You don't need the paid version for that. I assume you mean "clone" when you say "copy". The free version will both clone or make an image file.

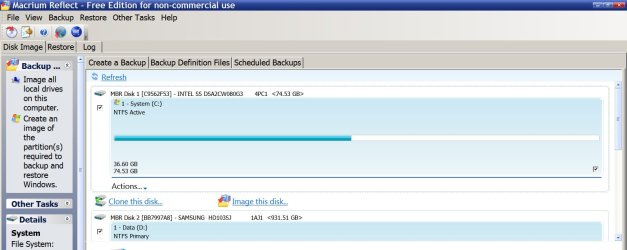

Notice in the screen shot below of the free version that there are 2 choices: "clone this disk" and "image this disk". You'd normally clone if you were operating OK and wanted to move to a new hard drive. You'd image if you wanted to make a backup of the current system that you could later restore should things go bad.


Attachments

  • Untitled-1.jpg
    124.2 KB · Views: 0

My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Ignatz Special; 4 speed manual gearbox; factory air conditioning; one of one
OS
Windows 7 Home Premium SP1, 64-bit
CPU
Intel Skylake i5-6600K, not overclocked
Motherboard
AsRock Z170M Extreme 4, micro ATX
Memory
8 GB HyperX DDR4-2666 (2 x 4 GB)
Graphics Card(s)
none; graphics are integrated on CPU
Sound Card
onboard: Realtek ALC1150; external: USB Behringer UF0-202
Monitor(s) Displays
Dell S2340M 23 inch IPS
Screen Resolution
1600 x 900
Hard Drives
System: Crucial MX100 series SSD, 128 GB;
Data: Samsung Spinpoint 103SJ, 1 TB;
Backup: WD Caviar Green WD30EZRX-00D8PB0, 3 TB
PSU
Rosewill SilentNight 500 watt fanless, semi-modular
Case
Antec Solo II
Cooling
Noctua NH-U12S; Noctua F12 intake, Noctua S12A exhaust
Keyboard
Microsoft 200 6JH-00001 USB
Mouse
Dell or Microsoft optical wired; USB
Antivirus
Microsoft Security Essentials and Malwarebytes Premium
Browser
Pale Moon
Other Info
All fans PWM; speeds at idle: CPU circa 500 rpm; intake circa 600 rpm; exhaust circa 600 rpm; CPU temps 27 idle and 47 C load in a warm room (27 C/81 F) when running Intel Extreme Tuning Utility stress test.
Thanks guys for the added info.


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Custom
OS
Windows 7 Professional, 32bit
CPU
intel Core i5, i5 3570 3.4GHZ, 6MB Quad Core
Motherboard
Asus P8B75-V, LGA 1155
Memory
4GB, (2x2GB) 240 Pin DDR3, 1333Mhz
Graphics Card(s)
on board
Sound Card
Audigy
Monitor(s) Displays
Samsung 21"
Hard Drives
WD 500GB 7200 RPM, 16NB Cache SATA
PSU
Corsair 600W
Case
Cooler Master Storm Scout
Keyboard
MS
Mouse
MS Optical
Antivirus
MS Security Essentials
Browser
IE 10, and Firefox ver. 24
Back
Top
