Show us your hard drive performance

[Dave76]

Just fired up my new SSD
View attachment 77511

Looks good

You should post your AS SSD benchmark in the Show us your SSD performance thread.

It's nice to see all of the SSD scores in one place

So we can :drool:


@Brink

Hi Shawn,

Just what I was hoping to hear, now for the +300 sequential read and +250 random read



[bassfisher6522]

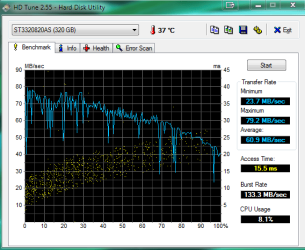

I just found this thread, so here is mine. So what do you think?



[phazed]

I just found this thread, so here is mine. So what do you think?

View attachment 77864

yikes... please tell me that's an old laptop hdd



[Dave76]

I just found this thread, so here is mine. So what do you think?

View attachment 77864

It's a bit low for those specs.

Check your BIOS settings, SATA, AHCI, etc.



[bassfisher6522]

I just found this thread, so here is mine. So what do you think?

View attachment 77864

It's a bit low for those specs.

Check your BIOS settings, SATA, AHCI, etc.

What should I do with the settings once I find them in my BIOS.



[bret1963]

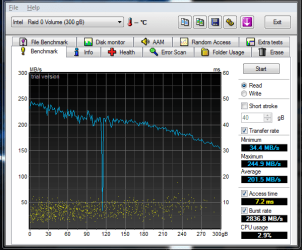

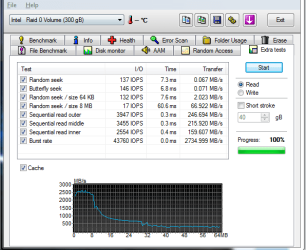

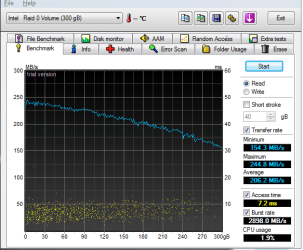

heres mine

I do like Raid 0
ASUS M3N78-VM AMD Phenom X3 8400
EVGA 8800 GT
8gm DDR2 800
2 seagate 500gb and 2 wd 500 gb drives



[Dave76]

I just found this thread, so here is mine. So what do you think?

View attachment 77864

It's a bit low for those specs.

Check your BIOS settings, SATA, AHCI, etc.

What should I do with the settings once I find them in my BIOS.

If your BIOS is set to IDE I would change it to AHCI.

There are a couple of ways, easiest is AHCI : Enable in Windows 7 after OS install.

First time I tried it (before finding this great tutorial), guess I was lucky, did quite a bit of searching.

I just loaded the AHCI driver, it asked for a re-boot, so re-booted, went to BIOS and changed it to AHCI, save & exit.
Started up with AHCI enabled.
Noticed a nice little performance increase.

My main reason was to get my external HDDs to hot swap, worked just as advertised, wanted to take them out after backup was done without having to re-boot.

Let me know how it goes.......



[Dave76]

I do like Raid 0
ASUS M3N78-VM AMD Phenom X3 8400
EVGA 8800 GT
8gm DDR2 800
2 seagate 500gb and 2 wd 500 gb drives

That's a nice bench for the RAID0



[bret1963]

I do like Raid 0
ASUS M3N78-VM AMD Phenom X3 8400
EVGA 8800 GT
8gm DDR2 800
2 seagate 500gb and 2 wd 500 gb drives

That's a nice bench for the RAID0

Thank You Thank You



[Lomai]

+1 for Raid 0
Here's mine: 2 x WD 150GB VR



[bassfisher6522]

It's a bit low for those specs.

Check your BIOS settings, SATA, AHCI, etc.

What should I do with the settings once I find them in my BIOS.

If your BIOS is set to IDE I would change it to AHCI.

There are a couple of ways, easiest is AHCI : Enable in Windows 7 after OS install.

First time I tried it (before finding this great tutorial), guess I was lucky, did quite a bit of searching.

I just loaded the AHCI driver, it asked for a re-boot, so re-booted, went to BIOS and changed it to AHCI, save & exit.
Started up with AHCI enabled.
Noticed a nice little performance increase.

My main reason was to get my external HDDs to hot swap, worked just as advertised, wanted to take them out after backup was done without having to re-boot.

Let me know how it goes.......

My mobo has 6 sata headers (3 are in use), and according to my mobo manual it will only read 4 ports. In order to use all 6 I have to install the AHCI driver. Is this a normal procedure for SATA/AHCI. Reason for the question is I'm planning on adding 2 more hard drives, so if I do add then I'm going to have to do this AHCI driver install anyway. Am I correct in this thinking.



[Dave76]

Your correct.

Just looked up your Asus M4N78 PRO MOBO, sorry for the news but, your NVIDIA GeForce 8300 chipset has known issues. Not performing well seems to be the consensus. Remember reading that some have managed to install the Intel drivers and gotten better performance, don't know how this was done though.

Try searching for the issue, hopefully you can find some answers.

Having said that, your chipset will have better performance in ACHI compared to IDE regardless, you just won't see the same numbers others get with Intel chipsets.



[Dave76]

My mobo has 6 sata headers (3 are in use), and according to my mobo manual it will only read 4 ports. In order to use all 6 I have to install the AHCI driver. Is this a normal procedure for SATA/AHCI. Reason for the question is I'm planning on adding 2 more hard drives, so if I do add then I'm going to have to do this AHCI driver install anyway. Am I correct in this thinking.

You can try this method to install the MS IDE controller.

Just to put in here for nForce users,.... You can uninstall the Nvidia controller though in Device Manager and install Microsoft's IDE Controller, which can send TRIM commands for SSDs.



[mvnsnd]

just put a Seagate momentus XT in my laptop. Boots faster and seems to run faster than the prior Seagate Momentus drive. I think it performs OK for a 500 Gb laptop drive.



[steve-pressman]

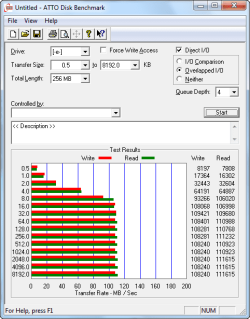

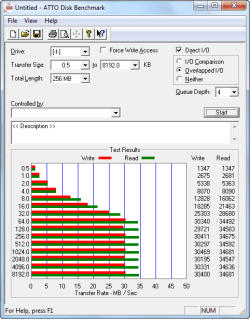

I have enabled AHCI now so I don't know what effect it will have on my Spinner drives but here are the results I do notice the WD External is pretty poor or is it ? As for the other two maybe you experts can tell me if they are giving me good speeds



Steve



[Dave76]

The first two are good, anything over 100 is doing well.

The third one is kinda slow that must be the external, is it a USB connection?
That would explain it, is it IDE or SATA drive?

If you get an external HDD with an eSATA connection it will run at the same speed as your internal HDDs



[steve-pressman]

Yes Dave it is an External USB WD slow but reliable



[Dave76]

They are, I got one of them too.

Use it for backups on a couple of my 'other' computers.



[freaky88]

this is a store default hdd ide 700 gb



[okami 11x]

so my reason for posting here is that I was told I have an unusually high score in WEI for my primary hdd. I'm only using a single one (no raid or anything) and I received a 7.0 rating

attached are images of the WEI, a benchmark of that HDD, and the SIW for that HDD

let me know if this is weird and please explain to me what it means (like the benchmark...I don't know what that means at all...or the Crystal Disk Mark which I didn't even finish running since I have no clue about it)
