Snapped off a small capacitor on my motherboard near CPU socket.

Andarthiel

New member
Member
Local time
1:20 PM
Messages
37
Location
Melbourne VIC

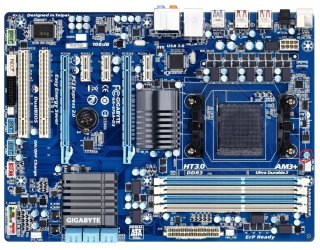

Recently my CPU cooler died on me so I replaced it with another one. But when I was installing the bracket for the cooler onto the motherboard I accidentally snapped off a small capacitor which was just above the CPU socket(near the edge of the board, picture attached). I've read that some of the capacitors are just for onboard audio and not essential to keep the PC running(I don't use onboard audio anyway). I don't know what this capacitor is for. Would I be able to run the PC for a few more days until I get a new motherboard or is it too risky?


Attachments

  • 20141206_152414_zpsf6295721.jpg
    39.4 KB · Views: 1
  • brokencapacitordiagram_zpsa4597c77.jpg
    226.1 KB · Views: 5

My Computer My Computer

At a glance

Windows 7 Ultimate 64-bitAMD Athlon FX 4100 ~3.6GHZ16GB DDR3Gigabyte 4GB GeForce GTX 760
Computer type
PC/Desktop
Computer Manufacturer/Model Number
Gigabyte
OS
Windows 7 Ultimate 64-bit
CPU
AMD Athlon FX 4100 ~3.6GHZ
Motherboard
Gigabyte 970A-D3
Memory
16GB DDR3
Graphics Card(s)
Gigabyte 4GB GeForce GTX 760
Sound Card
Asus Xonar DG
Monitor(s) Displays
BenQ GL2230
Screen Resolution
1920x1080
Hard Drives
1x Western Digital 80GB
1x Western Digital 500GB
1x Western Digital 1TB Caviar Green
PSU
Antec 900W High Current Gaming
Case
Thermaltake Level 10 GTS(Black)
Cooling
Corsair Hydro Series H55 Water Cooler
Keyboard
Razer Deathstalker
Mouse
Razer DeathAdder
Internet Speed
4G
Browser
Google Chrome
There is certainly no danger in running the system, whatever is not going to work will make itself known eventually...

(With any luck, might be some obscure function, and perhaps you will be unaffected.....if you are lucky)

(If unklucky, now is as good as time as any to begin planning out your next socket 1150-based Haswell-based system!)


My Computer My Computer

At a glance

Windows 7 Home Premium 64 bitAMD A45 GBIntegrated Radeon
Computer type
PC/Desktop
Computer Manufacturer/Model Number
HP
OS
Windows 7 Home Premium 64 bit
CPU
AMD A4
Memory
5 GB
Graphics Card(s)
Integrated Radeon
Hard Drives
500 gb WD
Antivirus
360 TS
Browser
IE
It may be that the capacitor is used in a non critical system, It could also, just as equally be the essential component that controls the voltages for your processor, or Memory or stops the motherboard from bursting into flame

DO YOU REALLY WANT TO TAKE THAT CHANCE

Wait until the Motherboard is replaced
