Static IP on wired and wireless adapter simultaneously

Squirl1899

New member
Local time
9:55 AM
Messages
4
I want 2 static IP's, one for my wired and one for my wireless, and they connect through the same gateway (although I am not using them simultaneously). I use the following:
Wired:
10.0.0.4
255.255.255.0
10.0.0.1

Wireless:
10.0.0.5
255.255.255.0
10.0.0.1

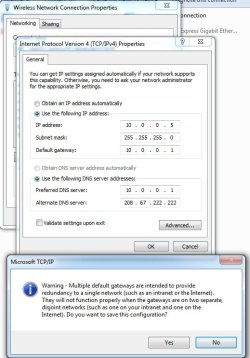

If I try to change it from the ipv4 screen I get the attached error pop up screen, but if I change it through the advanced screen, I don't get the error but it automatically deletes the gateway from my other adapter! The big issue is, if I don't have the gateway in the adapter settings, I get an "Unidentified Network" in my "Network Connections" page and I cannot connect to the internet using the adapter that does not have the gateway.

I have searched every forum but have not found any resolution. Is this error just a false warning and not an error since I don't have multiple gateways? Maybe Win 7, by default, just throws that screen up if it detects 2 NIC's with an entry in the "Default Gateway" but doesn't really compare the 2 entries. Does Win 7 not see that UI have entered the same IP in both fields or does it just say "WHOA, you already have a Gateway entered in another adapter, I am not sure what that IP address is, but be careful because you shouldn't have multiple Gateways on the same network." Or is it saying "STOP, I will not function properly if you have 2 Gateways, even if they are the same IP."


Attachments

  • Gateway Error.jpg
    Gateway Error.jpg
    58.4 KB · Views: 79

My Computer

Computer Manufacturer/Model Number
Asus G73JW-X1 ROG
OS
Dual Boot Windows 7 Ultimate 32bit & 64bit
CPU
QuadCore Intel Core i7 740QM, 2800 MHz (21 x 133)
Motherboard
Intel Ibex Peak-M HM55, Intel Lynnfield
Memory
8GB (DDR3-1333 DDR3 SDRAM)
Graphics Card(s)
NVIDIA GeForce GTX 460M (1536 MB)
Sound Card
Realtek High Definition Audio
Monitor(s) Displays
17.3 Hannstar HSD173PUW1 (1920 x 1080)
Hard Drives
Seagate Hybrid ST95005620AS (500 GB/4GB SSD, 7200 RPM, SATA-II)
The IP address for the NIC's are different, the IP for the GATEWAY is the only thing that is the same (10.0.0.1) and that is where the conflict is arising.
