Too many OS's on boot

[rdwray]

I had Win7 HP installed twice - Drive C & G - for emergency purposes. I installed Win7 Pro on D. Now when the DOS boot screen comes up it shows 4 OS's. BCDedit indicates I have OS's on C, D, G & I and it shows the Legacy OS on I. What is wrong and how to I fix it?

Thanks



[Bare Foot Kid]

Hello rdwray.



You can use BCDEdit to remove some of the entries, just be sure not to remove the entry with the boot files on it, it'll be listed as "System" in disk management; have a look at the tutorial at the link below.


How to Use the BCDEDIT Command Line Tool



[rdwray]

That's my problem, which one do I remove????



[Bare Foot Kid]

That's my problem, which one do I remove????

Post up a snip of the whole disk management for us to have a look at, right click computer, manage, disk management; have a look at the tutorial at the link below to see the best way to post snips here at Seven Forums.


A Preferred Method of Uploading/Posting Screen Shots



[rdwray]

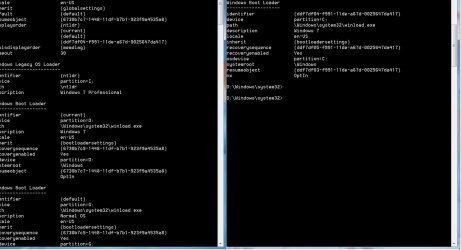

Here is the bootmgr:



[Bare Foot Kid]

How about a snip of the whole disk management so we can get the "big picture" OK?



[SIW2]

That only shows 2 entries.

Probabaly the easiest way for you to tackle it is with msconfig.

http://www.sevenforums.com/tutorials/2288-operating-system-start-delete-os-list-boot.html

Type msconfig in start search, clcik it when it pops up.

Click the boot tab.

Delete the entries you don't want ( it won't let you delete the default entry)



[rdwray]

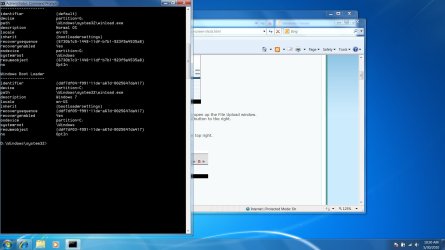

Complete bootmgr:

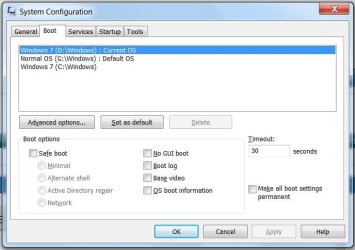

Here is msconfig and all the OS's shown are legal:

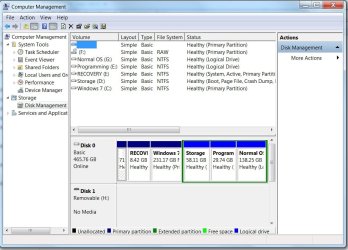

Here is discmgr:

Here is the DOS boot screen list:

Windows 7 Professional (This is the bad OS)
Windows 7
Normal OS
Windows 7



[rdwray]

Found the problem was the "Lagacy OS Loader" and deleted it. This is a good example of one of Win7 problems.



[Bare Foot Kid]

That only shows 2 entries.

Probabaly the easiest way for you to tackle it is with msconfig.

http://www.sevenforums.com/tutorials/2288-operating-system-start-delete-os-list-boot.html

Type msconfig in start search, clcik it when it pops up.

Click the boot tab.

Delete the entries you don't want ( it won't let you delete the default entry)

Hello SIW, thanks!

I forget about this as I learned to use BCDEdit while I was booting W7 and XP, XP would never show up in msconfig in W7.



@rdwray, are you saying you found a solution and the issue is resolved?



[rdwray]

Bare Foot Kid, it is resolved...



[Bare Foot Kid]

Glad to hear it, thanks for the update.
