USB video capture driver problem

[ssarcastic]

i was using the usb easycap video capturing device

USB Video Capture Devices - Convert Video to Digital

and the usb video capture driver on windows xp perfectly using Ulead video studio software.

but when i changed to windows 7 i cant find the usb video capture driver so i cant use the easycap device...

help anyone?



[torrentg]

Right click on it in device manager. Properties. Details tab. Change dropdown to hardware ids. Copy and paste the results to here and please do not use a screenshot as alternative.

Is this x86 or x64? We'll find a driver if one exists.



[ssarcastic]

thank u for the quick reply...

i did what u asked me and here it is :

USB\VID_05E1&PID_0408&REV_0005&MI_00
USB\VID_05E1&PID_0408&MI_00


and i am running a windows 7 x86 (i am not very much technical but i have 2 program files folders one of them is just program files and the other is program filesx86)

i really hope u can help me people because capturing video from other devices is very essential to my work.....

appreciate ur help



[ssarcastic]

i have look into my system information and it said that it s a x64 - based pc !

i dont know if this is 64 or 86 :



[Neoxalucard]

i was using the usb easycap video capturing device

USB Video Capture Devices - Convert Video to Digital

and the usb video capture driver on windows xp perfectly using Ulead video studio software.

but when i changed to windows 7 i cant find the usb video capture driver so i cant use the easycap device...

help anyone?

I have the exact same Capture device and the same OS. Use these > drivers <



[andbria1]

Did anyone manage to find any compatible software for this device?
I downloaded and installed the driver as suggested in an earlier post and it said that it had accepted it but I still can't get any video to stream.

Neoxalucard, you said that you have the same OS and device, what software do you use?

(I contacted the manufacturer about the device and they said that there is no support for a windows 7 x64 driver.)

Andrew



[Neoxalucard]

The manufacturer say's there is no support for Win 7 x64, because they don't want to bother to write the 64bit drivers. Luckily the easycap is somewhat generic. That's why I'm using Sabrent's drivers you can get them here http://www.sabrent.com/drivers/USB-AVCPTSetup_For_Win7.zip

As far as software, aside from Win movie maker and Win live movie maker. It's not that it wasn't compatible, I just don't see an option to capture or import from capture device on either. I have used the easy cap on just about everything else. Haven't had a problem on the software side.

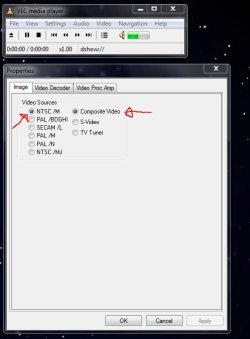

Here it is my PS2 in VLC hooked up to my easycap. Make sure you set the right source in properties NTSC and composite for me.


Bam, it worked.

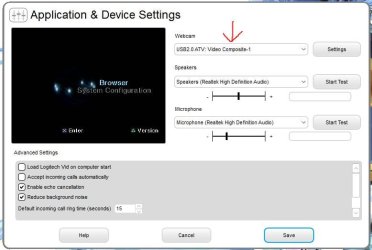

Again in logitech vid. See, its set to tuner by default.


Just change to composite and we're all good.


On a side note, although not spacifily supported, it does work with DScaler. DScaler - Home <--Careful with that if you do use it, I hear it can eff up you're capture device if you don't know what you're doing.



[flez]

Just about to try these drivers on the 4 channel DVR security version, will report back...

Just waiting for my salty wet string internet connection...



[flez]

Tried them...
says its a stk1160 and a atv usb2 video capture device, but only seems to see first video input, in acitive webcam it gives options for tuner svideo and composite, selecting composite sets it to video 1, other options give a blank screen.


Its a start.....



[flez]

just an update failed to get all 4 capture channels working, only the first one.


going back to windows xp on an semi duff laptop to use a webcam server/nas



[admnstrator]

hurray
driver worked perfectly for me
I use win seven 64bit
he recognized STK 1160



[quillo]

Hi i use easycap and ive downloaded so many drivers to try and get it working but ive had no luck... I use windows 7 professional and im using ulead videostudio 10.0.
Whenever i try and capture video i get this message

Unable to switch to capture mode
Check if your video capture driver is working properly
Failed to build a preview graph

the hardware Ids is
USB\VID_1C88&PID_003C&REV_0100
USB\VID_1C88&PID_003C

Please help



[MWBARNARD]

Usb\vid_1c88&pid_003c&rev_0100

Hi Everyone

I Looked for days to find the correct drivers.

You see the cd that came with mine was incorrect so you cannot use Superviewer after you install these drivers.

Uninstall everything plug the 4ch usb dvr into the usb and install these drivers.

See attached zip file.
Grabster_AV_300_MX_Drv_Setup_1.0.8.30_Vista_7_8_64Bit.zip (2.29 MB)



[file3456]

Next time try a local install of running Windows XP. How the heck is that achieved? Through the use of a virtual machine software. I chose to use the free for home use VMware Workstation Player. This virtual drive software has great USB emulation. In Windows 7 you can only use version 15.x. Version 16 and up is for Windows 10. Yes, you can run more than one OS at a time. I once had ten instances of XP running all at the same time. LOL

VMware Maintenance



[file3456]

Hi Everyone

I Looked for days to find the correct drivers.

You see the cd that came with mine was incorrect so you cannot use Superviewer after you install these drivers.

Uninstall everything plug the 4ch usb dvr into the usb and install these drivers.

See attached zip file.
Grabster_AV_300_MX_Drv_Setup_1.0.8.30_Vista_7_8_64Bit.zip (2.29 MB)

No viruses according to Virus Total as of this post using SHA256 hash of:5a08c272efc68d08ed81d3169fa50f3159d9962bfcf3f5ecd93a9a26c479329c

VirusTotal

You can verify the hash of a file with the program HashCalc.
