What a long weekend - 'Recabling Project' dubbed "The Big Weekend"

[JDobbsy1987]

What a long weekend - 'Recabling Project' dubbed "The Big Weekend"

Just thought i would share this with you all

Check out the time lapse video here or see below - YouTube - Network Room Recabling Time Lapse​

Imagine, if you will, 8 – 10 years of poor cable management, poor cabinet layout, and cables 10x too long for the job at hand. Whatever you now have in your head, double it, and you might be getting close to our upstairs comms room.

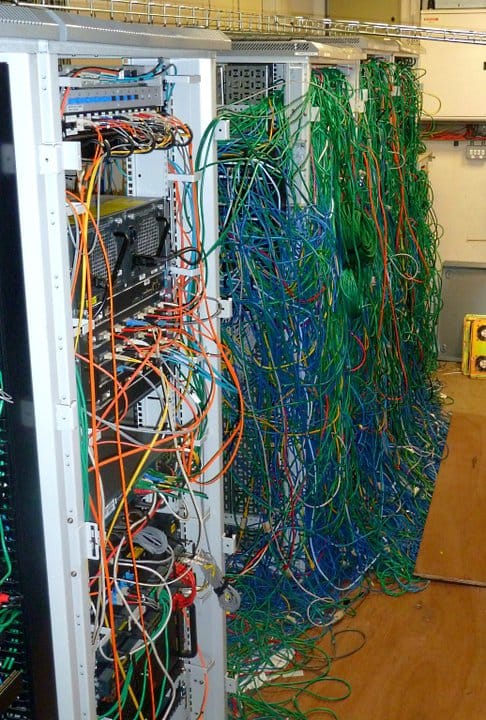

This mass of cables to the right is comprised of around 2000 floor ports and 19 1u 18 port switches, and a whole heap of cable! I would say at least 50% of the cable is not actually in use, but has become so tangled and matted, it’s easier for the guys to run a new cable than move the old one – which obviously only serves to compound the problem!!

This single room has around 60% off our office space and 30% of our warehouse space patched into it. So downtime windows long enough to tackle this mess are few and far between.

But, thanks to Kate and Wills, we have been graced with an extra 4 day weekend this year. So we are going to take the opportunity to recable the entire room. Several codenodes for the projects have been suggested, including “project subo”, but we eventually settled on “The Big Weekend”

Check out the time lapse video - YouTube - Network Room Recabling Time Lapse

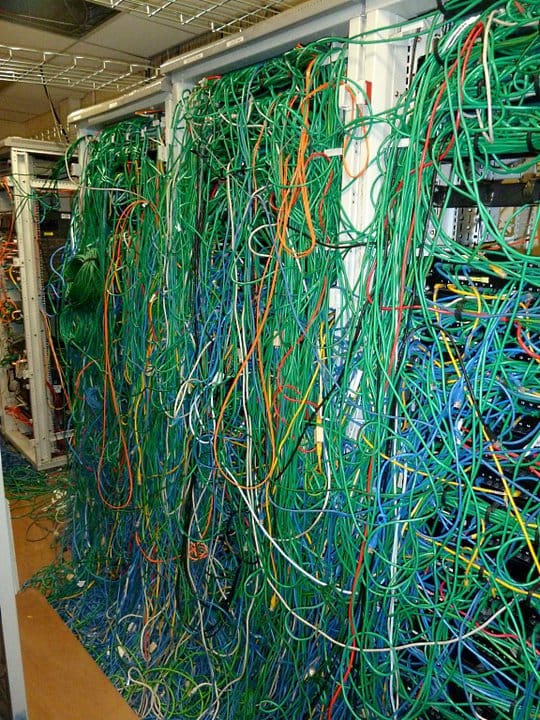

Before

Check out the time lapse video - YouTube - Network Room Recabling Time Lapse​

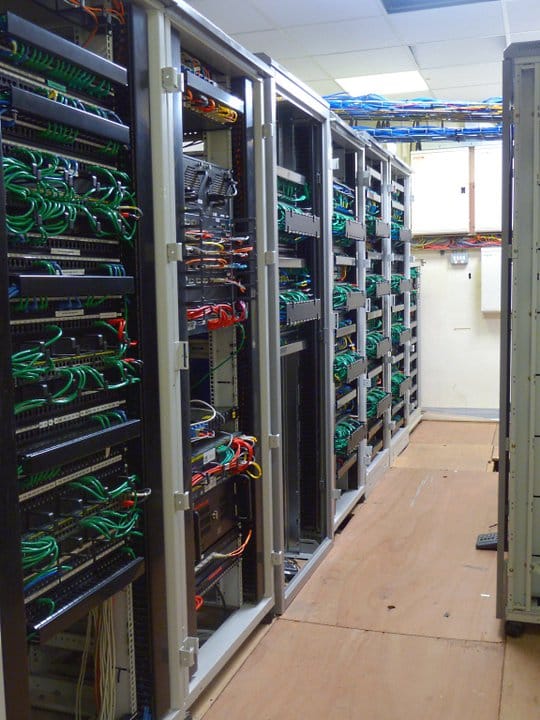

After

Check out the time lapse video - YouTube - Network Room Recabling Time Lapse​

Regards,
JDobbsy1987



[z3r010]

The first pictures look like one of my cab wiring jobs lol



[JDobbsy1987]

LOL - this is a picture of me after 33 hours non-stop and drugged up on pro-plus



Just encase you are confused... yes, that is a bed in the office lol



Regards,
JDobbsy1987



[mr pc]

haha - reminds me of the episode of Workaholics when they go "camping"

anyways, looking good - never seen such a tangled server room to be honest.

is that a raised floor made of plywood?



[JDobbsy1987]

haha - reminds me of the episode of Workaholics when they go "camping"

anyways, looking good - never seen such a tangled server room to be honest.

is that a raised floor made of plywood?

It is indeed... What can go wrong??



[mr pc]

I wouldn't know - never used plywood, it doesn't buckle from the weight?

Our data center in the military had motion sensors under the floor - what were they concerned of? Ninjas?

any dead critters under that mess? I bet it's more enjoyable working in there now

Should've called the task - The Royal Pain in The Ass



[JDobbsy1987]

The plywood isn't too bad as there are supporting beams under the racks but where we walk can be a little bouncy , our main server room is better equip though lol

We don't need to worry too much about Ninja's so thats not too bad.

YES... it is a lot better to work in there, when patching 1 person in we used to de-patch about another 3 as there were a lot of barb less cables in there aarrrhhh!



[JDobbsy1987]

Just to add to this, it turns out the testing didn't quite go to plan, as few hours of mad patching and vlan changing this morning
