What RAM can I upgrade to?

[kidlonet]

Here's my motherboard specs, could someone tell me if I'm able to upgrade to 8gb DDR3 RAM with this motherboard? And also let me know what processor and video card are compatible with 8gb RAM?

Motherboard
Manufacturer eMachines
Model EL1360G (CPU 1)
Chipset Vendor AMD
Chipset Model K12 IMC
Chipset Revision 00
Southbridge Vendor AMD
Southbridge Model A40/A50 Series FCH
Southbridge Revision 40
System Temperature 53 °C
BIOS
Brand AMI
Version P01-C1
Date 11/16/2011
Voltage
MEMORY CONTROLLER 1.524 V
+3.3V 2.940 V
+5V 4.939 V
-12V (8.880) V
-5V (8.880) V
+5V HIGH THRESHOLD 2.762 V
CMOS BATTERY 1.596 V
PCI Data
Slot PCI-E x16
Slot Type PCI-E x16
Slot Usage Available
Data lanes x16
Slot Designation PCIE16X
Characteristics 3.3V, Shared, PME
Slot Number 0
Slot PCI-E
Slot Type PCI-E
Slot Usage Available
Data lanes x1
Slot Designation PCIE1X_1
Characteristics 3.3V, Shared, PME
Slot Number 1



[Boozad]

I wouldn't look at upgrading anything until those voltages are confirmed, they look very suspect. Download Speccy as linked in my signature, run it and click on the Motherboard tab on the left. Take a screenshot and attach it to your next post.



[cyclops]

Read below, I think you are on the right track.

eMachines EL1360G-UW11P - E-300 1.3 GHz - 4 GB - 500 GB Specifications

• Overview
• User Reviews
• Specifications

eMachines EL1360G-UW11P - E-300 1.3 GHz - 4 GB - 500 GB

Part Number: PT.ND5P2.002





General

• Packaged Quantity
  1
• Product Form Factor
  Micro tower
• Manufacturer
  Acer


Processor / Chipset

• CPU
  Intel E-300 1.3 GHz
• Number of Cores
  Dual-Core
• 64-bit Computing
  Yes
• Chipset Type
  AMD A45

Cache Memory

• Installed Size
  L2 cache - 1 MB
• Cache Per Processor
  1 MB

Memory

• Max Supported Size
  8 GB

Storage

• Interface Type
  Serial ATA-300
• Type
  none

RAM

• Memory Speed
  1333 MHz
• Memory Specification Compliance
  PC3-10600

Hard Drive

• Interface Type
  SATA 3Gb/s
• Spindle Speed
  7200 rpm

Input

• Type
  keyboard, mouse

Processor

• Installed Qty
  1
• Max Supported Qty
  1

Floppy Drive

• Type
  none

Card Reader

• Type
  card reader
• Supported Flash Memory Cards
  Memory Stick, Memory Stick PRO, MultiMediaCard, MultiMediaCardplus, SD Memory Card, xD-Picture Card

Monitor

• Monitor Type
  None.

Software

• Microsoft Office Preloaded
  Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.

Networking

• Data Link Protocol
  Ethernet, Fast Ethernet, Gigabit Ethernet
• Form Factor
  integrated

Dimensions & Weight

• Width
  3.9 in
• Depth
  14.6 in
• Height
  10.4 in

Graphics Controller

• Form Factor
  integrated
• Graphics Processor
  AMD Radeon HD 6310
• Video Interfaces
  HDMI, VGA

Audio Output

• Form Factor
  integrated



[AddRAM]

I`d get these

RipjawsX - F3-10666CL7D-8GBXH - G.SKILL DDR3 Memory

G.SKILL Ripjaws X Series 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10666) Desktop Memory Model F3-10666CL7D-8GBXH - Newegg.com

A video card and memory have nothing to do with each other, don`t worry about that. But you really should install a video card.

If you`re not doing anything super serious with it, a 4 GB 960 will be just fine. (Do not get a 2 GB card)

EVGA - Products - EVGA GeForce GTX 960 4GB SSC GAMING ACX 2.0+ - 04G-P4-3967-KR

MSI USA - Computer, Laptop, Notebook, Desktop, Mainboard, Graphics and more


Upgrade the cpu to the fastest possible you can afford and the motherboard supports. (AMD experts can help you with that)


We need a link that will tell us possible upgrades for this machine, not a website that shows current specs, that`s no help here at all.



[cyclops]

Everything I am finding says the e-300 amd is a socket FT1 (BGA) and that it is typically in laptops. That socket/cpu combination is soldered into the mobo. Double check in device manager or computer properties what you truly have. If you have the specs for the mobo that should have the socket type and cpu model.



[AddRAM]

If you couldn`t upgrade the cpu, that would suck, 1.3 GHz is slowwwwwwww

That is killing it.

AMD E-Series E-300 Notebook Processor - NotebookCheck.net Tech



[cyclops]

e-machines are budget boxes, one never knows what they'll do to sell a box rather than an upgrade component
Meanwhile, he needs to crack the book or the case and help a little more. I'm just Google surfing



[Layback Bear]

I wouldn't look at upgrading anything until those voltages are confirmed, they look very suspect. Download Speccy as linked in my signature, run it and click on the Motherboard tab on the left. Take a screenshot and attach it to your next post.

Those voltages are very out of specs.



[AddRAM]

They were reported probably by some bogus program, the only way to check true voltages is in the bios, I would ignore what he found in post #1, probly not even close to actual.

Kidlonet, PLEASE fill in your specs, everything you put in your post is useless except the name of the PC.

If this is indeed a laptop, then just go get 2 4GB PNY sticks of 1333 MHz at your local Bestbuy for $40



[Boozad]

So ignore possible dodgy voltages on what is probably a very low end PSU and throw in the fastest processor possible and a GTX 960?



[Golden]

So ignore possible dodgy voltages on what is probably a very low end PSU and throw in the fastest processor possible and a GTX 960?

What he said^. Follow advice in post #2.



[AddRAM]

So ignore possible dodgy voltages on what is probably a very low end PSU and throw in the fastest processor possible and a GTX 960?

Exactly

Like I said, confirm those voltages in the bios.

A good PSU goes without saying But I`m sure he has a 1600 T2 in it

Once again, if this is a laptop, none of this matters anyway, and the OP hasn`t even come back so....



[Layback Bear]

From post #1

• Overview
• User Reviews
• Specifications

Power supply is in question.
Room for much of anything is also in question.
Room for proper case and cpu cooling is also in question in my opinion.

You can't make a silk purse out of a pigs ear.



[kidlonet]

I did download and use Speccy and that's what I copy+ pasted. It's a desktop e-machine, not a laptop. (Sorry I took so long to reply, been pretty busy lately) Here's what it came as stock and what it still is: AMD E-300 dual-core processor, AMD Radeon HD 6310 graphics, 2GB DDR3 RAM, 500GB Hard Drive. And I'll post a screenshot of speccy in next reply, but if speccy is giving me inaccurate information, can someone tell me how to get to the BIOS to get the accurate information?



[kidlonet]

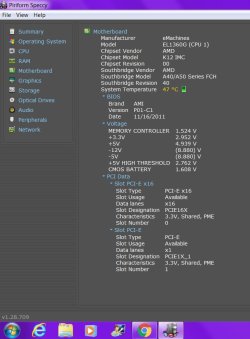

Here's my screenshot of Speccy on the motherboard tab.
