Win 7 - Can't see slave drive

[Meltdown]

Hi all,

I just bought a new hard drive + Win 7, installed Win 7, and have now attached another drive that would not boot properly (has winxp OS on it)

Windows 7 doesn't seem to be able to 'see' the slave drive, is there anything else I need to do to let Win 7 see the slave drive?

Regards
Melt



[DocBrown]

Welcome Meltdown


What kind of HD's IDE, SATA, etc.

Does it show up it the Bios boot up screen ?

Other hardware specs would help.



[Casca]

Assumption jump-

an oft overlooked setting...

.



[Meltdown]

Hi, these are two SATA drives, the one with the Win 7 OS is 1TB, the slave 250G, I also have a CD drive and a DVD/CD burner drive - 2 Gigs RAM.

In the BIOS I see Drive 0 to Drive 3 , SATA 0 to SATA 3. I don't see any mention of my western digital slave drive.

Thanks for the welcome.

Regards
Melt



[DocBrown]

Can you see all the drives in Disk Management ?



[Meltdown]

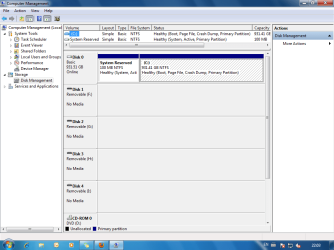

Hi, this is what I see.



[Casca]

I got lost here

"In the BIOS I see Drive 0 to Drive 3" - 4 drives

"SATA 1 to SATA 3" - 3 drives

.



[DocBrown]

Check your WD 250gb slave for Data & Power cable connections. Just recently one member actually had a bad SATA data cable

Also try a different SATA port on MB.



[DocBrown]

@ Casca :roflmao:

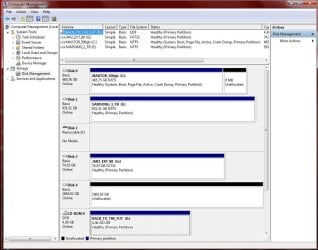

You saw my D: drive . 12 feet from your Huge Monitor :shock:



[Meltdown]

Hi guys,

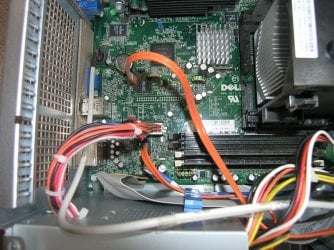

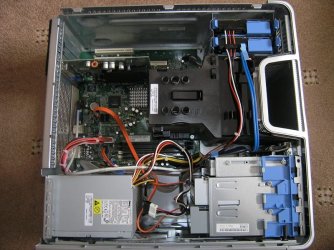

Still struggling with this, I've attached a few more pics.

DocBrown, how is it possible to 'check' these cables. Can you indicate from my pictures where the other SATA ports are please, I don't understand how to do that.

I think I only have one power connection(see pic) could that be the problem or is that normal?

Regards
Melt



[DocBrown]

Hi guys,

Still struggling with this, I've attached a few more pics.

DocBrown, how is it possible to 'check' these cables. Can you indicate from my pictures where the other SATA ports are please, I don't understand how to do that.

I think I only have one power connection(see pic) could that be the problem or is that normal?

Regards
Melt

Excellent pics

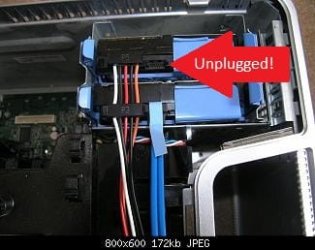

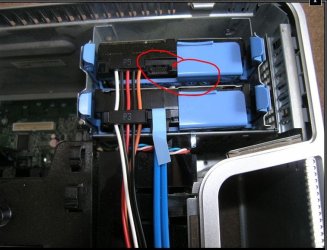

Looks like you are missing the data cable to the top HD ???

P3 & P5 connections are the HD power cable connections :huh:



[Casca]

There's your trouble.
.



[DocBrown]

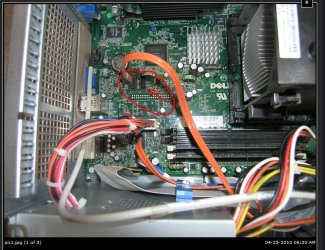

Empty SATA connection on MB is for slave HD



[Meltdown]

Hi DocBrown, thanks for the reply

The blue data cable only has one connection point on it not two like the power cable, are you saying I need to go out and buy a data cable with two connection points? Why would the power cable have two connection points and the data one only have one?



[DocBrown]

Hi DocBrown, thanks for the reply

The blue data cable only has one connection point on it not two like the power cable, are you saying I need to go out and buy a data cable with two connection points? Why would the power cable have two connection points and the data one only have one?

SATA Data cables only have 1 connection on each end, I have not seen a dual SATA as yet. You need another single SATA Data cable. Red, Blue, Orange, yellow, whatever color you can get



[Meltdown]

Hi DocBrown,

Just to clarify, I'll buy a new SATA cable and connect it from the empty SATA connection on the MB to the data connection on the slave drive, is that correct?

Regards
Melt



[DocBrown]

Hi DocBrown,

Just to clarify, I'll buy a new SATA cable and connect it from the empty SATA connection on the MB to the data connection on the slave drive, is that correct?

Regards
Melt

YES !

or try the sata cable from your CD drive now to see if makes the slave recognized . you can do with out the CD for temporary testing, right ????



[Meltdown]

Hi DocBrown,

Just to say thanks for helping me out here, much appreciated, it's all sorted now, the slave drive is up and running normally.

Casca, thanks for your input as well.

Great forum guys.

Regards
Melt
