Win7 64bit and VMWare issues

[indymuaddib]

Virgin install < 3 hours old, no bonjour so thats not causing it.

my setup is Main PC Win7 64bit

Secondary PC Win7 RC1 32bit

2 VMware Guest OS
VM1 Windows XPsp3
VM2 Windows XPsp3
(both on Main PC)

Networks

Home Network
Joined
Local Area Connection 3
Connection-specific DNS Suffix: tampabay.rr.com
Description: Realtek RTL8139/810x Family Fast Ethernet NIC #2
Physical Address: ‎00-E0-29-19-9A-BD
DHCP Enabled: Yes
IPv4 Address: 173.171.121.180
IPv4 Subnet Mask: 255.255.248.0
Lease Obtained: Friday, December 04, 2009 6:43:17 AM
Lease Expires: Friday, December 04, 2009 7:43:17 AM
IPv4 Default Gateway: 173.171.120.1
IPv4 DHCP Server: 10.206.0.1
IPv4 DNS Servers: 65.32.5.111, 65.32.5.112
IPv4 WINS Server:
NetBIOS over Tcpip Enabled: Yes
Link-local IPv6 Address: fe80::283b:ef7:a6d8:6934%26
IPv6 Default Gateway:
IPv6 DNS Server:


Unidentified Network
No Internet access
Local Area Connection 2
Connection-specific DNS Suffix:
Description: Realtek RTL8139/810x Family Fast Ethernet NIC
Physical Address: ‎00-08-54-A5-BA-17
DHCP Enabled: Yes
Autoconfiguration IPv4 Address: 169.254.104.222
IPv4 Subnet Mask: 255.255.0.0
IPv4 Default Gateway:
IPv4 DNS Server:
IPv4 WINS Server:
NetBIOS over Tcpip Enabled: Yes
Link-local IPv6 Address: fe80::6842:f0bc:e546:68de%23
IPv6 Default Gateway:
IPv6 DNS Servers: fec0:0:0:ffff::1%1, fec0:0:0:ffff::2%1, fec0:0:0:ffff::3%1

VMWare Network Adapter VMNet1
Connection-specific DNS Suffix:
Description: VMware Virtual Ethernet Adapter for VMnet1
Physical Address: ‎00-50-56-C0-00-01
DHCP Enabled: Yes
Autoconfiguration IPv4 Address: 169.254.208.122
IPv4 Subnet Mask: 255.255.0.0
IPv4 Default Gateway:
IPv4 DNS Server:
IPv4 WINS Server:
NetBIOS over Tcpip Enabled: Yes
Link-local IPv6 Address: fe80::192d:7cb0:7163:d07a%18
IPv6 Default Gateway:
IPv6 DNS Servers: fec0:0:0:ffff::1%2, fec0:0:0:ffff::2%2, fec0:0:0:ffff::3%2

Microsoft Windows [Version 6.1.7600]
Copyright (c) 2009 Microsoft Corporation. All rights reserved.

C:\Users\muaddib>ipconfig

Windows IP Configuration


Ethernet adapter Local Area Connection 3:

Connection-specific DNS Suffix . : tampabay.rr.com
Link-local IPv6 Address . . . . . : fe80::283b:ef7:a6d8:6934%26
IPv4 Address. . . . . . . . . . . : 173.171.121.180
Subnet Mask . . . . . . . . . . . : 255.255.248.0
Default Gateway . . . . . . . . . : 173.171.120.1

Ethernet adapter Local Area Connection 2:

Connection-specific DNS Suffix . :
Link-local IPv6 Address . . . . . : fe80::6842:f0bc:e546:68de%23
Autoconfiguration IPv4 Address. . : 169.254.104.222
Subnet Mask . . . . . . . . . . . : 255.255.0.0
Default Gateway . . . . . . . . . :

Ethernet adapter VMware Network Adapter VMnet1:

Connection-specific DNS Suffix . :
Link-local IPv6 Address . . . . . : fe80::192d:7cb0:7163:d07a%18
Autoconfiguration IPv4 Address. . : 169.254.208.122
Subnet Mask . . . . . . . . . . . : 255.255.0.0
Default Gateway . . . . . . . . . :

Tunnel adapter isatap.{7ED8A7D5-5776-4F59-B391-3C87CC3EF024}:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :

Tunnel adapter 6TO4 Adapter:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :

Tunnel adapter isatap.{A89ABE08-6DD0-4505-A501-62E9997727E1}:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :

Tunnel adapter isatap.tampabay.rr.com:

Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . : tampabay.rr.com

Tunnel adapter Reusable Microsoft 6To4 Adapter:

Connection-specific DNS Suffix . : tampabay.rr.com
IPv6 Address. . . . . . . . . . . : 2002:adab:79b4::adab:79b4
Default Gateway . . . . . . . . . : 2002:c058:6301::c058:6301

C:\Users\muaddib>


Local Area Connection 3 full internet access

Local area connection 2 no internet access

VMWare Network Adapter VMNet1 no internet access


i have installed the latest drivers for the Realtek NICs (version 6.111 2009/9/22)

have attempted:

ipconfig /release

ipconfig /renew

ipconfig /flushdns

i cannot figure out how to get either the VMWare NIC nor the Local Area Connection 2 to connect properly

any help with this?



[ibmsorcerer]

That environment for your main PC works fine for me.

If you check, both of the 2 connections show a 169.254.xxx.xxx address. That basically says they can't get to the network.

Here is the output of my ipconfig and it all works.

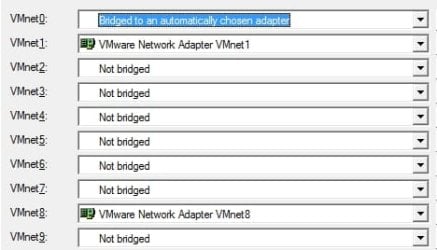

I also included pictures of my VMware Workstation network settings.

C:\Users\moose>ipconfig /all
Windows IP Configuration
Host Name . . . . . . . . . . . . : goose
Primary Dns Suffix . . . . . . . :
Node Type . . . . . . . . . . . . : Broadcast
IP Routing Enabled. . . . . . . . : No
WINS Proxy Enabled. . . . . . . . : No
DNS Suffix Search List. . . . . . : piggy.com
Ethernet adapter Bluetooth Network Connection:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Bluetooth Device (Personal Area Network)
Physical Address. . . . . . . . . : 00-1C-26-94-80-CF
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
Wireless LAN adapter Wireless Network Connection:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . : gateway.5wire.net
Description . . . . . . . . . . . : Intel(R) PRO/Wireless 3945ABG Network Connection
Physical Address. . . . . . . . . : 00-1B-77-F1-0D-4A
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
Ethernet adapter Local Area Connection:
Connection-specific DNS Suffix . : piggy.com
Description . . . . . . . . . . . : Intel(R) 82566MM Gigabit Network Connection
Physical Address. . . . . . . . . : 00-1A-48-EC-54-B6
DHCP Enabled. . . . . . . . . . . : Yes
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::d18:e460:e5e5:6532%11(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.15.27(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.252.0
Lease Obtained. . . . . . . . . . : Wednesday, December 23, 2009 11:18:48 AM
Lease Expires . . . . . . . . . . : Thursday, December 24, 2009 12:36:04 AM
Default Gateway . . . . . . . . . : 192.168.14.1
DHCP Server . . . . . . . . . . . : 192.168.14.10
DHCPv6 IAID . . . . . . . . . . . : 234887787
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-12-B4-9B-5B-00-1A-48-EC-54-B6
DNS Servers . . . . . . . . . . . : 192.168.14.10
NetBIOS over Tcpip. . . . . . . . : Enabled
Ethernet adapter VMware Network Adapter VMnet1:
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : VMware Virtual Ethernet Adapter for VMnet1
Physical Address. . . . . . . . . : 00-50-56-C0-00-01
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::3981:d46b:d491:7fc8%23(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.220.1(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . :
DHCPv6 IAID . . . . . . . . . . . : 570445910
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-12-B4-9B-5B-00-1A-48-EC-54-B6
DNS Servers . . . . . . . . . . . : fec0:0:0:ffff::1%1
fec0:0:0:ffff::2%1
fec0:0:0:ffff::3%1
NetBIOS over Tcpip. . . . . . . . : Enabled
Ethernet adapter VMware Network Adapter VMnet8:
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : VMware Virtual Ethernet Adapter for VMnet8
Physical Address. . . . . . . . . : 00-50-56-C0-00-08
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Link-local IPv6 Address . . . . . : fe80::c909:a70b:340c:c346%25(Preferred)
IPv4 Address. . . . . . . . . . . : 192.168.94.1(Preferred)
Subnet Mask . . . . . . . . . . . : 255.255.255.0
Default Gateway . . . . . . . . . :
DHCPv6 IAID . . . . . . . . . . . : 604000342
DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-12-B4-9B-5B-00-1A-48-EC-54-B6
DNS Servers . . . . . . . . . . . : fec0:0:0:ffff::1%1
fec0:0:0:ffff::2%1
fec0:0:0:ffff::3%1
NetBIOS over Tcpip. . . . . . . . : Enabled
Tunnel adapter isatap.gateway.5wire.net:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft ISATAP Adapter
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Tunnel adapter isatap.{A3EBB5E6-EC0B-4140-9868-CAC3678C993D}:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft ISATAP Adapter #2
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Tunnel adapter Teredo Tunneling Pseudo-Interface:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Teredo Tunneling Pseudo-Interface
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Tunnel adapter isatap.piggy.com:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . : piggy.com
Description . . . . . . . . . . . : Microsoft ISATAP Adapter #4
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Tunnel adapter isatap.{223BDF29-E22F-4B45-8F7A-64895ECC66D7}:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft ISATAP Adapter #5
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
Tunnel adapter isatap.{EA36F33D-8651-4523-A94E-71FCA8B8D039}:
Media State . . . . . . . . . . . : Media disconnected
Connection-specific DNS Suffix . :
Description . . . . . . . . . . . : Microsoft ISATAP Adapter #6
Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
DHCP Enabled. . . . . . . . . . . : No
Autoconfiguration Enabled . . . . : Yes
