ATI Radeon 3650 HD AGP

[Dylantog]

Hello everyone, I registred just because Im getting really annoyed to have no aero and cant play games.

As you see in the title, I have an Sapphire ATI Radeon 3650 HD AGP and I cant get it to work on Windows 7 Home Premium.

I tried many things also listed on this forum, downloaded agp hotfixes, normal catalyst drivers etc, edited the inf and added:


"ATI Radeon HD 3650 AGP" = ati2mtag_RV630, PCI\VEN_1002&DEV_9596

Tried that with this alone and with every other graphic cards, tried manual and auto(trough catalyst setup) setup but I just cant get it too work.

Also many times I cant manually install as windows says that it didnt find any newer driver then the standard VGA.

This is my pc specs:

CPU: Amd Athlon 2400+ 2 Ghz (I know its old )
Motherboard: SiS K7S8X
RAM: 1 GB

Please I really need help



[torrentg]

Excellent chance you are doing something slightly wrong. I'll upload a package that I'll make for you to lessen the chance of any errors.

Give me a few mins. In the meantime, make sure your motherboard does not use nForce 3 or lower for southbridge. My up is only 50K/sec so....



[Dylantog]

Thank you man

No my motherboard uses SiS southbridge



[torrentg]

You're welcome.

Here's 3650 AGP package, 9.10 Catalyst Suite, x86 32-bit. Use Winrar to extract it to C:\ATI

RapidShare: 1-CLICK Web hosting - Easy Filehosting

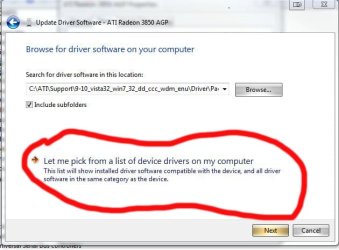

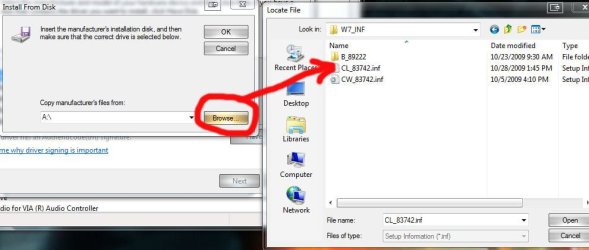

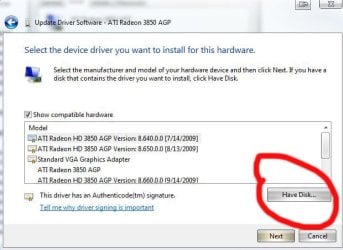

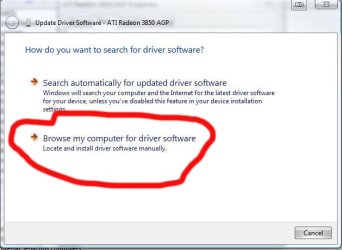

Right click your card in device manager, choose update driver software. Browse. Let me pick. Have disk. Browse. Choose CL_83742.inf in

C:\ATI\Support\9-10_vista32_win7_32_dd_ccc_wdm_enu\Driver\Packages\Drivers\Display\W7_INF

If it complains the driver is not signed, let it install anyway. Reboot and then choose an Aero theme by rt clicking desktop, choose personalize.

Run setup.exe in C:\ATI\Support\9-10_vista32_win7_32_dd_ccc_wdm_enu\Driver
if you want CCC too.



[Dylantog]

-.- First have to wait rapidshare is too busy right now.

Anyway thanks for your help man but I dont have the english Windows 7 but Dutch and I dont know what you mean by this :
Let me pick. Have disk.

Do I just press update driver then let me search and browse to that folder ?
If I do that there is no file selection only folder selection.

Sorry if this was a stupid question :$



[torrentg]

No question is a stupid question.

It's cool because this gives me a chance to show my l33t Photoshop skill0rz.



[Dylantog]

Thanks


Just from there and litterly select the inf file right ?



[torrentg]

Correct. The .inf is located at C:\ATI\Support\9-10_vista32_win7_32_dd_ccc_wdm_enu\Driver\Packages\Drivers\Display\W7_INF\CL_83742.inf



[Dylantog]

Well, it doesnt work, this is what I put in:

C:\ATI\Support\9-10_vista32_win7_32_dd_ccc_wdm_enu\Driver\Packages\Drivers\Display\W7_INF\CL_83742.inf

But when I click ok it says that that file doesnt has a driver for my device ?



[torrentg]

You don't have to enter that. You have to navigate to that location on the hard drive, then click on the .inf.



[Dylantog]

Thanks man I love you (Dont see it wrong xD)

IT WORKED, yeah Nice aero now

and it only worked when I pointed it to the folder and then selecting ATI Radeon 3650 HD AGP.



[torrentg]

Seems you're glad about getting your card working. So am I. Good job.

Save the .rar file for the future. You may need it for a future install.



[Dylantog]

I did I saved it on my external USB for system backup.

BTW how do you know wich thing tp put in the inf file ?



[torrentg]

Trade secret.

heh nah, knowledge of various video cards and which values they should use along with info users give me when I ask.



[Dylantog]

Trade secret.

heh nah, knowledge of various video cards and which values they should use along with info users give me when I ask.

Well nevermind, Im really thankfull you helped me,

Yeah my graphic card got a 6,1 for performance in games and a 4,7 for Windows Aero



[torrentg]

Use ATI Tray Tools to carefully overclock and watch that go up a lot. Read about it if you don't know much. Google is friendly. Make sure fan speed is set high or very high if you do first. You can control that also with Tray Tools.



[BlackDeath]

RapidShare: 1-CLICK Web hosting - Easy Filehosting

torrentg i can't download that file Please upload again because link is dead.

Thank you.



[torrentg]

See post #5

http://www.sevenforums.com/graphic-cards/34889-sapphire-radeon-hd-2400-pro-agp.html



[atatosha]

still have problem with Sapphire Radeon HD3650 Driver

torrentg,
I tried to do this

Instructions for installing ATI HD 2400 PRO AGP, ATI HD 3850 AGP, ATI HD 3650 ALL MODELS x86 32-bit:

1) Download the Catalyst 9.10 32-bit driver Suite for Windows 7 from here - Drivers & Support | GAME.AMD.COM - Click on
ATI Radeon™ Video Card Drivers

2) Extract the driver folder by running the .exe you downloaded. It will extract to C:\ATI

3) Close installer after extraction. No longer necessary. Do not continue with install here.

4) Download my attachment (CL_83742.rar) and extract the .inf file from it. Save to desktop or anywhere you want.

5) Copy and paste the CL_83742.inf you just extracted directly overwriting the original at this location - C:\ATI\Support\9-10_vista32_win7_32_dd_ccc_wdm_enu\Driver\Packages\Drivers\Display\W7_INF

6) Go to device manager and right click on your video card. (Standard VGA or otherwise.) Update driver software, browse, let me pick, have disk, browse.

7) Navigate to C:\ATI\Support\9-10_vista32_win7_32_dd_ccc_wdm_enu\Driver\Packages\Drivers\Display\W7_INF

8) Click (or double click) on the CL_83742.inf

9) Hit ok and let it install. If it complains that it is not signed, let it install anyhow.

8) Reboot if necessary. Pick an Aero theme by right clicking on desktop, Personalize.

10) Run setup.exe in C:ATI\Support\9-10_vista32_win7_32_dd_ccc_wdm_enu\Driver and let it complete to install the CCC, should you want the functionaltiy.

11) Install ATI Tray Tools (attsetup.rar in my attachments) if you wish to overclock. Ensure adequate cooling. Disclaimer - Should you choose to overclock, responsibility falls entirely on you.

12) Update your WEI score. Start menu | right click Computer | Properties | click Windows Experience Index

and the driver installed but after the reboot Windows 7 didn't boot but it was blue screen and reboot

Asus P4R800-V Deluxe
Sapphire Radeon HD3650 512MB AGP
Windows 7 x32



[torrentg]

I tried to do this

Asus P4R800-V Deluxe
Sapphire Radeon HD3650 512MB AGP
Windows 7 x32

Update your bios to latest, first. Then try to find the most up to date drivers for your 9100 IGP, specifically for AGP control (CPU to AGP control in system devices in device manager.)

That's the only chance you have to fix. If not, your motherboard is too old.

Good luck.
