ATi TV wonder pro x64

[Milardo]

I have attached the driver I found that should work for you card. There are instructions on how to get it to work included. I can't test it myself as I don't have a bt878 type card. Let me know if it works for you.



[dani9678]

Thanks... I'll try it now. Do you recommend installing the drivers before the card?



[Milardo]

Not sure what the readme says, but I recommend installing the card before the drivers.



[dani9678]

I've attached the readme file. It doesn't say anything in regards to the card being installed first or after.



[Milardo]

Yes, just took a look at it, it says something about choosing a video capture device, that probably means you have to install the card into computer first.



[dani9678]

OK. Not sure what model this card really is so I guess it will be hit and miss until I pick the right card during the install. I'll go ahead and power down to put the card in and then power back up.



[Milardo]

Ok, let me know if it works.



[dani9678]

OK, I installed the driver but Windows is calling it an Audio Capture card. Sounds like it will only pick up on the audio. When I go into device manager, it still has an exclamation next to multimedia controller card.



[Milardo]

I think in the readme you had to do some special things to get a particular card to work, did you try those things?



[dani9678]

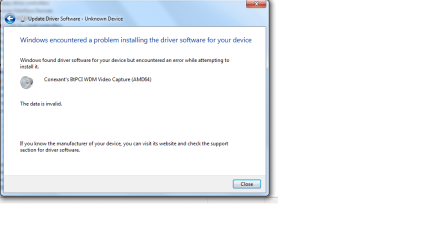

I just got the following error when trying to install the driver for the video portion. It is an attachment.



[dani9678]

I did try the commands that were mentioned but it didn't state if the driver was supposed to be in the home directory(C:\) when the command was entered so I don't know I did it right.

It says that if I do it manually then I will need to know the make and model of card which is a problem.



[Milardo]

there are only two ati cards the tv wonder and tv wonder ve, so you can try both, I might start with the first.



[dani9678]

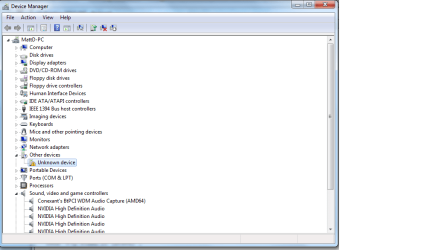

I'll try and see... Here is a screenshot of the device manager.



[Milardo]

Yeah, it is supposed to have Conexant's BtPCI WDM Video Capture (AMD64) as well.



[dani9678]

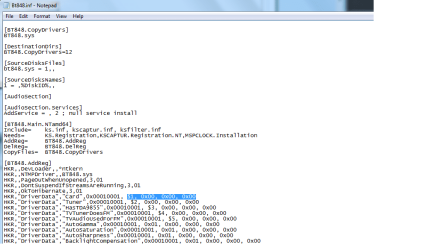

Here is the screenshot of the driver info file. I highlighted the $1 so that you can see where it is. It says to replace it with the hex version of the card. I don't know if they mean to replace $1 or one of the 3 0x00s that are separated with a coma or all 3 with the same?



[Milardo]

You just have to replace the $1 with the hex value of the chosen card.



[dani9678]

Yeah I figured I'd try that. Worst case would be that it wouldn't work.



[Milardo]

If the first one doesn't work, try the other card as well.



[dani9678]

Device manager keeps telling me it's invalid. I tried it with both cards for the video portion.



[Milardo]

Did you also replace the $2 and the rest of the values?
