Solved Can I connect this psu with a 20+4 pin power connector to a msi b250m

R

recoveryroom42

New member
Local time
10:50 PM
Messages
8
Psu is a liteon ps-6301-08a 300watt

Motherboard is msi b250m pro-vd


If so, how are they oriented?

I'm rebuilding an acer for dedicated use in a home recording studio.


Thanks in advance.


Attachments

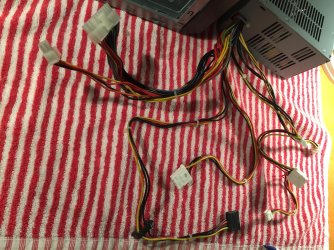

  • image1 (1).jpg
    image1 (1).jpg
    1.1 MB · Views: 1

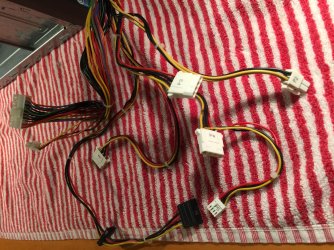

  • image1.jpg
    1.1 MB · Views: 0

My Computer My Computer

At a glance

win7 64bit
Computer type
PC/Desktop
Computer Manufacturer/Model Number
dell n7110
OS
win7 64bit
Yes you can, but it's a old PS on a new MB. Don't recommend it. What CPU and GPU you're going to use?
- The main connector (20+4) has to be installed together as one. the two pieces will only join perfectly in one side and direction.
- The four pin (2 yellow+2black) is to be connected near the CPU.
- The Molex connectors (P3 and P4) are for old HDD and P5 is for Floppy drive. Useless.
- There is only two SATA disk connectors on same cable.


My Computers My Computers

System One System Two

  • At a glance

    Windows 7 HP 64i5 6600K - 800MHz to 4200MHz4+4G GSkill DDR4 3000IG - Intel 530
    Computer type
    PC/Desktop
    Computer Manufacturer/Model Number
    custom build
    OS
    Windows 7 HP 64
    CPU
    i5 6600K - 800MHz to 4200MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    500Mb/s
    Browser
    Firefox 64
    Other Info
    TinyWall firewall

  • At a glance

    Windows 7 Proi7-4500U 800MHz to 3.0GHz(4+4)G DDR3 1600IG intel 4400 + NVIDIA GeForce GT 745M
    Computer type
    Laptop
    System Manufacturer/Model Number
    Asus Q550LF
    OS
    Windows 7 Pro
    CPU
    i7-4500U 800MHz to 3.0GHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics Card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs +
    1T HDD for data
    Internet Speed
    500 Mb/s
    Browser
    Firefox
    Other Info
    TinyWall firewall
Megahertz07 said:
Yes you can, but it's a old PS on a new MB. Don't recommend it. What CPU and GPU you're going to use?
- The main connector (20+4) has to be installed together as one. the two pieces will only join perfectly in one side and direction.
- The four pin (2 yellow+2black) is to be connected near the CPU.
- The Molex connectors (P3 and P4) are for old HDD and P5 is for Floppy drive. Useless.
- There is only two SATA disk connectors on same cable.
Click to expand...


Thanks for the reply, i see how to lock the connectors.

The new board has an 8pin for the cpu power and this is obviosly quite old, so it looks like i'll go with a new psu.

thx again


My Computer My Computer

At a glance

win7 64bit
Computer type
PC/Desktop
Computer Manufacturer/Model Number
dell n7110
OS
win7 64bit
You can use the four pin for the CPU if it is low power consumer. You didn't answer what CPU and GPU you're going to use.
