Cannot Identify this slot.. Need a graphics card for this PC

Naheed

New member
Local time
10:39 PM
Messages
28
Hi,

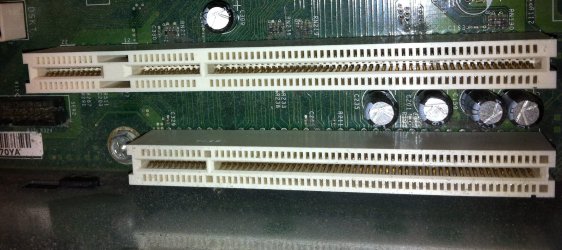

I have a dell optiplex which I think has a PCI slot but I am unsure if it is a PCI. As the connectors are so different.. I wish to get a low profile graphics. It is a slim line desktop.. Any ideas..


Attachments

  • Photo 2014-01-13 9 55 41 AM.jpg
    Photo 2014-01-13 9 55 41 AM.jpg
    392.9 KB · Views: 3

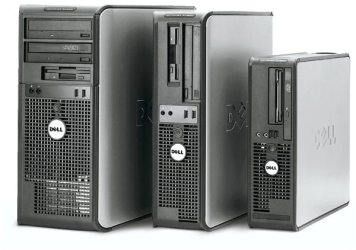

  • dell-optiplex-gx520-desktop-pc.jpg
