Solved Fan placement in chassis.

[Anesthetic]

I'm having real trouble figuring out which way these case fans go. I'm getting confused which side the wind blows as exhaust outside of the case. It would be nice if they came with stickers that said EXHAUST or INTAKE. lol.

This is the fan I purchased is as follows: Amazon.com: Corsair Air Series AF140 LED Quiet Edition High Airflow Fan - Blue (CO-9050017-BLED): Computers & Accessories

I just want to make sure that the fan exhausts through the top of my case. I have a Rosewill Blackhawk.

Additionally, can you guys help me fine a 120mm x 18mm or thinner fan? Thank you.



[Lady Fitzgerald]

If you look closely on the sides of the fan body, you should see an arrow faintly molded into the plastic to show air flow direction. Also, air usually flows toward the frame that holds the center hub of the fan blades.



[Anesthetic]

If you look closely on the sides of the fan body, you should see an arrow faintly molded into the plastic to show air flow direction. Also, air usually flows toward the frame that holds the center hub of the fan blades.

What about 15-18mm fans (120mm) motherboard cooler ones. I am having a hard time finding one. Not sure about how many RPMS I need, too?



[ignatzatsonic]

What about 15-18mm fans (120mm) motherboard cooler ones. I am having a hard time finding one. Not sure about how many RPMS I need, too?

Do you care how much noise the fans make?

I'm not sure I ever heard of anyone wanting a fan just to cool the motherboard. Where would you intend to mount it?

Do you have some peculiar situation that you think generates an abnormal amount of heat and therefore requires unusual cooling?

Do you have any specific reason to think that your temps are too high without this motherboard fan?

Downblowing CPU coolers usually provide a greater degree of motherboard cooling than do standard tower coolers, but the more typical idea is to just ensure that your fans generally encourage front to rear airflow--sucking cool air in on the front side and blowing it out the backside. Fans on tower coolers should be mounted in such a way as to coincide with this front to rear idea.

Fans on the top or side panels of the case may or may not help--you'll have to experiment. If you are a practicing fanaholic, you'll want a bunch of case fans regardless. Otherwise you might want 2 or 3.

That case has comes with 4 fans and can mount a total of 6 or 7. I'd start with one or two front intakes and one rear exhaust and then evaluate temps and noise. If temps were too high, I'd experiment with the other fans or consider replacing the two ro three I started with, depending on noise levels.

Here's a list of slim 120 mm fans under $25:

$10 - $25, $0 - $10, case fans 120 mm slim - Newegg.com



[AddRAM]

The part with the frame holding the fan is the exhaust side.

You want AF fans to blow free air, you want SP fans for radiators and when the fan is against a hard drive cage.

Although, I use AF`s everywhere accept the radiator.

RPM`s are not a major concern, your not gonna run them at max rpm anyway.

Just browse through Newegg for fans, I doubt you`ll find thin fans, I can`t even add fans to the bottom of my rad because they would hit the motherboard. I would need to find some adapters and use 120 mm fans.

Corsair sells 2 types of fans, Performance edition and Quiet edition, so do your research and get what you want.

Corsair Air Series Case Fans — Air Series fans deliver an extraordinary balance of airflow and low-noise to for quieter operation and higher performance



[ThrashZone]

Good case fans I have 3 of them plus 1 af120

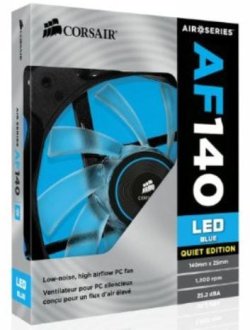

The image of them showing in the box shows the intake side of the fan or pull

Fan rpms can be set in the mother board bios I have mine on turbo mode which is about 1500rpms

cpu liquid cooler sp140 fans are set to performance mode which is about the same rpms using Corsair link utility.



[linnemeyerhere]

If you want a great thin fan then look no farther !

Amazon.com: Scythe Slip Stream Slim 120mm Case Fan (SY1212SL12L): Computers & Accessories



[linnemeyerhere]

Here's someone with your very issue I think, same case for sure !

Amazon.com: G.M. Knowles' review of Scythe Slip Stream Slim 120mm Case Fan (SY...



[AddRAM]

Alan, can you find them in a 140 mm version ?

I think they would fit nice. Then I could attach my Corsair LED`s I ordered to the bottom of the rad and put the thin ones on the top.



[Lady Fitzgerald]

I bought one Scythe but never again; the airflow rating was exaggerated and the noise level rating was understated.



[linnemeyerhere]

Alan, can you find them in a 140 mm version ?

I think they would fit nice. Then I could attach my Corsair LED`s I ordered to the bottom of the rad and put the thin ones on the top.

Here you go for the 140mm options.

Scythe USA

I would say that they work as intended but for noise I would speed voltage limit them for sure, I did this in a rig with limited space for the exhaust side (120mm) of a push pull water radiator and they worked great just as you are mentioning !



[AddRAM]

Thank you very much, they will be used more as a spacer then anything, I can run them off the motherboard and control the speeds to keep them quiet



[ThrashZone]

Yea I'm liking my air flow now a lot better with another af140 on the bottom of the case instead of the 980 hybrid radiator there
It was blocking half of the bottom fan of the h110i gt = now not



[Anesthetic]

Thanks guys! I appreciate it. I actually end up sending the entire computer back and lost a great deal of money on fans. They sent me a case that was slightly damaged and the usb header cable was lacerated. I went with Xidax instead. Hopefully it goes well! Check out the specs though.



[ThrashZone]

This one ?



[Mellon Head]

That's a nice case.



[ThrashZone]

Yep looks like a corsair replica
My 450D looks exactly like it except that one has 2 extra slots for additional goodies
Mine only has 2 slots period but it's also a mid tower that looks like a full tower.

Darn thing has my LG burner too



[Anesthetic]

This one ?

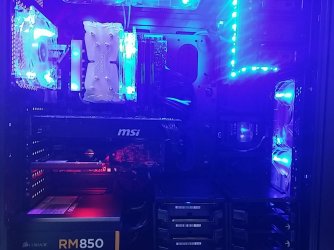

See attachment. Yep! That's the case! This is the inside.



[ThrashZone]

Nice color



[Anesthetic]

Nice color

Thanks. I don't have it yet though Lol. Shipping soon!
