Installing Windows 7 on intel Comet Lake ?

[phoenixFlight]

Hello. Long story short, I wanna install W7 on my Pentium Gold G6400 system. I dunno how can I slip intel (and which ones to get) USB3 drivers, on the ISO image. I have no PS/2 keyboard/mouse nor a optical disc drive.
I found some complicated stuff online, but most requiere a windows OS, I have Linux atm (Fedora).
I can fire up a VM though and get to some windows OS.
Please,is there someone that can guide me,step by step,on how can I make / install ? And if there is any chance I could get a intel graphics driver working for UHD 610? (I know officialy ,is none).

Thank you very much .



[SIW2]

The update ( .msu file ) and driver at the bottom of all my posts is for usb3.
https://www.sevenforums.com/attachm...oting-new-pc-usb-3-0-ports-usb3_win7_2021.zip

The update ( windows6.0-kb2864202-x64.msu file ) must be integrated first, then after that the drivers.

Dism++ can be used to do it

In windows it can be done by mounting the installation media.

For boot.wim mount image 2

For Install.wim select the image of the Edition (Home, Professional, etc ) that you want

Then add the update to the mounted image

then add the drivers to the mounted image

then save the image

then unmount the image.



Create an EMPTY folder.



Give it a name - I called it MOUNT

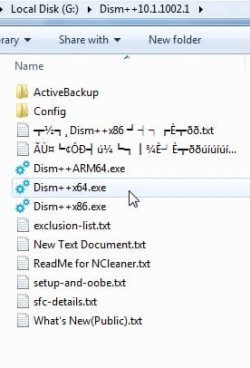

Run Dism++



Click File > Mount Image

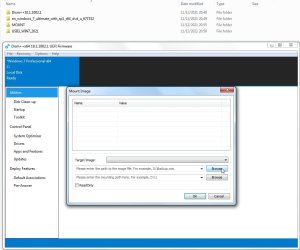

Browse to the wim file

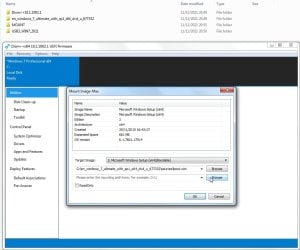

Select the image in the dropdown. For boot.wim select Image 2.

For Install wim select your Edition ( e.g. Home Premium or Professional )




Browse to the mount folder

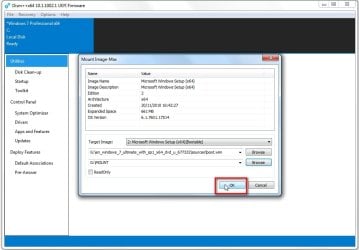

Click OK



After it has mounted Click "Open Session"




Click "Updates" in the left pane. Then Click ADD



[phoenixFlight]

SIW2, thanks a lot for all your effort,man. Will try your guide !



[SIW2]

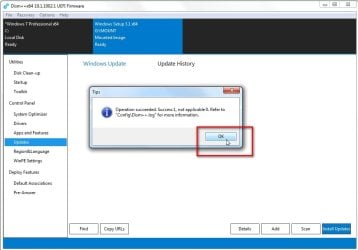

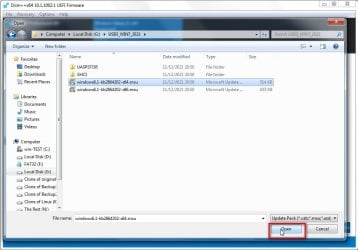

Browse to the update FILE





Click Drivers in the left pane. Click ADD



Browse to the Drivers FOLDER( in this case the UASPSTOR x64 folder )

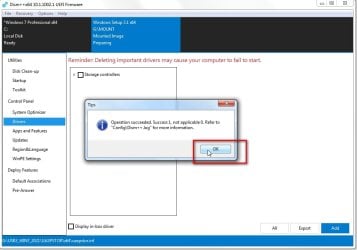

Click ADD


Browse to the XHCI x64 folder

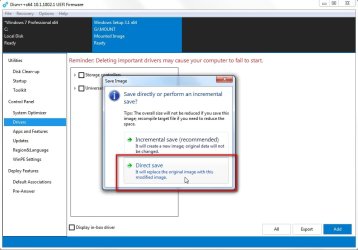

File > Save Image





File > Unmount Image



[phoenixFlight]

Ok,did it. after adding them, I then made a bootable ISO again with Imgburn, I wrote it with Rufus ( Screenshot - 0ef40060cf42173ed8c77a1f81bb59dc - Gyazo ) in GPT partitioning scheme (my BIOS doesnt allow me to enable CSM, if I dont have a dedicated graphics!) , and it boots, loads the Windows 7 animated logo, and then...complete freeze .

A hard reset is needed after that.

Did that a few times.



[SIW2]

You will need more than just usb3 drivers. Particularly if you dont have csm enabled. You could ask at win raid
Forum - Windows 7/Vista/Server 2008 » Comet Lake - Windows 7 - Z490 - Intel Driver



[SIW2]

If you want to install win7 without csm, you could try Releases . manatails/uefiseven . GitHub



[phoenixFlight]

If you want to install win7 without csm, you could try Releases . manatails/uefiseven . GitHub

Thanks ,that looks promising !



[erpster4]

You will need more than just usb3 drivers. Particularly if you dont have csm enabled. You could ask at win raid
Forum - Windows 7/Vista/Server 2008 » Comet Lake - Windows 7 - Z490 - Intel Driver

though I heard a few weeks ago the win raid forum is closing down for good by the end of 2021



[SIW2]

Currently, Win-Raid has some bigger issues to overcome, before thinking about these "details" (wish they were details but anyway...). Meaning, the transition of the forum software and DB to a format which will allow migration and future control. Our current plan/discussion involves that as a first step as well, so we need some time to have a cleaner picture of what the near future will look like for this forum. To answer your question more directly, it will probably be a merger of sorts, we'll see when we know what we're dealing with.

...To sum up, the current situation/plan is vastly better than last week's future prospects. So we need to let it play out. Sit tight and if we need some help from our users during this process/plan, we'll let you know.

Forum - RE: Win-Raid Forum future announcement - 4

Forum - RE: Win-Raid Forum future announcement - 5



[SamBox436]

BTW Where is the Intel UHD Graphics 630 drivers?
For Windows 7 Install



[erpster4]

BTW Where is the Intel UHD Graphics 630 drivers?
For Windows 7 Install

try in win-raid forum from this topic



[SamBox436]

Bruh...

One Slight problem...

Nothing found — Yandex.Disk

When I went there it says this...

Nothing found
The owner either removed the files or restricted access, or there's a typo in the link.​



[SIW2]

One Slight problem...

Nothing found — Yandex.Disk

When I went there it says this...

[FONT=&]Nothing found[/FONT]
[FONT=&]The owner either removed the files or restricted access, or there's a typo in the link.[/FONT]​

who are you replying to ? Might be better to ask at win raid forum.



[giantsps2]

The update ( .msu file ) and driver at the bottom of all my posts is for usb3.
https://www.sevenforums.com/attachm...oting-new-pc-usb-3-0-ports-usb3_win7_2021.zip

The update ( windows6.0-kb2864202-x64.msu file ) must be integrated first, then after that the drivers.

Dism++ can be used to do it

In windows it can be done by mounting the installation media boot.wim file image 2
Then add the update to the mounted image
then add the drivers to the mounted image
then save the image
then unmount the image.

Do the same with whatever your image number is in install.wim

You can try the biostar graphics drivers - they work perfectly for my uhd630, maybe they will suport your uhd610 as well.

need driver for intel uhd620

- - - Updated - - -


View attachment 420624

Create an EMPTY folder.

View attachment 420623

Give it a name - I called it MOUNT

View attachment 420622

View attachment 420621

Click File > Mount Image

View attachment 420628

View attachment 420627

Browse to the wim file
View attachment 420626

Select the image in the dropdown. For boot.wim select Image 2
View attachment 420625

Browse to the mount folder
View attachment 420633

View attachment 420632

Click OK
View attachment 420631

After it has mounted Click "Open Session"

View attachment 420630

Click "Updates" in the left pane. Then Click ADD

View attachment 420629

Yo! I just tried this on my Dell 3880 and it worked! However, the updates are an issue though. So, I installed these updates with NTLite for the WIM, and Windows 7 gets to the desktop, but if I reboot, the updates fail, and then the whole thing's unbootable! Anyone know why this problem is?



[SIW2]

Probably easier to run simplix for the updates https://update7.simplix.info/UpdatePack7R2.exe

Or update the installation media first
Update your Win 7 installation media



[giantsps2]

Probably easier to run simplix for the updates https://update7.simplix.info/UpdatePack7R2.exe

Or update the installation media first
Update your Win 7 installation media

Does Simplix work for deploying drivers into WIMs?

- - - Updated - - -

Actually ignore that. However does it work offline?

- - - Updated - - -

Okay NEVER MIND that, I just remembered to use it in the OS, I need the updates installed beforehand, sooo... I'm going to try your tool

- - - Updated - - -

Probably easier to run simplix for the updates https://update7.simplix.info/UpdatePack7R2.exe

Or update the installation media first
Update your Win 7 installation media

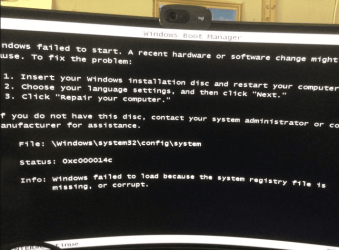

Hi, so I tried your tool and made it to 7's desktop. I went and installed SHA2 updates, but then 7 became unbootable again. The screen would glitch at the top right but then it'd auto reboot. I also tried integrating the SHA2 updates to the modded WIM, as well as another option in DISM++, but now there's a startup error - to be specific, error code 0xc000014c for \Windows\system32\config\system. I'll attach the full error below, but do you understand why I'm getting this error?



[SIW2]

so I tried your tool

The tool integrates the sha2 updates. You dont need to do it again.

do you understand why I'm getting this error?

there is some corruption of the system hive.



[giantsps2]

It integrates the sha2 updates. You dont need to do it again.

Does it include the KB versions of KB4474419 and KB4490628?



[erpster4]

Does it include the KB versions of KB4474419 and KB4490628?

yes they are included
