My first solid state.

[panais]

So, disable the onboard controller then, and I bet your error goes away at startup. You have 4 devices and they are all running on the Intel controllers.

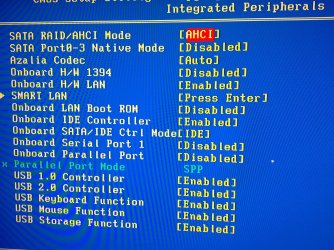

I will enable the first in the list, the SATA RAID\ANCI i wil set it to ANCI

And i wil disable the ninth in the list,the Onboard SATA/IDE Ctrl Mode i will set it to IDE because there is not any disable option on that..


Ok Guys restarting......



[panais]

Ok i have done the above steps and i think we eliminate the first error message?

But now,What is that??? I get this message then windows start normally.

Well i thing i will.....

""I will enable the first in the list, the SATA RAID\ANCI i wil set it to ANCI""

""And i wil disable the ninth in the list,the Onboard SATA/IDE Ctrl Mode i will set it to IDE because there is not any disable option on that..""

And i will reinstall the windows!! I believe THE FIRST TIME i enable the wrong ANCI.

ANY ADVICE BEFORE I START THE REINSTALLATION?



[Hopalong X]

Panais

Nothing else I can think of. I can't speak for the others.



[pparks1]

No, that looks good. Exactly what I see on my machines.



[DeaconFrost]

That's exactly how it looks on my Gigabyte board. FYI, it's AHCI. I know the font Gigabyte uses isn't the easiest to read.



[panais]

No, that looks good. Exactly what I see on my machines.

""No, that looks good. Exactly what I see on my machines.""

Really? You mean everybody with SSD\ANCI have the same message in POST??

Or is just a Gigabyte thing???

I had enable the wrong ANCI though so i will start again in a minute the format\installation in my new ssd.

And i hope i will be happy with my ocz vertex! I hope!!

A! give me a minute i have some new screenshots from my bios.



[Wishmaster]

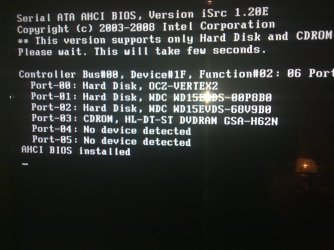

Yes, that is what it looks like when AHCI posts.

Perfectly normal.



[panais]

Yes, that is what it looks like when AHCI posts.

Perfectly normal.

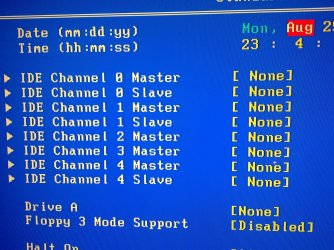

Please check well all the screenshots and tell me if you see anything wrong in this settings,or anything you dont like it!

This is how its look like now!!



[Wishmaster]

The only thing I can think of ATM that may be worth mentioning ...

Some Motherboards, if AHCI is enabled, will not boot from a CD if there is a OS installed on the system.
Even if it is set to CD/DVD as first boot device.

If yours does this:

On a Gigabyte board, when the motherboard splash screen comes up, just press F12 (I think it is .. please confirm) for a Advanced Boot screen.

Select CD/DVD drive and it will then boot from the CD/DVD.

Not all boards require this, just thought it was worth mentioning in case you decide to re-install from scratch and the Win7 DVD will not boot.
You'll know how to proceed.



[panais]

The only thing I can think of ATM that may be worth mentioning ...

Some Motherbaords, if AHCI is enabled, will not boot from a CD if there is a OS installed on the system.
Even if it is set to boot from CD as first boot device.

If yours does this:

On a Gigabyte board, when the motherboard splash screen comes up, just press F12 (I think it is .. please confirm) for a Advanced Boot screen.

Select CD/DVD drive and it will then boot from the CD/DVD.

Not all boards require this, just thought it was worth mentioning in case you decide to re-install from scratch and the Win7 DVD will not boot.
You'll know how to proceed.

Do you Guys see anything wrong or strange in the above screenshots?



[Hopalong X]

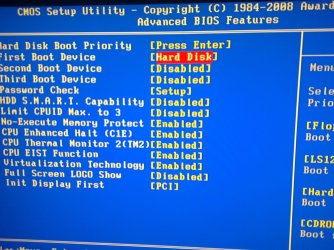

First boot would be DVD/CD and Second boot Hard disk on many motherboards but I don't know if you can set yours that way as Wishmaster has pointed out.

So it may be best to follow Wishmasters instructions in above post #69 and I quoted below.

If yours does this:

On a Gigabyte board, when the motherboard splash screen comes up, just press F12 (I think it is .. please confirm) for a Advanced Boot screen.

Select CD/DVD drive and it will then boot from the CD/DVD.

I think we covered everything.
Mike



[panais]

First boot would be DVD/CD and Second boot Hard disk on many motherboards but I don't know if you can set yours that way as Wishmaster has pointed out.

So it may be best to follow Wishmasters instructions in above post #69 and I quoted below.

If yours does this:

On a Gigabyte board, when the motherboard splash screen comes up, just press F12 (I think it is .. please confirm) for a Advanced Boot screen.

Select CD/DVD drive and it will then boot from the CD/DVD.

I think we covered everything.
Mike

Well the settings are these in the above screenshots.

I will start reinstalling windows in a minute.

I will post back with news.

Restarting............



[essenbe]

Looks like I'm late to the party.



[Hopalong X]

Waiting on results.

Just like election night.



[essenbe]

I think this might be a case of no news is good news.



[Golden]

I'm a bit late on this, but as a Gigabyte MOBO owner just want to say that all the settings in those screenshots look perfect to me. Happy days with the SSD



[Hopalong X]

I'm a bit late on this, but as a Gigabyte MOBO owner just want to say that all the settings in those screenshots look perfect to me. Happy days with the SSD

Your always fashionably late to the party!!!

It is getting late in Europe so we may not hear back until tomorrow U.S. time.
Or he is trying to wear it out already!



[panais]

I have done everything,

ANCI in bios,install win 7,install ati catalyst run WEI,install all my programs,etc,i finish and i shutdown the pc.

Today at i start the pc and mbam! BSOD,restart,tried to enter safe mode but it freeze,so i press the reset button and this time i enter windows but again BSOD,restart BSOD,restart and enter windows,run the WEI and hdtune read benchmark.

So i set in bios to IDE,reinstall windows,install ati catalyst,run WEI hdtune read benchmark and here im in IDE mode.

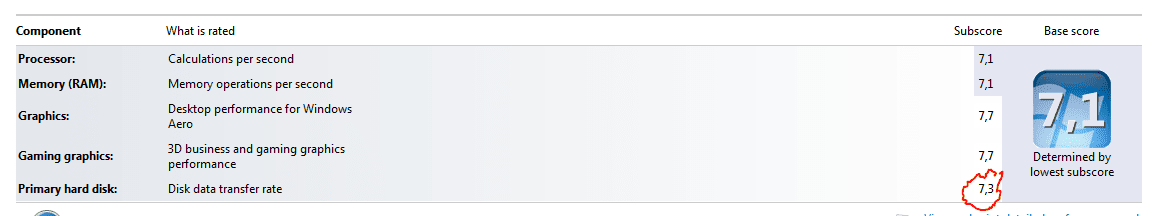

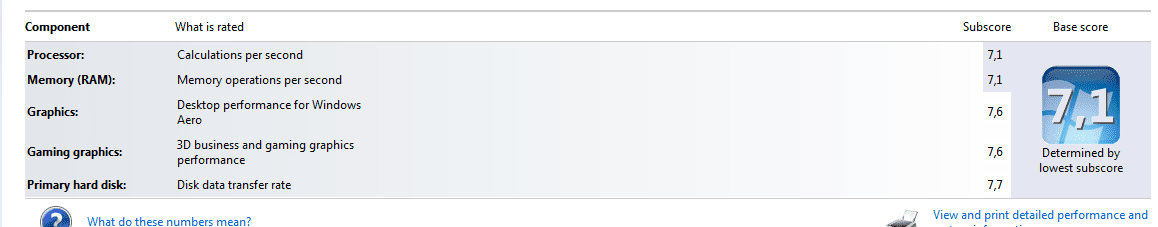

I upload the 2 WEI and the 2 hdtune read benchmarks in IDE and ANCI.

Im not good in reading benchmarks,so can you tell me which is faster IDE or ANCI?



[essenbe]

AHCI is generally accepted to maximize performance. Do you have the latest firmware?



[panais]

AHCI is generally accepted to maximize performance. Do you have the latest firmware?

You mean in the above HDTue benchmark ANCI shows faster?

No i didnt made any firmware update.

Now im in IDE mode in bios,because in ANCI mode i had BSOD.

Any advice for further steps?
