on my Asus laptop i have only "stereo" as an option

[sparnuk]

I want to use my home theater 5.1 system but realtek shows only stereo, there are no other options.
I am using AUX for connection
I have updated the driver. No reaction
what should i do? how can I add to the list 5.1 or 7.1 options?



[fireberd]

You would have to use an external (USB Connected) sound card that will provide the 5.1 or 7.1. No way to modify the built in sound chip to get that.



[rvcjew]

What model is the laptop, you can only get 5.1 out of an optical, S/Diff adapter normally or out of the hdmi. A single 3.5mm cable is only two channels.



[society misfit]

[FONT=&quot]The Geforce 820M graphics chip supports up to 7.1 audio through the HDMI connection. If your Home Theater receiver has HDMI input then give that a try. [/FONT]



[sparnuk]

Dear all
thanks for your hints
i Will try to answer w all of you:

Fireberd - I have one very old laptop and in Realtek manager it has options to choose 2.1 /5.1 /7.1. Maybe sound which is going out using AUX has only 2 channels but at list in the manager i have this options

rvcjew - My laptop is ASUS X552L, i3-4030U, Geforce 820. I am not advanced user, please tell me what is S/Diff?

society misfit - My home theater has only HDMI out not in. But i connected TV with HDMI, sound is transferred but still the same only stereo option, see picture below

Waiting for other hints
thanks in advance



[rvcjew]

Dear all
thanks for your hints
i Will try to answer w all of you:

Fireberd - I have one very old laptop and in Realtek manager it has options to choose 2.1 /5.1 /7.1. Maybe sound which is going out using AUX has only 2 channels but at list in the manager i have this options

rvcjew - My laptop is ASUS X552L, i3-4030U, Geforce 820. I am not advanced user, please tell me what is S/Diff?

society misfit - My home theater has only HDMI out not in. But i connected TV with HDMI, sound is transferred but still the same only stereo option, see picture below

Waiting for other hints
thanks in advance

What is your TV, and home theater receiver model? We can help you better with this. It seems your going to probably need to do what's called optical pcm out of your laptop to recover or pc to TV then TV might be able to output to the receiver.
EDIT: also do you have a item called nvidia control panel if you right click your desktop?



[sparnuk]

I have Samsung TV and Samsung home theater
I just reinstaled Nvidia drivers and now i have nvidia control panel, before i hadn't. But in this control panel you can change some 3D options



[rvcjew]

I have Samsung TV and Samsung home theater
I just reinstaled Nvidia drivers and now i have nvidia control panel, before i hadn't. But in this control panel you can change some 3D options

Odd you can't change things like resolution. It must all be handled by the Intel application. Can you post a pic of the Intel sound options If you have any in its graphics options.



[fireberd]

In ref to your comment about an old PC having 5.1. That is a function of how it was designed. Because one has it does not mean another will. And its not a software (sound driver) issue, its how the hardware is designed by the PC or motherboard vendor.

I recall some Dell's that have a Digital out and that is only two channel stereo, but some others have 5.1. It was the hardware design that controlled that on those models.



[rvcjew]

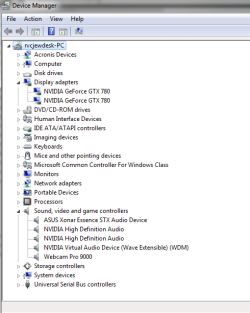

Okay I have gotten off my phone so that I can post pictures for you. There is not much shown by asus for specs of your model, can you post a pick of what sound card and gpu is in your system in device manager like how I shown below, and if your tv supports optical out you can most likely send it to your samsung receiver, but we can't know for sure unless we have the model that is more than samsung everything (like the label on the back of the tv and receiver) its just odd that your system is said to have only an nvidia gpu when it seems to have both an dedicated and onboard one.



[sparnuk]

thanks fireberd

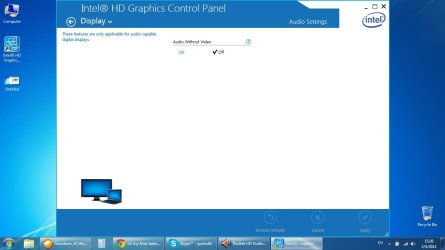

as for intel audio options, it looks very poor

i want to make one point clear, i do have sound transferred to TV but in options there is still only stereo and i cant enjoy 5.1



[sparnuk]

if TV will not have this option this is different. My concern is that i cant find this option in my laptop



[rvcjew]

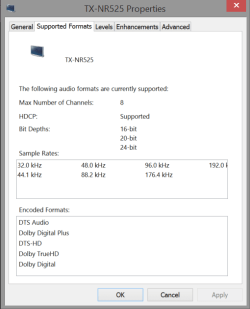

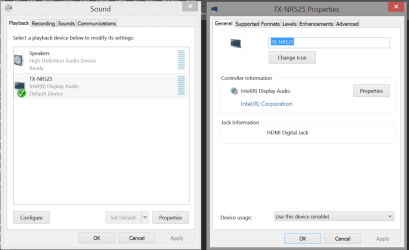

Perhaps your tv only supports stereo for some reason does it list anything about what the tv supports when you look at the properties. Here is a picture of what my Intel HD chip supports on my work laptop, should look similar.



[sparnuk]

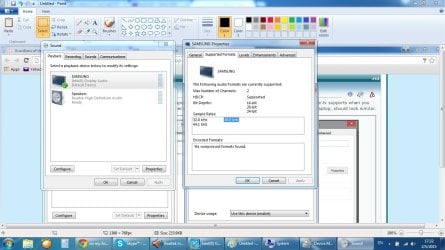

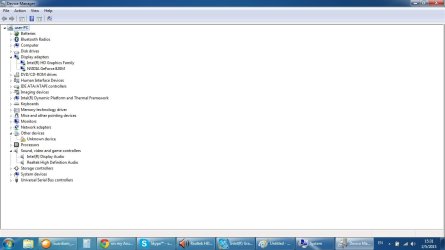

please have a look

you think that if connected device will have more than 2 channel support i will get additional options in config?



[rvcjew]

yes, also i jsut got out of oral surgeruy so am a little loopy atm, so replies may be slow im suprised that intel dislay audio does not show your tv model though. It seems the tv it self may be your hindurance. Can you get the model of just the samsung receiver for me im sure it must have an optical in somehwhere.
Malcolm.



[sparnuk]

if i will find the specifc model nuber i will reply
thanks



[rvcjew]

if i will find the specifc model nuber i will reply
thanks

Okay no rush.



[sparnuk]

Here is rhe tv model



[society misfit]

[FONT=&quot]Sparnuk, If your display supported 5.1 through HDMI, it would have showed up in your control panel. Your Samsung display does not support 5.1 nor does it have an optical out or better known as a SPDIF out to connect to a supporting receiver Not[FONT=&quot]e:[/FONT][/FONT][FONT=&quot][FONT=&quot][FONT=&quot] SPDIF, or as rcvjew calls it S/DIFF, stands for Sony, Philips Digital Interface.

[/FONT][/FONT] If you could post the model of your Surround Sound Receiver I could tell you if it is even possible to setup 5.1 Surround Sound from another source. What you may need is an external USB sound card. But not knowing what your receiver can accept I can’t tell for sure.[/FONT]



[sparnuk]

hi "society misfit" here is the model SAMSUNG HTZ315
