Post Your Overclock! [2]

[A Guy]

Hanns-G are the gaming monitors from Hannstar. They manufacture their own panels. A Guy



[ganjiry]

Hanns-G are the gaming monitors from Hannstar. They manufacture their own panels. A Guy

Cheers chap
For the price they're really good, Better than my last LG one that cost twice as much lol.



[Solarstarshines]

Be careful with the paste, some of the GPU dies are tiny and need only a touch.

I gave up on that GPU it is going back to Visiontek ,also i had bigger fish to fry my system went Apesh*t

Barley got it back to reality @Kelly Thanks Bro for all the help i was doing all that through my phone as both of my systems got that stupid error



[kbrady1979]

Glad you got it worked out. Some issues such as the one you were having is really hard to narrow down and pinpoint.



[Solarstarshines]

Glad you got it worked out. Some issues such as the one you were having is really hard to narrow down and pinpoint.

I went through everything reseated GPU /CPU changed the order of Sata cables seem to help reconize the drives none of my fans came on from the fan controler so i am like wow wth

So i had to re cable manage my build and start using the fan connectors on the board

I just don't get how it went coo coo out of no where :sarc:



[kbrady1979]

Spent some time in the BIOS and got the voltage lowered a little bit. This is pretty close to how I had everything before I tried to hit 5.0 jiggahertz and restored factory defaults.



[paulpicks21]

Spent some time in the BIOS and got the voltage lowered a little bit. This is pretty close to how I had everything before I tried to hit 5.0 jiggahertz and restored factory defaults.

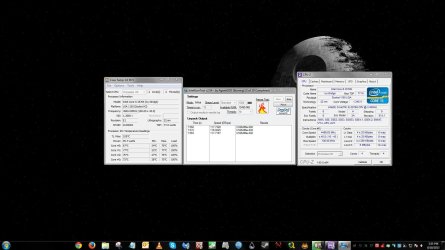

View attachment 282093

Lol, the joys of heavy OC's Kelly! Glad you are back to normal, nice voltage and temps.



[Solarstarshines]

Spent some time in the BIOS and got the voltage lowered a little bit. This is pretty close to how I had everything before I tried to hit 5.0 jiggahertz and restored factory defaults.

View attachment 282093

Lol, the joys of heavy OC's Kelly! Glad you are back to normal, nice voltage and temps.

Yes indeed I haven't gotten around to playing with the oc again what would be max safe temp for these chips it says TJmax 105c but I find that hard to believe

I read somewhere under 85 is is considered great that is what I am shooting for which I am there but what would be safe for you guys I think voltage wise I think it's pretty good I felt 1.285 to 1.295 is too much riding on 1.3



[Solarstarshines]

Nearly there,
It would post but not boot with 5.0Ghz @ 1.488v bsod service exception. So i'll get the bottle up at some point and give the v-core another nudge lol. It's not good for my heart lol

Here's the updated realbench if anyone wants it https://dl.dropboxusercontent.com/u/26253730/RealBench_v1.1.rar

Ryan try FSB 205 /Multi 23.5

LLC should be extreme /you can leave the other on auto if you are going .5 on the bus

1.5 is the voltage for 5,0 ghz no matter what some 1.51 because it needs that extra to get over

good luck with it you only need it to take a pic so keep a eye on temps and if you run a stability test and see it heating up let it go and save your self the bsod if the temps go over 61 to 62c lock up and bsod may occur that is the wall and the chip can't take anything over 60c so be careful



[kbrady1979]

Are you still running a manual voltage, or an offset.....I can't remember. 4.7GHz @ 1.272 is great and as far as temps go, if it gets to 85 only when stress testing, you are good to go. Fire up Core Temp and let it idle for about 10 minutes, and then use your PC for something you do normally that will tax the CPU some and record both sets of temps. I'm betting you don't get past 60* except when you are stressing it.



[Britton30]

Kelly I try not to do any testing that gets me over 92C, but I didn't shut IBT down fast enough and my Sandy did hit 101C once. I was trying in the 5+ GHz ballpark.



[kbrady1979]

I've seen mine get to 86* at my maximum OC of 4948MHz. I know it'll never get anywhere near that hot with regular or even heavy usage. Unless I'm stress testing, mine never gets past 55*C.



[Solarstarshines]

Are you still running a manual voltage, or an offset.....I can't remember. 4.7GHz @ 1.272 is great and as far as temps go, if it gets to 85 only when stress testing, you are good to go. Fire up Core Temp and let it idle for about 10 minutes, and then use your PC for something you do normally that will tax the CPU some and record both sets of temps. I'm betting you don't get past 60* except when you are stressing it.

Correct only when stress testing also manual voltage is actually set to 1.270 and the offset because the LLC is ultra keeps it a little over which is fine by me

I think Manual voltage works better for me than offset because I have more room to play around
Also knowing the range in volts to the frequency is a plus ,that is how I learned to overclock from the get go studied people 's ranges and volts they use and apply my own formula

I do check temps after gaming for a few hours usually hover round 49c or a little under running WEI gave it low 50 nothing over 60



[kbrady1979]

You can still have a good range with an offset, and with LLC on Ultra, it gives it a little extra headroom just in case it needs it. There's no use running a fixed voltage at 1600MHz or 4700MHz. Just a thought



[Solarstarshines]

You can still have a good range with an offset, and with LLC on Ultra, it gives it a little extra headroom just in case it needs it. There's no use running a fixed voltage at 1600MHz or 4700MHz. Just a thought

It doesn't idle down even though speedstep is on

it's a locked OC it once in a while idles but I barley give it a chance too

once you pass the initial Boost limit the oc should be locked there anyway anything above 3.9 that is I could use a offset of 10 but I don't want to see all that flexing either



[essenbe]

Tommy, voltage doesn't idle down at 1600 because you are on manual voltage. If you were on offset, it would. I use manual to find the voltage for an overclock and then convert it to offset the way I and Kelly told you, with the VID from Core Temp.



[Solarstarshines]

Tommy, voltage doesn't idle down at 1600 because you are on manual voltage. If you were on offset, it would. I use manual to find the voltage for an overclock and then convert it to offset the way I and Kelly told you, with the VID from Core Temp.

Ok so if i am on manual now and go offset will my voltage still be there ?

to be honest it's hard to tell what is a good offset to apply for my 1.270 voltage

I guess it's time to get down and dirty rolling up sleeves



[Solarstarshines]

I just read that someone using offset compared to manual uses more voltage and most likely to crash because it needs more

I don't have any sleep states on just C3 as I keep reading about these chips there are a few combinations that allow low voltage but the CPU has to be fixed volts which was said makes no difference on the longevity of the CPU

So I am wondering if doing offset would make my volts go higher then they are now



[essenbe]

Run Prime and while it is running watch your Voltage and the VID on core temp. When tou have run it for just a little while, CPU voltage - VID = Offset. It may be +/-.



[essenbe]

C states on Manual should be on, C states on offset should be off. That was in the guide both Me and Kelly posted for you.

EDIT: When you use Manual Voltage it is very close to what voltage you set is the voltage you will get, whether on idle or running Prime. When you use Offset, it allows the voltage to move around a lot. No since running 1.3V while idling on the desktop, so it will drop, usually to below 1V, when you run Prime it will jump up, depending on what the CPU is calling for, but the swings can be a little higher or lower than needed. That's why for a high overclock, I always use manual, I have control of it. For my every day overclock, I find the right offset and use that. Right now I run at 4.5 every day and an offset of -.045. I only have that offset because my CPU stinks and my VID is way high.
