Solved PSU and GPU Upgrade Options

[TechJargonOnly]

I want to upgrade my graphics card and power supply, but am unsure of what products to buy. After some searching online, I found two decent PSUs in my price range (<$100):
SeaSonic M12II 620 Bronze 620W

Rosewill HIVE Series HIVE-750 750W

And two very similar graphics cards, but with different prices and dimensions, also in my price range (<$200):
EVGA SSC 02G-P4-3653-KR GeForce GTX 650 Ti

EVGA 02G-P4-3658-KR GeForce GTX 650 Ti BOOST

I am uncertain as to which models to buy, and concerned about the dimensions of the units, since I have a stock case that is fairly small (my current PSU has a depth of 5.5in, compared to 6.3 of the other ones, and there is not much room for a large GPU). If anyone could provide some insight on whether the items I've selected will fit in my case, or if they're of any reasonable quality, I would greatly appreciate the advice. Alternatively, I am also open to suggestions for other options.

*If possible, please make any suggestions on the Rosewill PSU ASAP, since the promotional offer for the product ends on Nov.12th.



[madcratebuilder]

I have built two boxes using Rosewill psu's, they have been fine. Newegg has a 30 return as long as you have all the original packaging. As far as the gpu's I would go with the Ti Boost model.



[Britton30]

The case should have a standard PSU mount. Measure if you have the extra inch or so to fit a standard sixe PSU in. The Rosewill is built by ABS Computer Technologies Inc., I've not heard of them, but may be OK. Seasonic is a top notch brand and reliable.

Either GPU should work. See how much room in length you have and check their dimensions. I have a 650Ti Boost from ASUS and it's a nice one.



[TechJargonOnly]

The case should have a standard PSU mount. Measure if you have the extra inch or so to fit a standard sixe PSU in. The Rosewill is built by ABS Computer Technologies Inc., I've not heard of them, but may be OK. Seasonic is a top notch brand and reliable.

Either GPU should work. See how much room in length you have and check their dimensions. I have a 650Ti Boost from ASUS and it's a nice one.

Thanks for the reply. I think I'll go with the Seasonic one, and check my case for the Ti Boost dimensions.



[N00berG00ber]

you don't need a 600W PSU for a 650ti
I was fine with a 500W PSU gtx 660 6350 OC 4.6 and all other stuff like water cooler, HDD, fans, etc



[AddRAM]

If you`re gonig to get an EVGA card, go directly to EVGA to purcahse ( if possible in CA ) no tax, and shipping is dirt cheap.

http://www.evga.com/Products/Produc...ce+600+Series+Family&chipset=GTX+650+Ti+BOOST

I would go with the Seasonic PSU.



[Britton30]

With PSUs I think it's much better to have more than you need, than to need more and not have it. Crap I have a 850W but need only about 460 or so, leaves room for a lot of upgrading.

As to tax, in the US etailers charge it for shipments to any state where they have a presence, like another warehouse. Newegg has them in CAL, NJ, Amazon has them in several states.



[N00berG00ber]

With PSUs I think it's much better to have more than you need, than to need more and not have it. Crap I have a 850W but need only about 460 or so, leaves room for a lot of upgrading.

As to tax, in the US etailers charge it for shipments to any state where they have a presence, like another warehouse. Newegg has them in CAL, NJ, Amazon has them in several states.

I hate when my stuff get shipped from NJ. hate the stupid tax. but on the other hand, shipping is usually 2 days

as far as the PSU, ya agreed, its good to have more than you need, but on the other hand, it better to get a lower wattage but better quality one rather than a higher wattage worse quality one. I always recommend the corsair CX500 or CX500M PSU's. its a great PSU



[Solarstarshines]

you don't need a 600W PSU for a 650ti
I was fine with a 500W PSU gtx 660 6350 OC 4.6 and all other stuff like water cooler, HDD, fans, etc

General rule of thumb always get more then you need when a PSU is involved

they tend to have degradation over time which efficiency goes down over time

better to get the 650 to 700w like you wanted and in the long run you get a powerful card you will already be set



[AddRAM]

The Ti Boost is 9.5 inches long, if it`ll fit I would go with that card.

It would also help if you added your motherboard to your specs.



[TechJargonOnly]

The Ti Boost is 9.5 inches long, if it`ll fit I would go with that card.

It would also help if you added your motherboard to your specs.

Sorry, I don't know the name of the motherboard, and can't seem to find anything online. The 9.5in length of the Ti Boost is a difficult issue, as there does not appear to be much room in the case. I'll measure the available space inside tomorrow.


Also, EVGA is out of stock for the Ti Boost 2GB Superclocked.

EDIT: I checked the EVGA shipping price, and it came up as $47.76...



[AddRAM]

The stock clocked version will serve you just fine.

http://www.evga.com/Products/Product.aspx?pn=02G-P4-3657-KR

Are you sure that shipping quote is correct ?

You could also use Tigerdirect.com

http://www.tigerdirect.ca/applications/SearchTools/item-details.asp?EdpNo=7876676&CatId=7387


Here is a great price for the Corsair HX850

HX Series HX850 Power Supply ? 850 Watt 80 PLUS® Gold Certified Modular PSU (Refurbished) - HX Series - Power Supply Units

Although it says Refurbished, I doubt there`s anything wrong with it, Corsair gives a 7 year warranty.



[TechJargonOnly]

The stock clocked version will serve you just fine.

EVGA | Products | EVGA GeForce GTX 650 Ti BOOST | 02G-P4-3657-KR

Are you sure that shipping quote is correct ?

You could also use Tigerdirect.com

Buy the EVGA GeForce GTX 650Ti BOOST Video Card at TigerDirect.ca


Here is a great price for the Corsair HX850

HX Series HX850 Power Supply ? 850 Watt 80 PLUS® Gold Certified Modular PSU (Refurbished) - HX Series - Power Supply Units

Although it says Refurbished, I doubt there`s anything wrong with it, Corsair gives a 7 year warranty.

The shipping quote was correct, $47.76 for UPS Worldwide ground expedited to Canada, BC...
That HX850 PSU looks great, but I'm not sure if I have room for the 7.8in length in my case.

The TigerDirect suggestion would actually cost approximately the same amount, since the $21 in tax and $3 shipping fee for the NewEgg offer accounts for the ~$25 higher price anyways.



[TechJargonOnly]

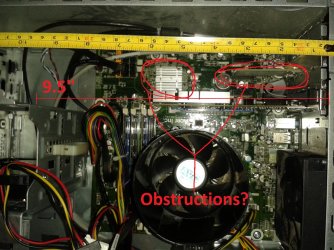

Well, I measured the case in my space, and it appears that the card and PSU will fit in length, but I have some doubts. Namely, whether the card will fit in width, since it is a double slot card, and there are obstructions beside the slot. Also, the extra 2cm for the PSU might be a very tight fit in beside the drives.

I've attached a photo of what the interior looks like, with measuring tape for reference. I'll upload another picture with the PSU space later, as well.

Nevermind the obstructions , the one on the upper right is just a wifi adapter, which I can remove, and the metal ridges appear to be level with the slots.

Looks like it's all clear for both items, thanks for your help, guys.



[kbrady1979]

Since you are in Canada, look at NCIX for parts.



[Britton30]

The PSU should fit fine, a new one is likely about 7mm longer than your current one. Is the 2nd pic upside down? I can't see a PCIe X16 slot.

There's Newegg in Canada too, Amazon too.



[TechJargonOnly]

The PSU should fit fine, a new one is likely about 7mm longer than your current one. Is the 2nd pic upside down? I can't see a PCIe X16 slot.

There's Newegg in Canada too, Amazon too.

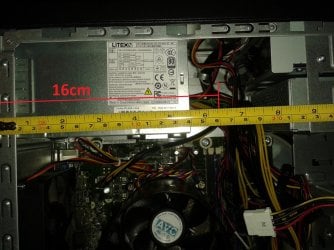

Sorry, the second picture is the power supply (the upper portion of my case), and the first one is the space available along the GPU slot. You can't see the PCIe X16 slot, because my card is still in it. The card I'm planning on buying has a length of 9.5'', and the power supply has a length of 16cm, which I've marked in red in each respective image.



[TechJargonOnly]

Thanks for all of the help, everyone, I've put the order through for the EVGA 650ti Boost 2GB Superclocked and the Seasonic M12II 620W. The total was $285.61 CAD with tax and shipping fees, so I figure I didn't do too badly.



[Britton30]

Sounds like a good price, let us know how it goes.



[TechJargonOnly]

Sounds like a good price, let us know how it goes.

Thanks! I really appreciate the help.
