Ran chkdsk, selected incorrect bootup on red screen

S

Sawtower

New member
Local time
11:55 AM
Messages
10
Hello and thanks in advance for taking time to help here.
I ran a chkdsk function, completed it, a red screen with several selections of different windows bootup options in dos format came up and I selected the (default) instead of what the cursor had selected. Now I'm stuck on a black screen with a blinking white cursor in the top left corner. Is there a way to get back to that red screen and select the proper option? Thank you kindly again for your time.


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Build
OS
Windows 7 64 bit
CPU
Xeon
Memory
12 gig

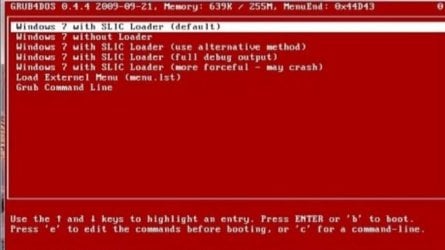

In doing research I found what the red screen looks like online. Pic attached.


Attachments

  • 20191221_203402.jpg
    25.9 KB · Views: 8

My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Build
OS
Windows 7 64 bit
CPU
Xeon
Memory
12 gig
Welcome to the Forum

The image you showed is from Grub boot loader. Do you have or had Linux on your computer?


My Computers My Computers

System One System Two

  • Computer type
    PC/Desktop
    Computer Manufacturer/Model Number
    custom build
    OS
    Windows 7 HP 64
    CPU
    i5 6600K - 800MHz to 4200MHz
    Motherboard
    GA-Z170-HD3P
    Memory
    4+4G GSkill DDR4 3000
    Graphics Card(s)
    IG - Intel 530
    Monitor(s) Displays
    Samsung 226BW
    Screen Resolution
    1680x1050
    Hard Drives
    (1) -1 SM951 – 128GB M.2 AHCI PCIe SSD drive for Windows 7 and Lubuntu
    (2) -1 WD SATA 3 - 1T for Data
    (3) -1 WD SATA 3 - 1T for backup
    PSU
    Thermaltake 450W TR2 gold
    Keyboard
    Old and good Chicony mechanical keyboard
    Mouse
    Logitech mX performance - 9 buttons (had to disable some)
    Internet Speed
    500Mb/s
    Browser
    Firefox 64
    Other Info
    TinyWall firewall
  • Computer type
    Laptop
    System Manufacturer/Model Number
    Asus Q550LF
    OS
    Windows 7 Pro
    CPU
    i7-4500U 800MHz to 3.0GHz
    Motherboard
    Asus Q550LF
    Memory
    (4+4)G DDR3 1600
    Graphics Card(s)
    IG intel 4400 + NVIDIA GeForce GT 745M
    Sound Card
    Realtek
    Monitor(s) Displays
    LG Display LP156WF4-SPH1
    Screen Resolution
    1920 x 1080
    Hard Drives
    BX500 120G SSD for Windows and programs +
    1T HDD for data
    Internet Speed
    500 Mb/s
    Browser
    Firefox
    Other Info
    TinyWall firewall
Thank you. The gentleman I purchased the PC from a while back did mention he had linux on some part of the drive at one time. I receive Windows updates all the time so I dont believe it's there for piracy purposes. Do you know how to get back to that screen?


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Build
OS
Windows 7 64 bit
CPU
Xeon
Memory
12 gig
Ok I found that if I wait a while the screen pops up when trying to boot. Do you know which option I should choose?I've tried the 1st two so far


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Build
OS
Windows 7 64 bit
CPU
Xeon
Memory
12 gig
Hi

suspect their all non-genuine based on that screenshot, a genuine W7 does not need a SLIC table loader

Roy

note
W7 retail/system builder have the COA sticker attached to the install media


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
medionl/Aspire 6930G/acer x55a
OS
W7 home premium 32bit/W7HP 64bit/w10 tp insider ring
CPU
E5300 dual core
Motherboard
medion MS7366
Memory
3gb
Graphics Card(s)
Nvidia Geforce 7100 Nforce 630i
Monitor(s) Displays
avixc
Internet Speed
n (isp resticted to 72)
Antivirus
mse/pands
Browser
palemoon
Other Info
Belkin Fd7050 n USB using Railink RT2870 drivers, more upto date
I've received Windows 7 updates from windows continuously over the last 2 years. The man I purchased the PC from assured me the Windows install was legitimate. This is a rebuild workhorse PC. In tinkering around some I've gotten to this screen.


Attachments

  • 20191222_112456.jpg
    178.2 KB · Views: 2
  • 20191222_134600.jpg
    528.4 KB · Views: 2

My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Build
OS
Windows 7 64 bit
CPU
Xeon
Memory
12 gig
Man, sorry for the horrible quality of those pics. Any guidance is greatly appreciated


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Build
OS
Windows 7 64 bit
CPU
Xeon
Memory
12 gig
Megahertz07 said:
Welcome to the Forum

The image you showed is from Grub boot loader. Do you have or had Linux on your computer?
Click to expand...

Hi Mega,

If you look carefully at the photo, you can see that it is actually GRUB4DOS (in top left-hand corner), and not related to GRUB or GRUB2.


My Computer My Computer

Computer type
PC/Desktop
OS
Windows 7 x64, Vista x64, 8.1 smartphone
CPU
Intel E8400 65W 64-bit
Motherboard
Gigabyte EP45-UD3LR
Memory
DDR2 2 x 2GB, 1GB x 2
Graphics Card(s)
XFX Radeon HD5750
Sound Card
AMD High Definition Audio; Realtek High Definition Audio
Monitor(s) Displays
iiyama prolite X2377HDS
Screen Resolution
1920 x 1080
Hard Drives
500GB 7200 rpm Seagate ST3500413AS 16MB, 500GB 5400 rpm Toshiba MQ02ABF050H 32MB, 200GB 7200 rpm Seagate ST3200820AS 8MB, 2TB 7200 rpm Western Digital WD20EZRX 64MB
PSU
Enermax Liberty Modular
Case
Antec P193 Midi Tower
Keyboard
Mionix ZIBAL 60
Mouse
Razer USB 2.0 Diamondback Mouse or Huion Graphics Tablet
Browser
Internet Explorer, Lunascape, Firefox, Opera, Avast Safezone
Sawtower said:
Man, sorry for the horrible quality of those pics. Any guidance is greatly appreciated
Click to expand...

You can reach the Boot Manager by pressing F8 key continuously, just after BIOS screen, just before Windows logo screen.

Take a picture of the Boot Manager so we can see what we are dealing with.


My Computer My Computer

Computer type
PC/Desktop
OS
Windows 7 x64, Vista x64, 8.1 smartphone
CPU
Intel E8400 65W 64-bit
Motherboard
Gigabyte EP45-UD3LR
Memory
DDR2 2 x 2GB, 1GB x 2
Graphics Card(s)
XFX Radeon HD5750
Sound Card
AMD High Definition Audio; Realtek High Definition Audio
Monitor(s) Displays
iiyama prolite X2377HDS
Screen Resolution
1920 x 1080
Hard Drives
500GB 7200 rpm Seagate ST3500413AS 16MB, 500GB 5400 rpm Toshiba MQ02ABF050H 32MB, 200GB 7200 rpm Seagate ST3200820AS 8MB, 2TB 7200 rpm Western Digital WD20EZRX 64MB
PSU
Enermax Liberty Modular
Case
Antec P193 Midi Tower
Keyboard
Mionix ZIBAL 60
Mouse
Razer USB 2.0 Diamondback Mouse or Huion Graphics Tablet
Browser
Internet Explorer, Lunascape, Firefox, Opera, Avast Safezone
F8 doesn't seem to bring anything up.
F9 provides a "boot menu"


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Build
OS
Windows 7 64 bit
CPU
Xeon
Memory
12 gig
F8 doesn't seem to provide anything.
F9 provides a boot menu which gives different options to boot from. (Optical drive, hard drive etc


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Build
OS
Windows 7 64 bit
CPU
Xeon
Memory
12 gig
I can get to this.


Attachments

  • 2019-12-22 18.29.15.jpg
    2019-12-22 18.29.15.jpg
    359 KB · Views: 0

My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Build
OS
Windows 7 64 bit
CPU
Xeon
Memory
12 gig
I wonder if there's a boot disk choice in Advanced.


My Computer My Computer

Computer type
Laptop
Computer Manufacturer/Model Number
Dell M6500 Precision Work Station
OS
Windows 7 Pro SP1 64 bit
Memory
8 GB
Screen Resolution
1920x
Internet Speed
30 Mbps
Antivirus
Norton Security
Browser
IE 11

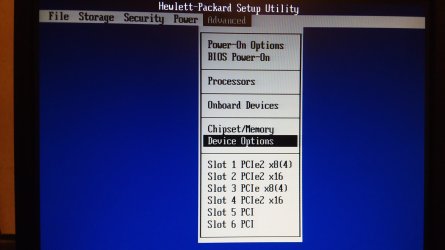

Here are the advanced options


Attachments

  • 2019-12-22 20.20.22.jpg
    2019-12-22 20.20.22.jpg
    292.9 KB · Views: 0

My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Build
OS
Windows 7 64 bit
CPU
Xeon
Memory
12 gig
Open the Storage tab. There should be a Boot Order option. What is shown there?


My Computer My Computer

Computer type
Laptop
Computer Manufacturer/Model Number
Dell M6500 Precision Work Station
OS
Windows 7 Pro SP1 64 bit
Memory
8 GB
Screen Resolution
1920x
Internet Speed
30 Mbps
Antivirus
Norton Security
Browser
IE 11
Did you get any Windows install or repair or recovery DVDs from the party you bought the computer from?


My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Antec desktop; Acer Aspire laptops
OS
Windows 7 Professional 64-bit
CPU
Desktop i5; Acers i5 & i7
Memory
desktop 16GB; 1 Acer 8GB & 1 Acer 16GB
Hard Drives
1TB split into 2 equal partitions [OS and data] usable by RJS
Internet Speed
AT&T DSL
Browser
FF, GChrome, msIE
Other Info
Windows 7 Firewall, Emsisoft AM/AV, MSE [scan-only], SpywareBlaster, Ruiware/BillP combine
wither 2 said:
Open the Storage tab. There should be a Boot Order option. What is shown there?
Click to expand...

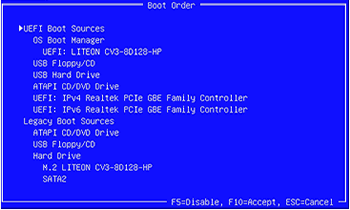

That's the option. Select the "OS Boot Manager".


Attachments

  • boot order.gif
    boot order.gif
    29.9 KB · Views: 4

My Computer My Computer

Computer type
PC/Desktop
Computer Manufacturer/Model Number
Custom Built By Me.
OS
Windows 10 Pro 64 bit
CPU
AMD FX 9590 8 Core Black Edition
Motherboard
MSI 990FXA GAMING (MS-7893)
Memory
Corsair Vengeance 16GB DDR3
Graphics Card(s)
AMD Radeon (TM) R9 380 Gaming Series
Sound Card
AMD High Definition
Monitor(s) Displays
Samsung 32" 60Hz 4ms Curved PLS LED
Screen Resolution
1920 X 1080
Hard Drives
C: 223 GB SSD = E: 465 GB HDD = F: 931 GB HDD = G: 149 GB HDD = H: 931 GB HDD
PSU
EVGA Supernova NEX750B 750W ATX EPS12V 80PLUS Bronze
Case
Cool Master
Cooling
Noctua NH-D15 Premium Cooler with 2x NF-A15 PWM 140mm Fan
Internet Speed
Fiber Optic: Download 332.7 Mbps / Upload 331.5 Mbps
Antivirus
Windows Defender
Browser
Slimjet (64bit)
Is there a Legacy Boot Sources option there and is the hard drive selected as the first boot option?


My Computer My Computer

Computer type
Laptop
Computer Manufacturer/Model Number
Dell M6500 Precision Work Station
OS
Windows 7 Pro SP1 64 bit
Memory
8 GB
Screen Resolution
1920x
Internet Speed
30 Mbps
Antivirus
Norton Security
Browser
IE 11
