Show Us Your Rig [3]

[StalkeR]

Excellent peaceful !



[linnemeyerhere]

Peaceful,
Those are two crazy nice rigs. I can't image the thought and design that went into the big i7 rig ! Welcome to SevenForums we'll enjoy having you aboard !



[peaceful]

Excellent peaceful !

Peaceful,
Those are two crazy nice rigs. I can't image the thought and design that went into the big i7 rig ! Welcome to SevenForums we'll enjoy having you aboard !

Thank guys 4 the comment ... I really enjoy this Win7 Forums and the hospitality of all members as well.



[ganjiry]

welcome peacefull proppa nice lookin rigs. nice1



[peaceful]

welcome peacefull proppa nice lookin rigs. nice1

Hai ... ganjiry thank u.

I'm adding more picts of my 2nd system with a better shot.

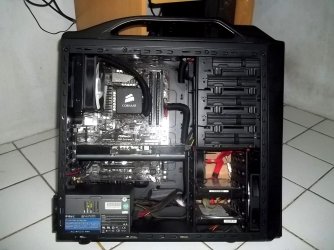

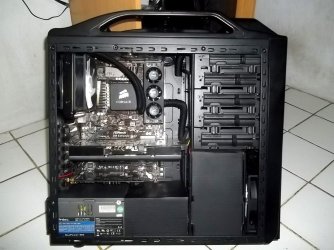

Before & after covering hdd cage.



[pparks1]

Peaceful, I like your second system, the black one in the CM Scout case. I'm all about simplicity.



[linnemeyerhere]

It's amazing how vastly improved today's cases are from just a few years back. The right pass thru design makes such a huge difference, as well when you can turn the HDD tray to it's side and have power and sata connect from behind the mobo is also huge for clean layouts. Then lastly the PSU and HDD valances are a nice finishing touch so you direct air flow and hide wires from eyes. Real Nice Work ! I've got to save for a new case......got to save!



[A Guy]

welcome peacefull proppa nice lookin rigs. nice1

Hai ... ganjiry thank u.

I'm adding more picts of my 2nd system with a better shot.

Before & after covering hdd cage.

And adding Memory cooler

A Guy



[IownAmoneyPit]

Recently I had purchased a Logitech 910 web cam and decided to test it out by taking some better pictures of my rig originally posted in "Show us your rig 2".

Since then I also added front USB 3 ports that were purchased through the Coolermaster store for a HAF 932 case and decided to remove the TV card as I am not using it.

Re-posting parts of the original post with updated pics

I built my rig in March of 2011 and was my first time building a Computer using the knowledge and contributions of other members here plus researching manufacturers sites for hardware.

It is a sandybridge based rig and it is running great. The only major hiccup was a DOA Evga 570 HD Video card but the retailer replaced it with the Asus card.

OS Windows 7 Professional
CPU Intel i7 2600K @ 3.40 GHz
Motherboard ASUS Sabertooth P67
Memory Corsair Vengeance 16GB DDR3 1600MHz CL9 Dual Channel Kit
Graphics Card Asus ENGTX570 GeForce GTX 570 1280MB GDDR5 PCI-E w/ Dual DVI
Monitor Sharp 42" LCD TV ( 5 HDMI and VGA inputs )
Keyboard Logitech Gaming Keyboard G110
Mouse Microsoft Confort Optical Mouse 3000
PSU Corsair TX 850W Power Supply w/ 140mm Fan
Case Cooler Master HAF 932 High Air Flow Full Tower Chassis
Cooling Zalman CNPS10X FLEX CPU Cooler & 2 Thermalright Silent Fans
Hard Drives Intel SSD 510 Series SATA III Solid State Drive, 120GB
Blu Ray Writer LG Super Multi Blue Internal Blu-ray Disk Rewriter - BH10LS30
TV Card Hauppauge - HVR 1800 Media Center Kit - NTSC and ATSC TV Tuner
Media Card Reader Kama Reader 2, 45-in-1 Card Reader

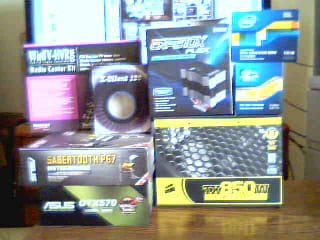

Parts & Top 230mm Fan

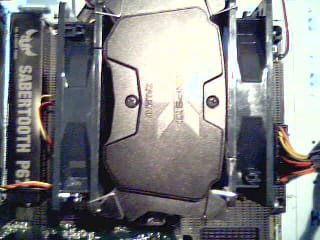

CPU Cooler & Memory



Internals & L Side behind mobo

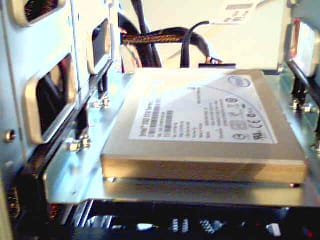

Solid State Drive,Power Supply & Video Card

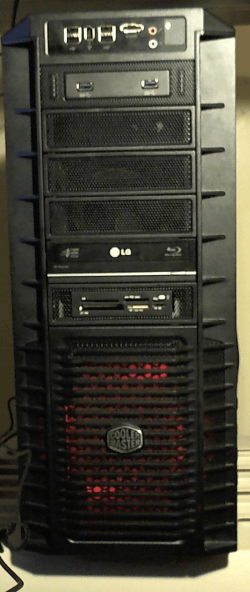

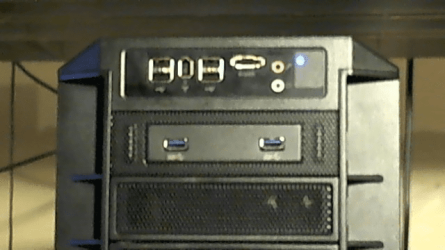

Front USB 3 ports, Blu Ray & Card reader



R Side Fan & Front

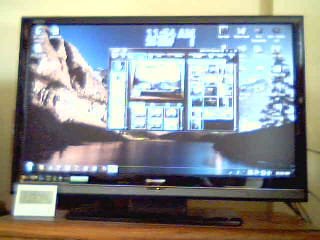

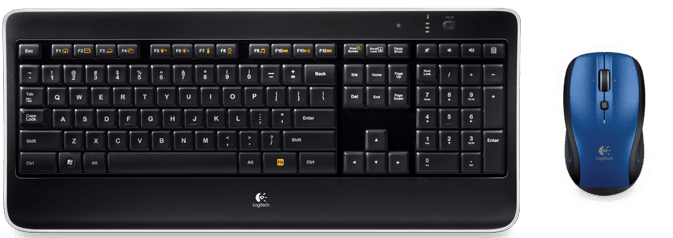

Wireless Keyboard / Mouse & Sharp 42"in TV



WEI & SSD benchmark, wishing SSD was really 1559 GB



[Dave76]

Nice rig IownAmoneyPit, looks great.



[JaidynM]

Peaceful, I like your second system, the black one in the CM Scout case. I'm all about simplicity.

+1

Nice rig, mate!



[StalkeR]

Very nice IownAmoneyPit, congrats on the rig !



[A Guy]

Great Rig Rob

A Guy



[IownAmoneyPit]

Nice rig IownAmoneyPit, looks great.

Very nice IownAmoneyPit, congrats on the rig !

Great Rig Rob

A Guy

Thank's all at least now I know the webcam works pretty good as there is a noticeable difference between the old and new pictures also pictures woud look better in daylight.

Last but not least that 1559 GB hard drive for the price of an Intel 510 120 GB can't be beat.



[DaveUK]

Again I have done some upgrades



[StalkeR]

That CM case looks very nice!



[vierasniper]

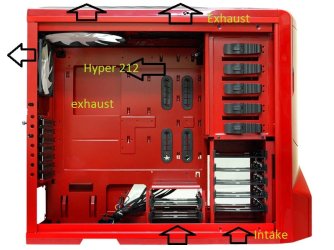

Can anyone tell me how to position the fans, to help prevent dust gathering? the only 2 fans i have for intake have a filter. im sure there is some kind of scientific way to go about this. the picture below is my current set up. (please excuse the MS paint mock up)



[ganjiry]

Can anyone tell me how to position the fans, to help prevent dust gathering? the only 2 fans i have for intake have a filter. im sure there is some kind of scientific way to go about this. the picture below is my current set up. (please excuse the MS paint mock up)

View attachment 196282

you have it pretty sorted already .fromt intake, rear/top exsaust. just keep ur filters clean n you'll b ok. i take mine out once a month to clean em. i get a tiny amount of dust in my case



[peaceful]

Any of you wanna comment on my rig with a mild touch ... any feedback will be appreciated.



[Alsisgevat]

It's so clean...I can't look away....:drool:


Well done!!
