Show Us Your Winsat GPU

[ZaLiTH]

In the interest of feeding the collective monster, I'm curious to see how well our different GPU setups perform.. Since the majority of systems hit the 7.9 limit so easily these days, the only real way to compare them, is to look at the raw values.

The How..

Open an elevated command prompt (standard cmd should be fine if you have UAC turned off) and run the following command:

winsat d3d

Once the tests complete, simply drop your results in a reply below.

Important Details..

The "F/s" unit of measure is the frames per second achieved during the specific test. As such, this should tie in quite nicely with determining how well a specific setup can handle different types of GPU functionality.

Hopefully this will serve as more than a simple comparison thread, it may even grow into a resource to assist users in finding a GPU that will better serve their requirements (CAD, gaming, video, etc..).

Let The Games Begin..

To start it off, here's my scores with a two-way GTX 660Ti SLI setup:



[paulpicks21]

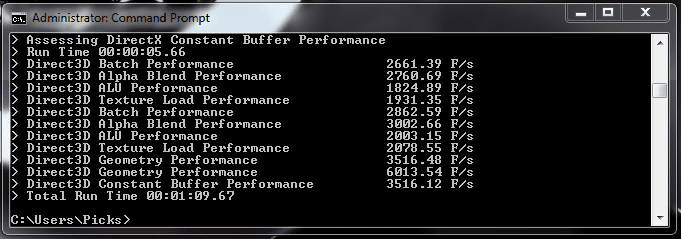

Hello mate, here is my GTX 780 at stock.



[A Guy]

Some additional parameters

winsat d3d

Now the other end of the spectrum



A Guy



[smarteyeball]

Please note: I do not actually know what the "F/s" unit of measure is,

Frames per Second.



[ganjiry]

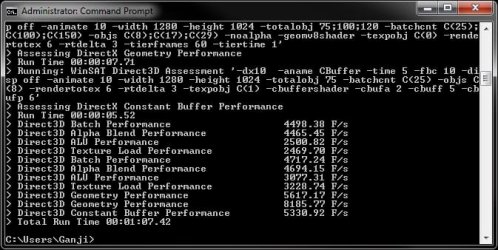

Here you go


The first time I've heard any coil whine on my rig was while running this.



[ZaLiTH]

Please note: I do not actually know what the "F/s" unit of measure is,

Frames per Second.

Could it really be that simple...? I can only assume so, since I can't find any clear (aka technical) explanations online.

Here you go


The first time I've heard any coil whine on my rig was while running this.

Looks like that GTX 780 OC is a bit of a monster hey..



[ganjiry]

Looks like that GTX 780 OC is a bit of a monster hey..

Yeah it looks like Sli helps a bit in this test



[Lava King]

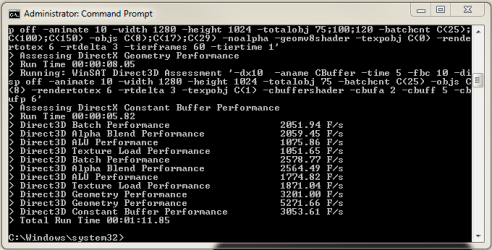

Here's mine, CPU overclocked, GPU stock.



[Dude]

Not sure why I only get scores for the first 4 :huh:



[Wrend]

Here are my results for my Titan Blacks:



[ZaLiTH]

Interesting to see the Titan vs 780 in SLI.. Hopefully sometime within the next month or so I'll be able to add a 780Ti SLI setup to the mix as well.



[Phill3990]

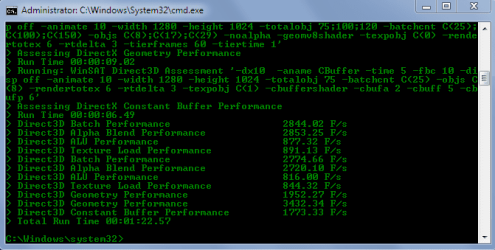

GeForce GTX660 @ Stock



Will be getting a new GPU sone though ;D



[andrew129260]

Here is mine, which pales in comparison. Asus HD 7870 2GB GDDR5 GHZ edition

But I'm happy with my vid card-stock Maybe a year 1/2 from now or so I will upgrade.



[Layback Bear]

Running stock Asus GTX 770 Direct CUII OC.


> Run Time 00:00:07.82
> Running: WinSAT Direct3D Assessment '-dx10 -aname GeomV8 -tim
idth 1280 -height 1024 -totalobj 75;100;120 -batchcnt C(25);C(10
alpha -geomv8shader -texpobj C(0) -rendertotex 6 -rtdelta 3 -tie
> Assessing DirectX Geometry Performance
> Run Time 00:00:07.57
> Running: WinSAT Direct3D Assessment '-dx10 -aname CBuffer -ti
width 1280 -height 1024 -totalobj 75 -batchcnt C(25) -objs C(8)
(1) -cbuffershader -cbufa 2 -cbuff 5 -cbufp 6'
> Assessing DirectX Constant Buffer Performance
> Run Time 00:00:05.41
> Direct3D Batch Performance 1145.83 F/s
> Direct3D Alpha Blend Performance 1130.39 F/s
> Direct3D ALU Performance 762.49 F/s
> Direct3D Texture Load Performance 763.49 F/s
> Direct3D Batch Performance 2140.41 F/s
> Direct3D Alpha Blend Performance 2106.97 F/s
> Direct3D ALU Performance 1267.91 F/s
> Direct3D Texture Load Performance 1461.63 F/s
> Direct3D Geometry Performance 2773.51 F/s
> Direct3D Geometry Performance 4615.25 F/s
> Direct3D Constant Buffer Performance 2426.40 F/s
> Total Run Time 00:01:11.39
